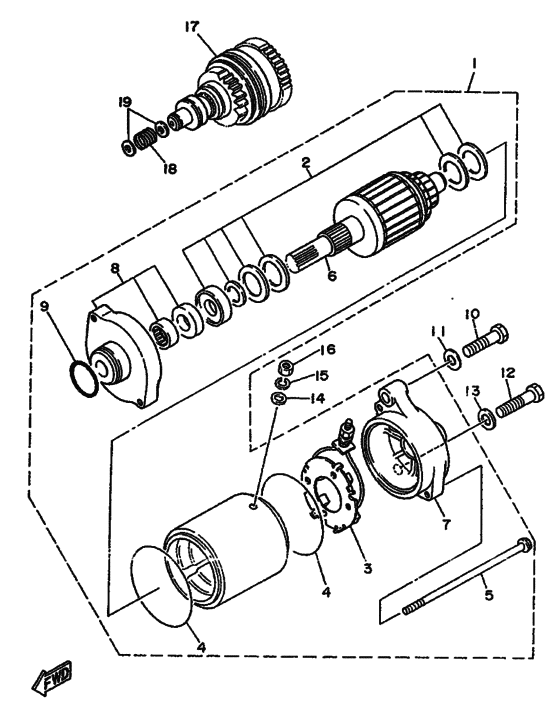

Starting motor Diagram Yamaha WR650
- Model code
- FK7
- Engine Capacity
- 650
- Year
- 1989
- Sales region
- Europe (999)
- Colour
- Metallic Marine Silver (MMS; 00EK)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6M6-81800-00-00 Starting Motor Assy |
6M6-81800-00-00 |
from US $604.22 |
||
| replacement | |||||
|
1
|
1
6M6-81800-10-00 Starting Motor Assy |
6M6-81800-10-00 |
from US $637.85 |
||
|
2
|
2
3AJ-81809-00-00 Washer Kit |
3AJ-81809-00-00 |
from US $7.36 |
||
|
3
|
3
6M6-81840-00-00 Brush Holder Assy |
6M6-81840-00-00 |
from US $116.47 |
||
| replacement | |||||
|
3
|
3
6M6-81840-10-00 Brush Holder Assy |
6M6-81840-10-00 |
from US $97.62 |
||
|
4
|
4
11H-81844-00-00
Gasket
|
11H-81844-00-00 |
— | ||
| replacement | |||||
|
4
|
4
35C-81844-00-00 Gasket |
35C-81844-00-00 |
from US $20.97 |
||
|
5
|
5
6M6-81826-00-00 Bolt |
6M6-81826-00-00 |
from US $12.04 |
||
|
6
|
6
6M6-81850-00-00 Armature Assy |
6M6-81850-00-00 |
from US $568.92 |
||
|
7
|
7
6M6-81820-00-00 Rear Bracket Assy |
6M6-81820-00-00 |
from US $145.07 |
||
|
8
|
8
6M6-81330-00-00
Front Bracket Assy
|
6M6-81330-00-00 |
— | ||
|
9
|
9
26H-81847-00-00
O-Ring
|
26H-81847-00-00 |
— | ||
| replacement | |||||
|
9
|
9
932-10242-35-00 O-Ring |
932-10242-35-00 |
from US $3.04 |
||
|
10
|
10
97313-08040-00 Bolt, Hexagon |
97313-08040-00 |
US $5.29 |
||
| replacements | |||||
|
10
|
10
97014-08040-00 Bolt, Hexagon |
97014-08040-00 |
from US $2.35 |
||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
12
|
12
97313-08035-00 Bolt |
97313-08035-00 |
from US $3.01 |
||
| replacement | |||||
|
12
|
12
97013-08035-00 Bolt |
97013-08035-00 |
from US $4.53 |
||
|
13
|
13
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
14
|
14
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
15
|
15
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
15
|
15
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
16
|
16
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
16
|
16
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
17
|
17
6M6-8183E-00-00
Idle Gear Comp
|
6M6-8183E-00-00 |
— | ||
| replacement | |||||
|
17
|
17
6M6-8183E-01-00 Idle Gear Comp |
6M6-8183E-01-00 |
from US $504.68 |
||
|
18
|
18
90501-14M73-00 Spring, Compression |
90501-14M73-00 |
from US $6.24 |
||
|
19
|
19
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
