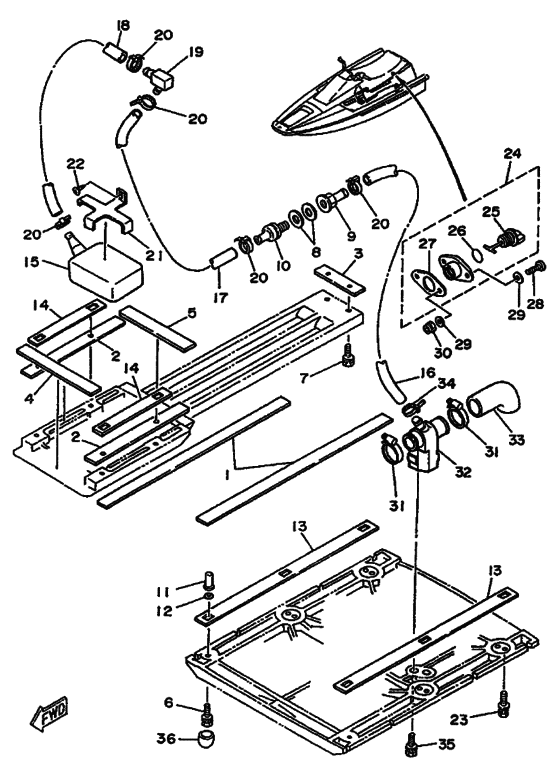

Hull & deck 2 Diagram Yamaha WR650
- Model code
- FK7
- Engine Capacity
- 650
- Year
- 1990
- Sales region
- Europe (999)
- Colour
- Metallic Marine Silver (MMS; 00EK)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
EU0-62284-00-00 Packing |
EU0-62284-00-00 |
US $9.22 |
||
| replacement | |||||
|
1
|
1
EU0-62284-01-00 Packing 3 |
EU0-62284-01-00 |
US $9.22 |
||
|
2
|
2
EU0-62284-30-00 Packing |
EU0-62284-30-00 |
from US $10.63 |
||
| replacements | |||||
|
2
|
2
EU0-62284-31-00 Packing 4 |
EU0-62284-31-00 |
from US $10.63 |
||
|
2
|
2
EU0-U2284-31-00 Packing 4 |
EU0-U2284-31-00 |
US $13.73 |
||
|
3
|
3
EU0-62284-40-00 Packing |
EU0-62284-40-00 |
US $10.63 |
||
| replacements | |||||
|
3
|
3
EU0-62284-41-00 Packing 5 |
EU0-62284-41-00 |
from US $10.12 |
||
|
3
|
3
EU0-U2284-41-00
Packing 5
|
EU0-U2284-41-00 |
— | ||
|
3
|
3
EU0-U2284-40-00
Packing
|
EU0-U2284-40-00 |
— | ||
|
4
|
4
EU0-62284-50-00
Packing
|
EU0-62284-50-00 |
— | ||
| replacements | |||||
|
4
|
4
EU0-62284-51-00 Packing 6 |
EU0-62284-51-00 |
US $4.23 |
||
|
4
|
4
EU0-U2284-51-00
Packing 6
|
EU0-U2284-51-00 |
— | ||
|
4
|
4
EU0-U2284-50-00
Packing
|
EU0-U2284-50-00 |
— | ||
|
5
|
5
EU0-62284-60-00
Packing
|
EU0-62284-60-00 |
— | ||
| replacements | |||||
|
5
|
5
EU0-62284-61-00 Packing 7 |
EU0-62284-61-00 |
US $4.23 |
||
|
5
|
5
EU0-U2284-61-00
Packing 7
|
EU0-U2284-61-00 |
— | ||
|
5
|
5
EU0-U2284-60-00
Packing
|
EU0-U2284-60-00 |
— | ||
|
6
|
6
90119-06915-00 Bolt, With Washer |
90119-06915-00 |
from US $4.68 |
||
| replacements | |||||
|
6
|
6
901-19069-29-00 Bolt, With Washer |
901-19069-29-00 |
from US $4.68 |
||
|
6
|
6
901-19068-96-00 Bolt, With Washer |
901-19068-96-00 |
from US $4.68 |
||
|
7
|
7
90119-06900-00 Bolt, With Washer |
90119-06900-00 |
from US $2.27 |
||
|
8
|
8
90430-13909-00 Gasket |
90430-13909-00 |
from US $1.90 |
||
|
9
|
9
90604-80759-00 Connection, Thru-Hull 1/41/4 |
90604-80759-00 |
from US $15.30 |
||
|
10
|
10
90604-80760-00
Connection, Thru-Hull 1/4
1/4 |
90604-80760-00 |
— | ||
|
11
|
11
90179-06935-00 Nut, Pop |
90179-06935-00 |
US $3.38 |
||
|
12
|
12
90201-09924-00
Washer
|
90201-09924-00 |
— | ||
|
13
|
13
EU0-67367-00-00 Plate, Stopper A (A) |
EU0-67367-00-00 |
from US $14.88 |
||
|
14
|
14
EU0-67367-30-00
Plate, Stopper B (B)
|
EU0-67367-30-00 |
— | ||
|
15
|
15
EU0-67613-00-00 Strainer |
EU0-67613-00-00 |
from US $29.84 |
||
| replacement | |||||
|
15
|
15
F4R-6761D-00-00 |
F4R-6761D-00-00 |
from US $37.99 |
||
|
16
|
16
90445-14M05-00 Hose |
90445-14M05-00 |
from US $7.37 |
||
|
17
|
17
90445-14M03-00 Hose |
90445-14M03-00 |
US $36.52 |
||
|
18
|
18
90445-14M04-00 Hose |
90445-14M04-00 |
from US $12.33 |
||
|
19
|
19
6K8-51162-00-00 Joint, Hose |
6K8-51162-00-00 |
from US $4.68 |
||
|
20
|
20
90465-13M11-00 Clamp |
90465-13M11-00 |
from US $1.70 |
||
| replacement | |||||
|
20
|
20
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
21
|
21
EU0-67618-00-00 Base |
EU0-67618-00-00 |
US $50.29 |
||
|
22
|
22
97780-50116-00 Screw, Tapping |
97780-50116-00 |
from US $1.52 |
||
|
23
|
23
90119-06914-00 Bolt, With Washer |
90119-06914-00 |
from US $3.26 |
||
|
24
|
24
EU0-62280-00-00 Drain Plug Assy |
EU0-62280-00-00 |
from US $43.24 |
||
|
25
|
25
EU0-62282-00-00 Plug, Drain |
EU0-62282-00-00 |
from US $3.26 |
||
|
26
|
26
EU0-62283-00-00 O-Ring |
EU0-62283-00-00 |
from US $1.28 |
||
|
27
|
27
EU0-62285-00-00 Packing, Drain |
EU0-62285-00-00 |
from US $5.10 |
||
| replacement | |||||
|
27
|
27
EU0-62285-01-00 Packing Drain (Eu0) |
EU0-62285-01-00 |
from US $5.10 |
||
|
28
|
28
98580-05020-00 Screw, Pan Head |
98580-05020-00 |
from US $1.56 |
||
|
29
|
29
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
30
|
30
95780-05300-00 Nut, M5 X 0.8 Nylon Lock |
95780-05300-00 |
from US $1.84 |
||
|
31
|
31
90460-18M08-00 Hose Clamp Assy |
90460-18M08-00 |
US $34 |
||
| replacement | |||||
|
31
|
31
90450-32097-00 Hose Clamp Assy |
90450-32097-00 |
from US $19.22 |
||
|
32
|
32
6K8-7610K-00-00 Body, Valve |
6K8-7610K-00-00 |
US $30.80 |
||
| replacement | |||||
|
32
|
32
6K8-7610K-01-00 Body,valve |
6K8-7610K-01-00 |
US $30.80 |
||
|
33
|
33
6K8-51141-00-00 Hose Suction |
6K8-51141-00-00 |
US $35.89 |
||
|
34
|
34
90465-13M11-00 Clamp |
90465-13M11-00 |
from US $1.70 |
||
| replacement | |||||
|
34
|
34
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
35
|
35
90119-06901-00 Bolt, With Washer |
90119-06901-00 |
from US $2.20 |
||
|
36
|
36
90190-06013-00 Cling |
90190-06013-00 |
US $6.14 |
||
