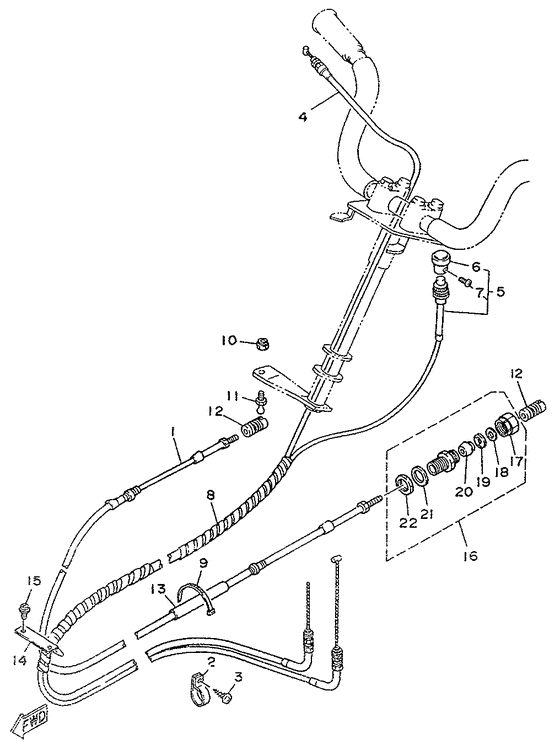

Control cable Diagram Yamaha WR650
- Model code
- FK7
- Engine Capacity
- 650
- Year
- 1989
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Silver (MMS; 00EK)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
EOU-61481-03-00
Cable, steering
|
EOU-61481-03-00 |
— | ||
|
02
|
02
90600-91728-00 Clamp |
90600-91728-00 |
from US $2.08 |
||
|
03
|
03
97780-50116-00 Screw, Tapping |
97780-50116-00 |
from US $1.52 |
||
|
04
|
04
EOU-67252-01-00
Cable, throttle
|
EOU-67252-01-00 |
— | ||
|
05
|
05
EOU-67242-02-00
Cable, choke
|
EOU-67242-02-00 |
— | ||
|
06
|
06
EOU-67243-00-00
Knob, choke
|
EOU-67243-00-00 |
— | ||
|
07
|
07
90149-03930-00 Screw |
90149-03930-00 |
from US $10.48 |
||
|
08
|
08
90699-36100-00 Spiral Tube |
90699-36100-00 |
from US $13.88 |
||
|
09
|
09
90601-20005-00 Band |
90601-20005-00 |
from US $1.98 |
||
|
10
|
10
95780-06300-00 P58 Nut, Nylon |
95780-06300-00 |
from US $4.11 |
||
|
11
|
11
EOU-61461-00-00
Stud, joint ball
|
EOU-61461-00-00 |
— | ||
|
12
|
12
EOU-61461-30-00
Stud, joint ball
|
EOU-61461-30-00 |
— | ||
|
13
|
13
EOU-61474-00-00
Pipe
|
EOU-61474-00-00 |
— | ||
|
14
|
14
EOU-61557-01-00
Guide, cable
|
EOU-61557-01-00 |
— | ||
|
15
|
15
97680-04316-00
Screw, W/washer
|
97680-04316-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
EOU-67267-00-00
Connector, cable
|
EOU-67267-00-00 |
— | ||
|
17
|
17
EOU-62694-00-00
Cap
|
EOU-62694-00-00 |
— | ||
|
18
|
18
EOU-61446-00-00
Washre 30
|
EOU-61446-00-00 |
— | ||
|
19
|
19
EOU-61486-00-00
Stopper
|
EOU-61486-00-00 |
— | ||
|
20
|
20
EOU-61435-00-00
Seal, pipe 30
|
EOU-61435-00-00 |
— | ||
|
21
|
21
EOU-61438-00-00
Packing
|
EOU-61438-00-00 |
— | ||
|
22
|
22
EOU-62241-30-00
Nut, drain
|
EOU-62241-30-00 |
— | ||
