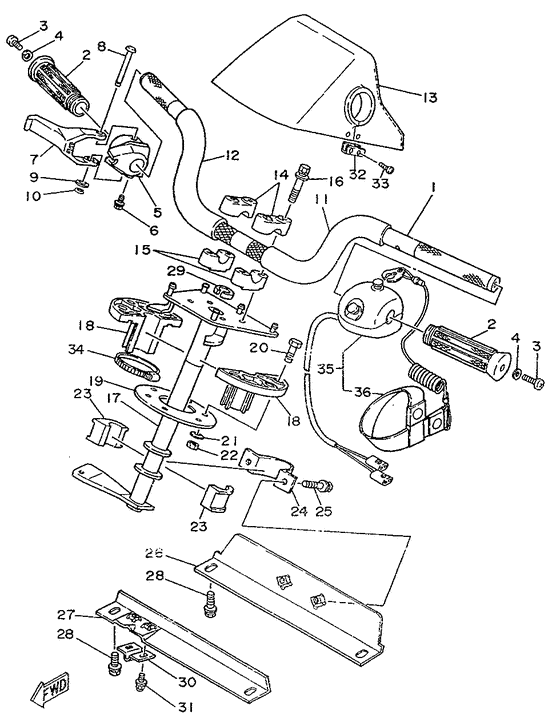

Steering Diagram Yamaha WR650
- Model code
- FK7
- Engine Capacity
- 650
- Year
- 1989
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Silver (MMS; 00EK)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
EOU-61552-02-00
Handle
|
EOU-61552-02-00 |
— | ||
|
02
|
02
EOU-26241-01-00
Grip (left)
|
EOU-26241-01-00 |
— | ||
|
03
|
03
98580-05020-00 Screw, Pan Head |
98580-05020-00 |
from US $1.56 |
||
|
04
|
04
90201-05912-00 Washer, Plate |
90201-05912-00 |
from US $1.28 |
||
| replacements | |||||
|
04
|
04
90201-05003-00 Washer |
90201-05003-00 |
from US $2.24 |
||
|
04
|
04
90201-05015-00 Washer, Plate |
90201-05015-00 |
from US $2.69 |
||
|
05
|
05
EOU-67254-00-00
Bracket
|
EOU-67254-00-00 |
— | ||
|
06
|
06
90159-05900-00 Screw, With Washer |
90159-05900-00 |
from US $2.27 |
||
|
07
|
07
81E-42138-00-00 Lever, Throttle |
81E-42138-00-00 |
US $32.54 |
||
|
08
|
08
EOU-61522-01-00
Pin
|
EOU-61522-01-00 |
— | ||
|
09
|
09
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
10
|
10
99080-04600-00 Circlip |
99080-04600-00 |
from US $1.66 |
||
|
11
|
11
EOU-61489-11-00
Tube
|
EOU-61489-11-00 |
— | ||
|
12
|
12
EOU-61489-21-00
Tube
|
EOU-61489-21-00 |
— | ||
|
13
|
13
EOU-61421-02-00
Pad, steering
|
EOU-61421-02-00 |
— | ||
|
14
|
14
EOU-23814-01-00
Holder, handle upper
|
EOU-23814-01-00 |
— | ||
|
15
|
15
EOU-23814-30-00
Holder, handle upper
|
EOU-23814-30-00 |
— | ||
|
16
|
16
90119-08905-00 Bolt, With Washer |
90119-08905-00 |
from US $3.82 |
||
| replacement | |||||
|
16
|
16
90119-08925-00 Bolt, With Washer |
90119-08925-00 |
US $3.82 |
||
|
17
|
17
EOU-61541-01-00
Column, steering
|
EOU-61541-01-00 |
— | ||
|
18
|
18
EOU-61417-00-00
Bearing, column
|
EOU-61417-00-00 |
— | ||
|
19
|
19
EOU-61439-01-00
Seal, rubber
|
EOU-61439-01-00 |
— | ||
|
20
|
20
97380-06030-00 Bolt |
97380-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
20
|
20
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
21
|
21
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
22
|
22
95780-06300-00 P58 Nut, Nylon |
95780-06300-00 |
from US $4.11 |
||
|
23
|
23
8F3-23812-00-00 Bearing, Steering |
8F3-23812-00-00 |
from US $7.49 |
||
|
24
|
24
EOU-61588-00-00
Joint, bearing
|
EOU-61588-00-00 |
— | ||
|
25
|
25
90119-08903-00 Bolt With Washer (Eu0) |
90119-08903-00 |
from US $3.49 |
||
|
26
|
26
EOU-61433-01-00
Bracket, bearing
|
EOU-61433-01-00 |
— | ||
|
27
|
27
EOU-61467-01-00
Bracket,stopper cable
|
EOU-61467-01-00 |
— | ||
|
28
|
28
90119-08903-00 Bolt With Washer (Eu0) |
90119-08903-00 |
from US $3.49 |
||
|
29
|
29
EOU-61469-00-00
Packing, steering column
|
EOU-61469-00-00 |
— | ||
|
30
|
30
EOU-61468-00-00
Stopper, cable
|
EOU-61468-00-00 |
— | ||
|
31
|
31
90119-06066-00 Bolt, With Washer |
90119-06066-00 |
US $15.46 |
||
| replacement | |||||
|
31
|
31
90119-06926-00 Bolt H/h W/w (Eu0) |
90119-06926-00 |
US $15.46 |
||
|
32
|
32
EOU-61422-00-00
Fix, steering pad
|
EOU-61422-00-00 |
— | ||
|
33
|
33
98586-04016-00 Screw, Pan Head |
98586-04016-00 |
from US $1.07 |
||
| replacement | |||||
|
33
|
33
98580-04016-00 Screw, Panhead (+) |
98580-04016-00 |
from US $1.07 |
||
|
34
|
34
90601-14259-00 Band, Hose 42 |
90601-14259-00 |
from US $4.84 |
||
| replacement | |||||
|
34
|
34
90601-14271-00 Band, Hose |
90601-14271-00 |
from US $4.84 |
||
|
35
|
35
FK7-68310-00-00 Switch Box Assy |
FK7-68310-00-00 |
from US $278.46 |
||
| replacement | |||||
|
35
|
35
GA7-68310-01-00 Switch Box Assy |
GA7-68310-01-00 |
from US $340.18 |
||
|
36
|
36
FK7-68348-00-00 Lanyard, Stop Switch |
FK7-68348-00-00 |
from US $29.04 |
||
| replacement | |||||
|
36
|
36
EW2-68348-00-00 Lanyard, Stop Switch |
EW2-68348-00-00 |
from US $29.04 |
||
