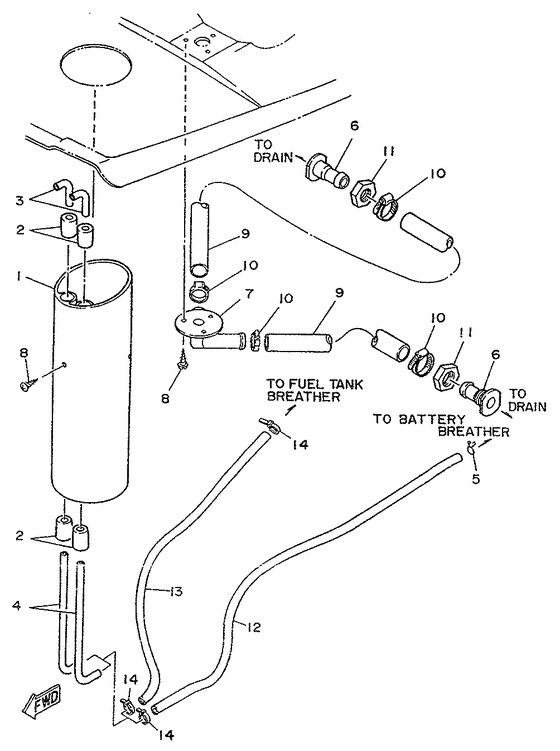

Ventilation Diagram Yamaha WR650
- Model code
- FK7
- Engine Capacity
- 650
- Year
- 1989
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Silver (MMS; 00EK)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
EOU-62149-40-00
Pipe, ventilation
|
EOU-62149-40-00 |
— | ||
|
02
|
02
EOU-62155-00-00
Cap
|
EOU-62155-00-00 |
— | ||
|
05
|
05
90467-08M10-00 Clip |
90467-08M10-00 |
US $1.70 |
||
| replacement | |||||
|
05
|
05
90467-08004-00 Clip |
90467-08004-00 |
from US $1.81 |
||
|
06
|
06
EOU-62241-00-00
Nut, drain
|
EOU-62241-00-00 |
— | ||
|
07
|
07
EOU-62242-00-00
Drain 2
|
EOU-62242-00-00 |
— | ||
|
08
|
08
97780-40112-00 Screw, Oval Head Tapping |
97780-40112-00 |
from US $1.84 |
||
|
09
|
09
90669-03005-00 Hose 1 |
90669-03005-00 |
from US $46.28 |
||
| replacement | |||||
|
09
|
09
906-69030-30-00 element |
906-69030-30-00 |
from US $46.28 |
||
|
10
|
10
90601-12538-00 Band Hose |
90601-12538-00 |
from US $7.37 |
||
|
11
|
11
EOU-62241-30-00
Nut, drain
|
EOU-62241-30-00 |
— | ||
|
12
|
12
EOU-67856-40-00
Hose,airvent 3
|
EOU-67856-40-00 |
— | ||
|
13
|
13
EOU-67856-30-00
Hose,airvent 3
|
EOU-67856-30-00 |
— | ||
|
14
|
14
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
14
|
14
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
14
|
14
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
