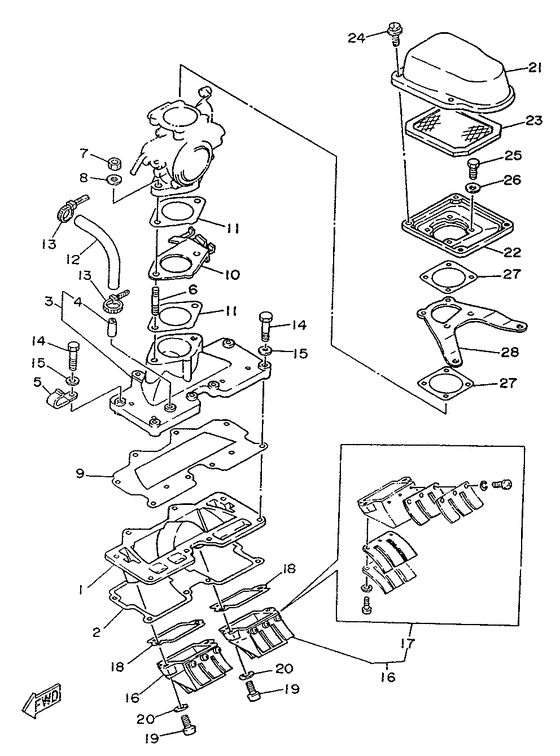

Intake Diagram Yamaha WR650
- Model code
- FK7
- Engine Capacity
- 650
- Year
- 1990
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Silver (MMS; 00EK)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6M6-13641-00-94 Manifold, Intake 1 |
6M6-13641-00-94 |
US $97.72 |
||
|
02
|
02
6M6-13566-A0-00 Gasket |
6M6-13566-A0-00 |
US $5.44 |
||
| replacement | |||||
|
02
|
02
6M6-13566-A2-00
Gasket
|
6M6-13566-A2-00 |
— | ||
|
03
|
03
6M6-13555-00-94
Manifold, Intake
|
6M6-13555-00-94 |
— | ||
| replacement | |||||
|
03
|
03
6M6-13555-01-94
Manifold, Intake
|
6M6-13555-01-94 |
— | ||
|
04
|
04
650-24378-00-00
Pipe, Joint 4
|
650-24378-00-00 |
— | ||
| replacements | |||||
|
04
|
04
652-24461-00-00 Pipe, Joint 4 |
652-24461-00-00 |
from US $3.97 |
||
|
04
|
04
6EE-F4377-00-00 Pipe, Joint 2 |
6EE-F4377-00-00 |
from US $3.33 |
||
|
05
|
05
90465-08028-00 Clamp |
90465-08028-00 |
from US $3.40 |
||
|
06
|
06
90116-08M14-00 Bolt, Stud |
90116-08M14-00 |
from US $8.01 |
||
|
07
|
07
953-80086-00-00
Nut, Hex
|
953-80086-00-00 |
— | ||
| replacements | |||||
|
07
|
07
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
07
|
07
988-80081-00-00 Ybs55-8 Nut (644) |
988-80081-00-00 |
from US $1.57 |
||
|
08
|
08
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
09
|
09
6M6-13563-A0-00 Gasket |
6M6-13563-A0-00 |
US $5.44 |
||
| replacement | |||||
|
09
|
09
6M6-13563-A1-00 Gasket |
6M6-13563-A1-00 |
from US $2.36 |
||
|
10
|
10
6M6-14527-00-EK Plate |
6M6-14527-00-EK |
from US $18.36 |
||
| replacement | |||||
|
10
|
10
6M6-14527-02-94 Plate |
6M6-14527-02-94 |
from US $18.36 |
||
|
11
|
11
6M6-13556-A0-00 Gasket, Manifold |
6M6-13556-A0-00 |
US $4.96 |
||
| replacement | |||||
|
11
|
11
6M6-13556-A1-00 Gasket, Manifold |
6M6-13556-A1-00 |
from US $4.96 |
||
|
12
|
12
90445-10M20-00 Hose (L400) |
90445-10M20-00 |
US $6.38 |
||
| replacement | |||||
|
12
|
12
90445-10M43-00 Hose (L400) |
90445-10M43-00 |
from US $6.94 |
||
|
13
|
13
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
13
|
13
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
13
|
13
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
14
|
14
970-13060-35-00 Bolt, Hexagon |
970-13060-35-00 |
from US $2.09 |
||
| replacement | |||||
|
14
|
14
970-14060-35-00 Bolt, Hexagon |
970-14060-35-00 |
from US $2.41 |
||
|
15
|
15
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
16
|
16
6M6-13610-00-00 Reed Valve Assembly |
6M6-13610-00-00 |
from US $98.39 |
||
|
17
|
17
688-W0004-00-00 Reed Set |
688-W0004-00-00 |
from US $55.26 |
||
|
18
|
18
6M6-13621-A0-00 Gasket, Valve Seat |
6M6-13621-A0-00 |
US $2.05 |
||
| replacement | |||||
|
18
|
18
6M6-13621-A1-00 Gasket, Valve Seat |
6M6-13621-A1-00 |
from US $2.05 |
||
|
19
|
19
985-80050-16-00
Screw, Pan Head
|
985-80050-16-00 |
— | ||
| replacement | |||||
|
19
|
19
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
20
|
20
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
21
|
21
6M6-14283-00-98 Cover, CarburetorLow gloss black |
6M6-14283-00-98 |
from US $123.50 |
||
|
22
|
22
6M6-14284-00-98
Cover, Carburetor 2
Low gloss black |
6M6-14284-00-98 |
— | ||
| replacement | |||||
|
22
|
22
6M6-14284-00-8P
Cover, Carburetor 2
Low gloss black |
6M6-14284-00-8P |
— | ||
|
23
|
23
6M6-14451-00-00 Element, Air Cleaner |
6M6-14451-00-00 |
US $50.62 |
||
|
24
|
24
90105-05M44-00
Bolt, Washer Based
|
90105-05M44-00 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
25
|
25
973-13060-20-00
Bolt, Hexagon
|
973-13060-20-00 |
— | ||
| replacement | |||||
|
25
|
25
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
26
|
26
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
27
|
27
6M6-13674-A0-00 Gasket, Air Cooler Cover 1 |
6M6-13674-A0-00 |
US $7.93 |
||
| replacement | |||||
|
27
|
27
6M6-13674-A1-00 Gasket, Air Cooler Cover 1 |
6M6-13674-A1-00 |
from US $7.33 |
||
|
28
|
28
6M6-14255-00-EK Plate |
6M6-14255-00-EK |
US $29.75 |
||
