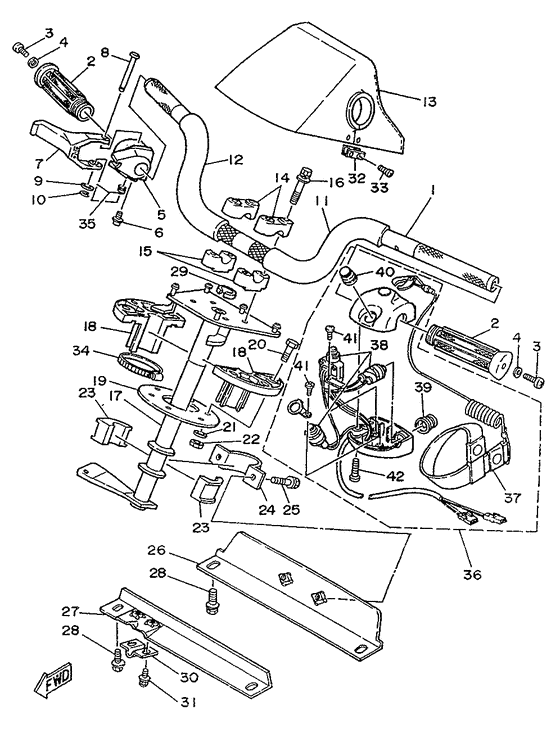

Steering Diagram Yamaha WR650
- Model code
- FK7
- Engine Capacity
- 650
- Year
- 1990
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Silver (MMS; 00EK)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
EU0-61552-02-00
Handle (90)
|
EU0-61552-02-00 |
— | ||
|
02
|
02
EU0-26241-01-00 Grip, Handle |
EU0-26241-01-00 |
from US $15.16 |
||
|
03
|
03
98580-05020-00 Screw, Pan Head |
98580-05020-00 |
from US $1.56 |
||
|
04
|
04
90201-05912-00 Washer, Plate |
90201-05912-00 |
from US $1.28 |
||
| replacements | |||||
|
04
|
04
90201-05003-00 Washer |
90201-05003-00 |
from US $2.24 |
||
|
04
|
04
90201-05015-00 Washer, Plate |
90201-05015-00 |
from US $2.69 |
||
|
05
|
05
EU0-67254-00-00 Bracket, Throttle |
EU0-67254-00-00 |
US $42.35 |
||
| replacement | |||||
|
05
|
05
999-99019-89-00 Bracket |
999-99019-89-00 |
US $42.35 |
||
|
06
|
06
90159-05900-00 Screw, With Washer |
90159-05900-00 |
from US $2.27 |
||
|
07
|
07
81E-42138-00-00 Lever, Throttle |
81E-42138-00-00 |
US $32.54 |
||
|
08
|
08
EU0-61522-01-00 Pin |
EU0-61522-01-00 |
from US $4.41 |
||
|
09
|
09
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
10
|
10
99080-04600-00 Circlip |
99080-04600-00 |
from US $1.66 |
||
|
11
|
11
EU0-61489-11-00 Protector Tube Lh |
EU0-61489-11-00 |
US $33.14 |
||
|
12
|
12
EU0-61489-21-00
Protector Tube Rh
|
EU0-61489-21-00 |
— | ||
|
13
|
13
EU0-61421-03-00
Pad, Steering
|
EU0-61421-03-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
EU0-23814-01-00 Holder, Handle Upper |
EU0-23814-01-00 |
from US $14.73 |
||
| replacement | |||||
|
14
|
14
EU0-23814-02-00 Holder, Handle Upper |
EU0-23814-02-00 |
from US $14.73 |
||
|
15
|
15
EU0-23814-30-00 Holder, Handle Upper |
EU0-23814-30-00 |
from US $13.74 |
||
| replacements | |||||
|
15
|
15
EU0-23814-31-00 Holder, Handle Upper |
EU0-23814-31-00 |
from US $13.74 |
||
|
15
|
15
EU0-23814-32-00 Holder, Handle Upper |
EU0-23814-32-00 |
from US $22.22 |
||
|
16
|
16
90119-08905-00 Bolt, With Washer |
90119-08905-00 |
from US $3.82 |
||
| replacement | |||||
|
16
|
16
90119-08925-00 Bolt, With Washer |
90119-08925-00 |
US $3.82 |
||
|
17
|
17
EU0-61541-01-00
Column, Steering
|
EU0-61541-01-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
EU0-61417-00-00 Column, Steering |
EU0-61417-00-00 |
US $33.77 |
||
|
19
|
19
EU0-61439-01-00 Seal, Rubber |
EU0-61439-01-00 |
from US $10.43 |
||
| replacement | |||||
|
19
|
19
EU0-61439-30-00 Seal Rubber |
EU0-61439-30-00 |
from US $10.43 |
||
|
20
|
20
97380-06030-00 Bolt |
97380-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
20
|
20
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
21
|
21
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
22
|
22
95780-06300-00 P58 Nut, Nylon |
95780-06300-00 |
from US $4.11 |
||
|
23
|
23
8F3-23812-00-00 Bearing, Steering |
8F3-23812-00-00 |
from US $7.49 |
||
|
24
|
24
EU0-61588-00-00 Joint, Bearing |
EU0-61588-00-00 |
US $34.29 |
||
|
25
|
25
90119-08903-00 Bolt With Washer (Eu0) |
90119-08903-00 |
from US $3.49 |
||
|
26
|
26
EU0-61433-01-00
Bracket, Bearing
|
EU0-61433-01-00 |
— | ||
|
27
|
27
EU0-61467-01-00
Bracket, Stopper Cable
|
EU0-61467-01-00 |
— | ||
|
28
|
28
90119-08903-00 Bolt With Washer (Eu0) |
90119-08903-00 |
from US $3.49 |
||
|
29
|
29
EU0-61469-00-00 Packing, Steering Column |
EU0-61469-00-00 |
US $10.80 |
||
|
30
|
30
EU0-61468-00-00
Stopper Cable
|
EU0-61468-00-00 |
— | ||
| replacements | |||||
|
30
|
30
EU0-61468-01-00 Stopper Cable |
EU0-61468-01-00 |
US $18.95 |
||
|
30
|
30
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
31
|
31
90119-06066-00 Bolt, With Washer |
90119-06066-00 |
US $15.46 |
||
| replacement | |||||
|
31
|
31
90119-06926-00 Bolt H/h W/w (Eu0) |
90119-06926-00 |
US $15.46 |
||
|
32
|
32
EU0-61422-00-00
Plate, Steering Pad
|
EU0-61422-00-00 |
— | ||
|
33
|
33
98586-04016-00 Screw, Pan Head |
98586-04016-00 |
from US $1.07 |
||
| replacement | |||||
|
33
|
33
98580-04016-00 Screw, Panhead (+) |
98580-04016-00 |
from US $1.07 |
||
|
34
|
34
90601-14259-00 Band, Hose 42 |
90601-14259-00 |
from US $4.84 |
||
| replacement | |||||
|
34
|
34
90601-14271-00 Band, Hose |
90601-14271-00 |
from US $4.84 |
||
|
35
|
35
EU0-67256-00-00
Spring
|
EU0-67256-00-00 |
— | ||
|
36
|
36
FK7-68310-00-00 Switch Box Assy |
FK7-68310-00-00 |
from US $278.46 |
||
| replacement | |||||
|
36
|
36
GA7-68310-01-00 Switch Box Assy |
GA7-68310-01-00 |
from US $340.18 |
||
|
37
|
37
FK7-68348-00-00 Lanyard, Stop Switch |
FK7-68348-00-00 |
from US $29.04 |
||
| replacement | |||||
|
37
|
37
EW2-68348-00-00 Lanyard, Stop Switch |
EW2-68348-00-00 |
from US $29.04 |
||
|
38
|
38
FK7-68311-00-00 Switch, Push |
FK7-68311-00-00 |
from US $278.46 |
||
| replacement | |||||
|
38
|
38
GA7-68310-01-00 Switch Box Assy |
GA7-68310-01-00 |
from US $340.18 |
||
|
39
|
39
FK7-68312-00-00 Switch, Pull |
FK7-68312-00-00 |
from US $8.22 |
||
| replacement | |||||
|
39
|
39
FK7-68312-02-00 Stop Button Comp |
FK7-68312-02-00 |
from US $7.42 |
||
|
40
|
40
FK7-68313-00-00 Start Button Comp |
FK7-68313-00-00 |
from US $11.02 |
||
| replacements | |||||
|
40
|
40
FK7-68313-02-00 Start Button Comp |
FK7-68313-02-00 |
from US $11.90 |
||
|
40
|
40
FK7-68313-01-00 Start Button Comp |
FK7-68313-01-00 |
from US $11.90 |
||
|
41
|
41
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
42
|
42
98586-05025-00 Screw, Pan Head |
98586-05025-00 |
US $1.84 |
||
| replacement | |||||
|
42
|
42
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
