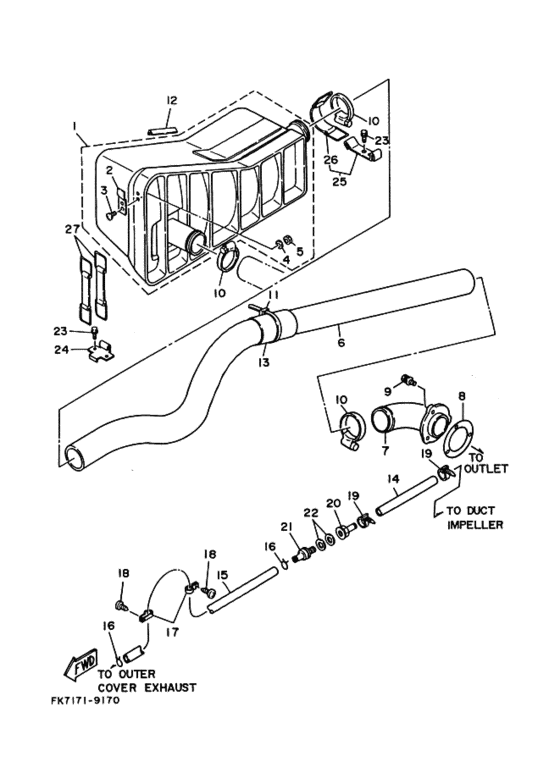

Exhaust 2 Diagram Yamaha WR650
- Model code
- FK7K
- Engine Capacity
- 650
- Year
- 1992
- Sales region
- Japan (010)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
EU0-67550-03-00
Water Lock Comp
ＷＡＴＥＲ ＬＯＣＫ ＣＯＭＰ．; |
EU0-67550-03-00 |
— | ||
|
2
|
2
EU0-67567-00-00
Hook B
．ＨＯＯＫ Ｂ; |
EU0-67567-00-00 |
— | ||
|
3
|
3
985-80050-25-00
Screw, Pan Head
．ＳＣＲＥＷ; |
985-80050-25-00 |
— | ||
| replacement | |||||
|
3
|
3
985-80055-25-00 Screw, Pan Head．ＳＣＲＥＷ; |
985-80055-25-00 |
from US $1.33 |
||
|
4
|
4
92990-05200-00 Washer, Plain．ＷＡＳＨＥＲ; |
92990-05200-00 |
from US $1.56 |
||
|
5
|
5
95720-05300-00 Nut, Flange．ＮＵＴ; |
95720-05300-00 |
from US $1.56 |
||
|
6
|
6
EU0-67555-00-00
Hose
ＨＯＳＥ; |
EU0-67555-00-00 |
— | ||
| replacement | |||||
|
6
|
6
EU0-U7555-00-00
Hose, Exhaust
ＨＯＳＥ; |
EU0-U7555-00-00 |
— | ||
|
7
|
7
EU0-67565-00-00
Thru-Hull
ＴＨＲＵ−ＨＵＬＬ; |
EU0-67565-00-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
ＴＨＲＵ−ＨＵＬＬ; |
999-99999-99-00 |
— | ||
|
8
|
8
EU0-67525-01-00 PackingＰＡＣＫＩＮＧ; |
EU0-67525-01-00 |
US $10.80 |
||
|
9
|
9
90119-05912-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-05912-00 |
from US $2.69 |
||
|
10
|
10
90601-15253-00 Nylon Clip 1ＢＡＮＤ， ＨＯＳＥ ５２; |
90601-15253-00 |
US $17.48 |
||
| replacement | |||||
|
10
|
10
90601-15272-00 Band, Hose 52ＢＡＮＤ， ＨＯＳＥ ５２; |
90601-15272-00 |
US $17.48 |
||
|
11
|
11
90601-20009-00 Band (Eu0)ＢＡＮＤ; |
90601-20009-00 |
from US $2.27 |
||
|
12
|
12
EU0-67593-61-00
Mat 5
ＭＡＴ ５; ＵＲ ＦＯＲ ＵＳＡ／ＣＡＮＡＤＡ／ＪＡＰＡＮ |
EU0-67593-61-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
ＭＡＴ ５; ＵＲ ＦＯＲ ＵＳＡ／ＣＡＮＡＤＡ／ＪＡＰＡＮ |
999-99999-99-00 |
— | ||
|
12
|
12
EU0-67593-70-00
Mat 6
ＭＡＴ ６; ＵＲ ＦＯＲ ＯＣＥＡＮＩＡ／ＡＦＲＩＣＡ％／ＥＵＲＯＰＥ |
EU0-67593-70-00 |
— | ||
|
13
|
13
EU0-67576-00-00
Hose, Protector
ＨＯＳＥ， ＰＲＯＴＥＣＴＯＲ; |
EU0-67576-00-00 |
— | ||
|
14
|
14
90445-13M04-00 Hose (L130)ＨＯＳＥ; |
90445-13M04-00 |
US $7.93 |
||
|
15
|
15
90445-13M05-00
Hose (L1000)
ＨＯＳＥ; |
90445-13M05-00 |
— | ||
|
16
|
16
90467-12M11-00 ClipＣＬＩＰ; |
90467-12M11-00 |
from US $1.84 |
||
|
17
|
17
90600-91728-00 ClampＣＬＩＰ， ＮＹＬＯＮ １７; |
90600-91728-00 |
from US $2.08 |
||
|
18
|
18
97780-50116-00 Screw, TappingＳＣＲＥＷ; |
97780-50116-00 |
from US $1.52 |
||
|
19
|
19
90465-13M11-00 ClampＣＬＡＭＰ; |
90465-13M11-00 |
from US $1.70 |
||
| replacement | |||||
|
19
|
19
80L-26397-00-00 BandＣＬＡＭＰ; |
80L-26397-00-00 |
from US $1.17 |
||
|
20
|
20
90604-80757-00
Connection, Thru-Hull 1/4
ＣＯＮＮＥＣＴＩＯＮ， ＴＨＲＵ−ＨＵＬＬ １／４; |
90604-80757-00 |
— | ||
|
21
|
21
906-04807-58-00
Connection, Thru-Hull 1/4
ＣＯＮＮＥＣＴＩＯＮ， ＴＨＲＵ−ＨＵＬＬ １／４; |
906-04807-58-00 |
— | ||
|
22
|
22
90430-13909-00 GasketＰＡＣＫＩＮＧ; |
90430-13909-00 |
from US $1.90 |
||
|
23
|
23
90119-06913-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-06913-00 |
from US $1.98 |
||
|
24
|
24
EU0-67568-00-00
Hook D
ＨＯＯＫ Ｄ; |
EU0-67568-00-00 |
— | ||
|
25
|
25
EU0-67570-00-00
Hook C
ＨＯＯＫ Ｃ; |
EU0-67570-00-00 |
— | ||
|
26
|
26
EU0-67569-02-00 Band, Water Lock．ＢＡＮＤ; |
EU0-67569-02-00 |
from US $25.93 |
||
|
27
|
27
EU0-67569-02-00 Band, Water LockＢＡＮＤ; |
EU0-67569-02-00 |
from US $25.93 |
||
