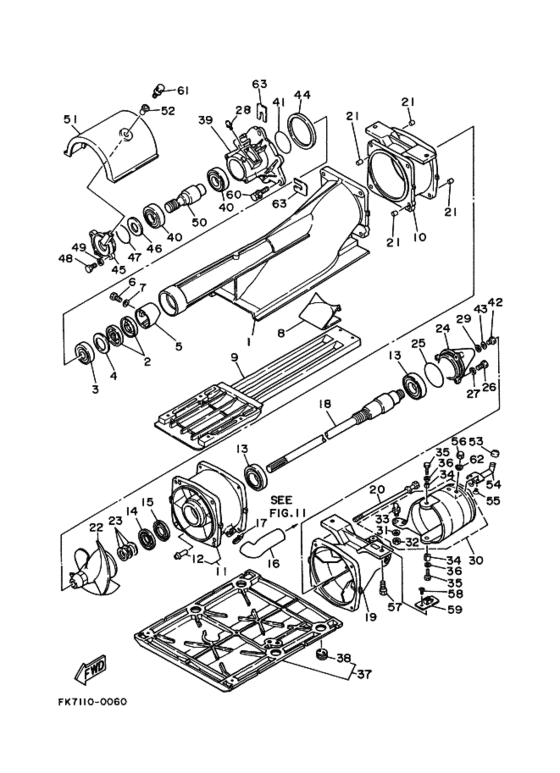

Jet unit Diagram Yamaha WR650
- Model code
- FK7K
- Engine Capacity
- 650
- Year
- 1992
- Sales region
- Japan (010)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6K8-51311-00-94 Duct, IntakeＤＵＣＴ， ＩＮＴＡＫＥ; |
6K8-51311-00-94 |
US $361.57 |
||
|
2
|
2
93101-17M31-00 Oil Seal, S-TypeＯＩＬ ＳＥＡＬ; |
93101-17M31-00 |
US $9.11 |
||
|
3
|
3
93306-30301-00 BearingＢＥＡＲＩＮＧ ; Ｂ６３０３ |
93306-30301-00 |
from US $3.38 |
||
| replacement | |||||
|
3
|
3
93306-30302-00 Brg,r-B 6303 47Mm 115G NkＢＥＡＲＩＮＧ ; Ｂ６３０３ |
93306-30302-00 |
from US $19.55 |
||
|
4
|
4
90201-32M48-00 Shim (T:0.90Mm)ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-32M48-00 |
US $5.95 |
||
| replacement | |||||
|
4
|
4
676-45567-20-00 Shim (T:0.9Mm)ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
676-45567-20-00 |
from US $5.95 |
||
|
5
|
5
6K8-51348-00-9M SpacerＳＰＡＣＥＲ; |
6K8-51348-00-9M |
US $29.96 |
||
| replacement | |||||
|
5
|
5
6K8-51348-00-8S SpacerＳＰＡＣＥＲ; |
6K8-51348-00-8S |
US $29.96 |
||
|
6
|
6
97395-06020-00 Bolt, HexagonＢＯＬＴ; |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
6
|
6
970-80060-20-00 BoltＢＯＬＴ; |
970-80060-20-00 |
from US $1.66 |
||
|
7
|
7
929-90066-00-00 Washer, Plain (646)ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
929-90066-00-00 |
from US $1.18 |
||
|
8
|
8
6K8-51347-00-9M Plate 3ＰＬＡＴＥ ３; |
6K8-51347-00-9M |
US $39.40 |
||
| replacement | |||||
|
8
|
8
6K8-51347-00-8S COVERＰＬＡＴＥ ３; |
6K8-51347-00-8S |
US $39.40 |
||
|
9
|
9
6K8-51333-00-9M Screen IntakeＳＣＲＥＥＮ， ＩＮＴＡＫＥ; |
6K8-51333-00-9M |
US $148.75 |
||
| replacement | |||||
|
9
|
9
6K8-51333-00-8S Screen, IntakeＳＣＲＥＥＮ， ＩＮＴＡＫＥ; |
6K8-51333-00-8S |
US $148.75 |
||
|
10
|
10
6K8-51312-00-94
Housing, Impeller
ＨＯＵＳＩＮＧ， ＩＭＰＥＬＬＥＲ; |
6K8-51312-00-94 |
— | ||
| replacement | |||||
|
10
|
10
6K8-51312-00-8S
Housing, Impeller
ＨＯＵＳＩＮＧ， ＩＭＰＥＬＬＥＲ; |
6K8-51312-00-8S |
— | ||
|
11
|
11
6K8-51315-00-94 Duct, ImpellerＤＵＣＴ， ＩＭＰＥＬＬＥＲ; |
6K8-51315-00-94 |
US $335.11 |
||
| replacement | |||||
|
11
|
11
999-99038-40-00 Duct, ImpellerＤＵＣＴ， ＩＭＰＥＬＬＥＲ; |
999-99038-40-00 |
US $335.11 |
||
|
12
|
12
6K8-51385-00-00
Pipe
．ＰＩＰＥ; |
6K8-51385-00-00 |
— | ||
|
13
|
13
93306-206U6-00 BearingＢＥＡＲＩＮＧ; |
93306-206U6-00 |
from US $26 |
||
|
14
|
14
93103-30M00-00 Oil Seal, Sw-TypeＯＩＬ ＳＥＡＬ; |
93103-30M00-00 |
from US $14.30 |
||
|
15
|
15
93101-30M32-00 Oil Seal, S-TypeＯＩＬ ＳＥＡＬ; |
93101-30M32-00 |
from US $9.98 |
||
|
16
|
16
6K8-51161-10-00 Hose, SplasherＨＯＳＥ， ＰＬＡＳＨＥＲ; |
6K8-51161-10-00 |
US $33.25 |
||
|
17
|
17
90460-18M08-00 Hose Clamp AssyＣＬＡＭＰ， ＨＯＳＥ; |
90460-18M08-00 |
US $34 |
||
| replacement | |||||
|
17
|
17
90450-32097-00 Hose Clamp AssyＣＬＡＭＰ， ＨＯＳＥ; |
90450-32097-00 |
from US $19.22 |
||
|
18
|
18
6K8-45511-01-00 Shaft, DriveＳＨＡＦＴ， ＤＲＩＶＥ; |
6K8-45511-01-00 |
from US $656.27 |
||
|
19
|
19
6M6-51318-00-9M NozzleＮＯＺＺＬＥ; |
6M6-51318-00-9M |
US $296.55 |
||
| replacement | |||||
|
19
|
19
6M6-51318-00-5B Nozzle (6M6-51318-00-9M)ＮＯＺＺＬＥ; |
6M6-51318-00-5B |
US $354.35 |
||
|
20
|
20
90119-06M33-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-06M33-00 |
US $8.06 |
||
|
21
|
21
936-06120-19-00 Pin, DowelＰＩＮ， ＤＯＷＥＬ; |
936-06120-19-00 |
from US $2.86 |
||
|
22
|
22
6M6-51321-00-94
Impeller
ＩＭＰＥＬＬＥＲ; |
6M6-51321-00-94 |
— | ||
|
23
|
23
6K8-45567-00-01 Shim (T=0.1)ＳＨＩＭ ; Ｔ＝０．１; ＵＲ |
6K8-45567-00-01 |
from US $1.49 |
||
|
23
|
23
6K8-45567-00-03 Shim (T=0.3)ＳＨＩＭ ; Ｔ＝０．３; ＵＲ |
6K8-45567-00-03 |
from US $1.49 |
||
|
23
|
23
6K8-45567-00-05
Shim (T=0.5)
ＳＨＩＭ ; Ｔ＝０．５; ＵＲ |
6K8-45567-00-05 |
— | ||
|
23
|
23
6K8-45567-00-10 Shim (T=1.0)ＳＨＩＭ ; Ｔ＝１．０; ＵＲ |
6K8-45567-00-10 |
US $4.23 |
||
|
24
|
24
6K8-51326-00-94
Cap
ＣＡＰ; |
6K8-51326-00-94 |
— | ||
|
25
|
25
932-1057M-09-00 O-RingＯ−ＲＩＮＧ; |
932-1057M-09-00 |
from US $3.04 |
||
|
26
|
26
973-95060-16-00
Bolt, Hex
ＢＯＬＴ; |
973-95060-16-00 |
— | ||
| replacements | |||||
|
26
|
26
97095-06016-00 BoltＢＯＬＴ; |
97095-06016-00 |
US $1.52 |
||
|
26
|
26
97D95-06016-00 Bolt, Hexagon Deep RecessＢＯＬＴ; |
97D95-06016-00 |
from US $1.52 |
||
|
27
|
27
929-90066-00-00 Washer, Plain (646)ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
929-90066-00-00 |
from US $1.18 |
||
|
28
|
28
937-00060-04-00
Nipple, Grease
ＮＩＰＰＬＥ， ＧＲＥＡＳＥ; |
937-00060-04-00 |
— | ||
| replacement | |||||
|
28
|
28
93700-06M03-00 Nipple, GreaseＮＩＰＰＬＥ， ＧＲＥＡＳＥ; |
93700-06M03-00 |
from US $3.04 |
||
|
29
|
29
90430-06M03-00 GasketＧＡＳＫＥＴ; |
90430-06M03-00 |
from US $1.70 |
||
|
30
|
30
6K8-51313-00-00 Nozzle, Jet OutputＪＥＴ ＯＵＴＰＵＴ ＮＯＺＺＬＥ; |
6K8-51313-00-00 |
US $66.28 |
||
|
31
|
31
90201-06M02-00 Washer,plate (6K8)．ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-06M02-00 |
from US $2.27 |
||
|
32
|
32
953-80067-00-00 Nut．ＮＵＴ; |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
32
|
32
9538R-06700-00 Nut．ＮＵＴ; |
9538R-06700-00 |
from US $1.52 |
||
|
33
|
33
6K8-42316-00-00 Bolt, Joint．ＢＯＬＴ， ＪＯＩＮＴ; |
6K8-42316-00-00 |
from US $19.69 |
||
| replacement | |||||
|
33
|
33
6R7-42316-00-00 Bolt, Joint．ＢＯＬＴ， ＪＯＩＮＴ; |
6R7-42316-00-00 |
from US $19.69 |
||
|
34
|
34
90387-06M12-00 CollarＣＯＬＬＡＲ; |
90387-06M12-00 |
from US $1.35 |
||
| replacement | |||||
|
34
|
34
90387-060G7-00 Collar(47X)ＣＯＬＬＡＲ; |
90387-060G7-00 |
from US $1.35 |
||
|
35
|
35
97395-06020-00 Bolt, HexagonＢＯＬＴ; |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
35
|
35
970-80060-20-00 BoltＢＯＬＴ; |
970-80060-20-00 |
from US $1.66 |
||
|
36
|
36
929-90066-00-00 Washer, Plain (646)ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
929-90066-00-00 |
from US $1.18 |
||
|
37
|
37
FK7-62720-00-00
Inspection Cover Assy
ＰＬＡＴＥ ２; |
FK7-62720-00-00 |
— | ||
|
38
|
38
FK7-62732-00-00
Bolt, Jack
．ＢＯＬＴ， ＪＡＣＫ; |
FK7-62732-00-00 |
— | ||
| replacement | |||||
|
38
|
38
FK7-62732-01-00
Bolt,jack
．ＢＯＬＴ， ＪＡＣＫ; |
FK7-62732-01-00 |
— | ||
|
39
|
39
6K8-45331-01-94 Housing, BearingＨＯＵＳＩＮＧ， ＢＥＡＲＩＮＧ; ＵＲ ＦＯＲ ＵＳＡ |
6K8-45331-01-94 |
US $223.20 |
||
| replacement | |||||
|
39
|
39
6K8-45331-02-00 HOUSING, IMPELLERＨＯＵＳＩＮＧ， ＢＥＡＲＩＮＧ; ＵＲ ＦＯＲ ＵＳＡ |
6K8-45331-02-00 |
US $223.20 |
||
|
39
|
39
6M6-45331-01-94
Housing, Bearing
ＨＯＵＳＩＮＧ， ＢＥＡＲＩＮＧ; ＵＲ ＦＯＲ ＥＸＣＥＰＴ ＵＳＡ |
6M6-45331-01-94 |
— | ||
|
40
|
40
93306-205U1-00 BearingＢＥＡＲＩＮＧ; |
93306-205U1-00 |
from US $23.24 |
||
|
41
|
41
93210-52454-00 O-RingＯ−ＲＩＮＧ; |
93210-52454-00 |
from US $5.98 |
||
|
42
|
42
973-95060-12-00
Bolt
ＢＯＬＴ; |
973-95060-12-00 |
— | ||
| replacement | |||||
|
42
|
42
970-80060-12-00 BoltＢＯＬＴ; |
970-80060-12-00 |
from US $2.22 |
||
|
43
|
43
929-90066-00-00 Washer, Plain (646)ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
929-90066-00-00 |
from US $1.18 |
||
|
44
|
44
6K8-45127-00-00 SealＳＥＡＬ; |
6K8-45127-00-00 |
from US $11.19 |
||
|
45
|
45
6K8-51332-00-94 PlateＰＬＡＴＥ; |
6K8-51332-00-94 |
US $63.32 |
||
| replacement | |||||
|
45
|
45
6K8-51332-00-00 elementＰＬＡＴＥ; |
6K8-51332-00-00 |
US $63.32 |
||
|
46
|
46
93101-25M45-00 Oil SealＯＩＬ ＳＥＡＬ; |
93101-25M45-00 |
from US $9.35 |
||
| replacement | |||||
|
46
|
46
93101-25M50-00 Oil SealＯＩＬ ＳＥＡＬ; |
93101-25M50-00 |
from US $9.15 |
||
|
47
|
47
93210-46M16-00 O-RingＯ−ＲＩＮＧ; |
93210-46M16-00 |
from US $4.72 |
||
|
48
|
48
97395-06020-00 Bolt, HexagonＢＯＬＴ; |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
48
|
48
970-80060-20-00 BoltＢＯＬＴ; |
970-80060-20-00 |
from US $1.66 |
||
|
49
|
49
929-90066-00-00 Washer, Plain (646)ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
929-90066-00-00 |
from US $1.18 |
||
|
50
|
50
6K8-51323-02-00 Shaft, CouplerＳＨＡＦＴ， ＣＯＵＰＬＯＲ; |
6K8-51323-02-00 |
US $329.17 |
||
|
51
|
51
6M6-51381-01-00
Cover
ＣＯＶＥＲ; ＵＲ ＦＯＲ ＵＳＡ |
6M6-51381-01-00 |
— | ||
|
52
|
52
90387-06M60-00 CollarＣＯＬＬＡＲ; |
90387-06M60-00 |
from US $3.72 |
||
|
53
|
53
EU0-62695-00-00 Cap, SpoutＣＡＰ， ＳＰＯＵＴ; |
EU0-62695-00-00 |
from US $4.23 |
||
| replacement | |||||
|
53
|
53
6R8-62695-00-00 Cap, SpoutＣＡＰ， ＳＰＯＵＴ; |
6R8-62695-00-00 |
from US $4.53 |
||
|
54
|
54
EU0-62693-02-00 PipeＳＰＯＵＴ; |
EU0-62693-02-00 |
from US $30.32 |
||
|
55
|
55
98780-05016-00 Screw, Flat HeadＳＣＲＥＷ， ＦＬＡＴ ＨＥＡＤ; |
98780-05016-00 |
from US $2.13 |
||
|
56
|
56
95780-05300-00 Nut, M5 X 0.8 Nylon LockＮＵＴ; |
95780-05300-00 |
from US $1.84 |
||
|
57
|
57
90119-10906-00 BoltＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-10906-00 |
US $9.95 |
||
|
58
|
58
97780-40108-00 Screw, Tapping (97780-40108-00)ＳＣＲＥＷ， ＴＡＰＰＩＮＧ; |
97780-40108-00 |
US $1.15 |
||
| replacement | |||||
|
58
|
58
977-80405-08-00 Screw, Tapping (97780-40108-00)ＳＣＲＥＷ， ＴＡＰＰＩＮＧ; |
977-80405-08-00 |
US $1.15 |
||
|
59
|
59
90179-10919-00
Nut
ＮＵＴ; |
90179-10919-00 |
— | ||
|
60
|
60
90119-08907-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-08907-00 |
from US $7.08 |
||
|
61
|
61
90119-06900-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-06900-00 |
from US $2.27 |
||
|
62
|
62
92990-05200-00 Washer, PlainＷＡＳＨＥＲ， ＰＬＡＩＮ; |
92990-05200-00 |
from US $1.56 |
||
|
63
|
63
EU0-67354-30-03
Shim (T=0.3)
ＳＨＩＭ ; Ｔ＝０．３; ＵＲ |
EU0-67354-30-03 |
— | ||
|
63
|
63
EU0-67354-30-05 Shim (T=0.5)ＳＨＩＭ ; Ｔ＝０．５; ＵＲ |
EU0-67354-30-05 |
US $1.56 |
||
| replacements | |||||
|
63
|
63
EU0-U7354-30-05
Shim (T=0.5) (Eu0-67354-30-05)
ＳＨＩＭ ; Ｔ＝０．５; ＵＲ |
EU0-U7354-30-05 |
— | ||
|
63
|
63
GD0-67249-A0-00 Shim (T=0.5)ＳＨＩＭ ; Ｔ＝０．５; ＵＲ |
GD0-67249-A0-00 |
from US $1.56 |
||
|
63
|
63
999-99999-99-00
Not Available
ＳＨＩＭ ; Ｔ＝０．５; ＵＲ |
999-99999-99-00 |
— | ||
|
63
|
63
EU0-67354-30-10 Shim (T=1.0)ＳＨＩＭ ; Ｔ＝１．０; ＵＲ |
EU0-67354-30-10 |
US $1.56 |
||
| replacements | |||||
|
63
|
63
EU0-U7354-30-10
Shim (T=1.0) (Eu0-67354-30-10)
ＳＨＩＭ ; Ｔ＝１．０; ＵＲ |
EU0-U7354-30-10 |
— | ||
|
63
|
63
999-99999-99-00
Not Available
ＳＨＩＭ ; Ｔ＝１．０; ＵＲ |
999-99999-99-00 |
— | ||
