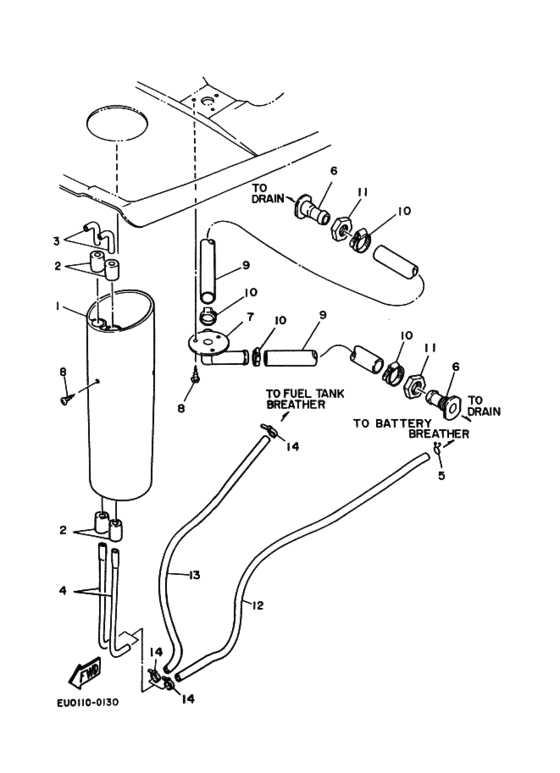

Ventilation Diagram Yamaha WR650
- Model code
- FK7K
- Engine Capacity
- 650
- Year
- 1992
- Sales region
- Japan (010)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
EU0-62149-40-00
Pipe, Ventilation
ＰＩＰＥ， ＶＥＮＴＩＬＡＴＩＯＮ; |
EU0-62149-40-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
ＰＩＰＥ， ＶＥＮＴＩＬＡＴＩＯＮ; |
999-99999-99-00 |
— | ||
|
2
|
2
EU0-62155-00-00
Cap
ＣＡＰ; |
EU0-62155-00-00 |
— | ||
|
3
|
3
EU0-62156-01-00
Elbow Vent 11
ＥＬＢＯＷ， ＶＥＮＴＩＬＡＴＥＲ １１; |
EU0-62156-01-00 |
— | ||
|
4
|
4
EU0-62156-32-00
Elbow Vent 12
ＥＬＢＯＷ， ＶＥＮＴＩＬＡＴＥＲ １２; |
EU0-62156-32-00 |
— | ||
|
5
|
5
90467-08M10-00 ClipＣＬＩＰ; |
90467-08M10-00 |
US $1.70 |
||
| replacement | |||||
|
5
|
5
90467-08004-00 ClipＣＬＩＰ; |
90467-08004-00 |
from US $1.81 |
||
|
6
|
6
EU0-62241-00-00 Drain, CockpitＢＯＤＹ， ＤＲＡＩＮ １; |
EU0-62241-00-00 |
US $18.22 |
||
|
7
|
7
EU0-62242-00-00 Drain 2ＤＲＡＩＮ ２; |
EU0-62242-00-00 |
from US $32.30 |
||
|
8
|
8
97780-40112-00 Screw, Oval Head TappingＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ; |
97780-40112-00 |
from US $1.84 |
||
|
9
|
9
90669-03005-00 Hose 1ＨＯＳＥ １; |
90669-03005-00 |
from US $46.28 |
||
| replacement | |||||
|
9
|
9
906-69030-30-00 elementＨＯＳＥ １; |
906-69030-30-00 |
from US $46.28 |
||
|
10
|
10
90601-12538-00 Band HoseＢＡＮＤ， ＨＯＳＥ ２５; |
90601-12538-00 |
from US $7.37 |
||
|
11
|
11
EU0-62241-30-00 Nut, Drain 1ＮＵＴ， ＤＲＡＩＮ １; |
EU0-62241-30-00 |
from US $10.77 |
||
|
12
|
12
EU0-67856-40-00 Hose (L850)ＨＯＳＥ， ＡＩＲ ＶＥＮＴ ３; |
EU0-67856-40-00 |
from US $16.29 |
||
| replacement | |||||
|
12
|
12
90699-50085-00 Hose (L850)ＨＯＳＥ， ＡＩＲ ＶＥＮＴ ３; |
90699-50085-00 |
from US $16.29 |
||
|
13
|
13
EU0-67856-30-00 Hose, Airvent 1ＨＯＳＥ， ＡＩＲ ＶＥＮＴ ２; |
EU0-67856-30-00 |
US $15.44 |
||
|
14
|
14
904-6511M-10-00
Clamp
ＣＬＡＭＰ; |
904-6511M-10-00 |
— | ||
| replacements | |||||
|
14
|
14
80L-26397-00-00 BandＣＬＡＭＰ; |
80L-26397-00-00 |
from US $1.40 |
||
|
14
|
14
904-65100-98-00 ClampＣＬＡＭＰ; |
904-65100-98-00 |
from US $1.39 |
||
