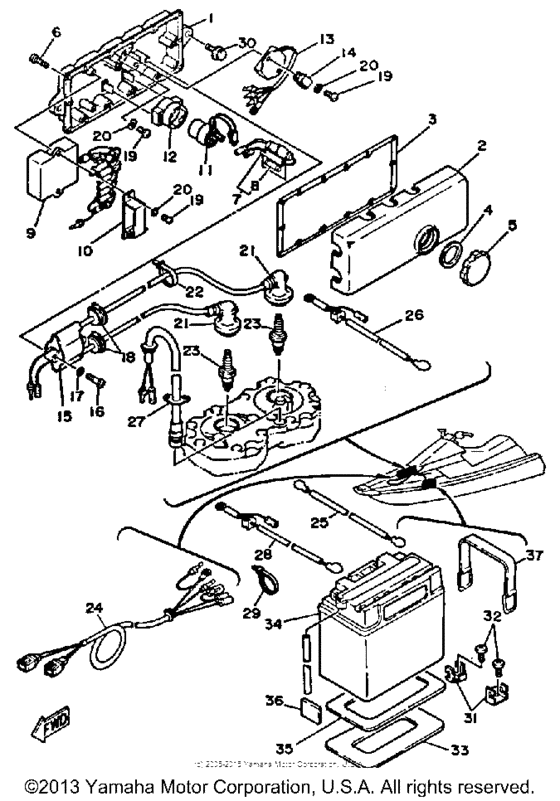

Electrical (1) Diagram Yamaha WR650 Wave Runner LX
- Engine Capacity
- 650
- Year
- 1990
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6M6-8552A-01-98 Housing |
6M6-8552A-01-98 |
from US $116.47 |
||
| replacement | |||||
|
1
|
1
6M6-8552A-01-8P Housing |
6M6-8552A-01-8P |
from US $116.47 |
||
|
2
|
2
6M6-8552E-00-00 Cover, Case |
6M6-8552E-00-00 |
from US $49.18 |
||
| replacement | |||||
|
2
|
2
6M6-8552E-01-00 Cover, Case |
6M6-8552E-01-00 |
from US $49.18 |
||
|
3
|
3
6M6-81921-00-00 Gasket, Terminal |
6M6-81921-00-00 |
from US $25.60 |
||
|
4
|
4
6M6-81844-00-00 Gasket |
6M6-81844-00-00 |
from US $8.42 |
||
|
5
|
5
6M6-8132W-00-00 Cap |
6M6-8132W-00-00 |
from US $13.14 |
||
|
6
|
6
97780-60525-00 Screw,tapping |
97780-60525-00 |
US $1.98 |
||
| replacement | |||||
|
6
|
6
97780-60625-00 Screw, Tapping(65J) |
97780-60625-00 |
from US $2.22 |
||
|
7
|
7
6K8-82150-01-00 Fuse Holder Assy |
6K8-82150-01-00 |
from US $26.78 |
||
| replacement | |||||
|
7
|
7
6K8-82150-02-00 FUSE HOLDER ASSY |
6K8-82150-02-00 |
from US $26.78 |
||
|
8
|
8
6G1-82151-00-00 Fuse (10A)10A |
6G1-82151-00-00 |
from US $2.83 |
||
| replacement | |||||
|
8
|
8
1E6-82151-00-00 Fuse (10A)10A |
1E6-82151-00-00 |
from US $2.02 |
||
|
9
|
9
6M6-85540-01-00 C.d.i. Unit Assembly |
6M6-85540-01-00 |
from US $608.69 |
||
| replacements | |||||
|
9
|
9
6M6-85540-02-00 C.d.i. Unit Assy |
6M6-85540-02-00 |
US $641.90 |
||
|
9
|
9
6M6-85540-02-00 C.d.i. Unit Assy |
6M6-85540-02-00 |
US $641.90 |
||
|
10
|
10
90464-06M29-00 Clamp |
90464-06M29-00 |
from US $4.64 |
||
|
11
|
11
6G1-81941-10-00 Starter Relay Assy |
6G1-81941-10-00 |
from US $57.24 |
||
|
12
|
12
6M6-81952-00-00 Holder, Relay |
6M6-81952-00-00 |
from US $5.73 |
||
| replacement | |||||
|
12
|
12
6M6-81952-01-00
Holder, Relay
|
6M6-81952-01-00 |
— | ||
|
13
|
13
6M6-81960-A0-00 Rectifier & Regulator Assy |
6M6-81960-A0-00 |
from US $95.28 |
||
|
14
|
14
90465-08028-00 Clamp |
90465-08028-00 |
from US $3.40 |
||
|
15
|
15
6R8-85570-00-00
Ignition Coil Assembly
|
6R8-85570-00-00 |
— | ||
|
16
|
16
985-80060-30-00
Screw Pan Head
|
985-80060-30-00 |
— | ||
| replacement | |||||
|
16
|
16
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.52 |
||
|
17
|
17
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
18
|
18
90480-06M43-00 Grommet |
90480-06M43-00 |
from US $3.83 |
||
|
19
|
19
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
19
|
19
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
20
|
20
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
21
|
21
6M6-82370-00-00 Plug Cap Assembly |
6M6-82370-00-00 |
from US $49.66 |
||
|
22
|
22
UNA-VAILA-BL-EI
Carburetor Assembly
GROOVE |
UNA-VAILA-BL-EI |
— | ||
|
23
|
23
NGK-B8HS0-00-00 B8Hs Ngk 10Pk Screw10PK SCREW |
NGK-B8HS0-00-00 |
US $6.95 |
||
| replacements | |||||
|
23
|
23
B8H-S0000-00-00 element10PK SCREW |
B8H-S0000-00-00 |
US $4.99 |
||
|
23
|
23
BR8-HS000-00-00 BR8HS NGK SCREW TOP PLUG 4PK (4-PACK)10PK SCREW |
BR8-HS000-00-00 |
US $26.36 |
||
|
24
|
24
6M6-82553-01-00 Extension, Wire Lead |
6M6-82553-01-00 |
US $99.31 |
||
|
25
|
25
6M6-82117-01-00 Wire, Lead |
6M6-82117-01-00 |
US $84.29 |
||
| replacement | |||||
|
25
|
25
62T-82117-01-00 Wire, Lead |
62T-82117-01-00 |
US $84.29 |
||
|
26
|
26
6M6-82117-11-00
Wire, Lead
|
6M6-82117-11-00 |
— | ||
|
27
|
27
6M6-82560-00-00 Thermoswitch Assembly |
6M6-82560-00-00 |
US $170.05 |
||
|
28
|
28
6M6-82117-21-00 Wire, Lead |
6M6-82117-21-00 |
from US $32.90 |
||
|
29
|
29
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
29
|
29
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
29
|
29
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
30
|
30
90119-08907-00 Bolt, With Washer |
90119-08907-00 |
from US $7.08 |
||
|
31
|
31
EU0-65772-30-00 Hook A |
EU0-65772-30-00 |
from US $5.39 |
||
|
32
|
32
90159-06901-00 Screw, With Washer |
90159-06901-00 |
from US $2.55 |
||
|
33
|
33
EU0-68219-00-00 Plate, Battery |
EU0-68219-00-00 |
from US $5.73 |
||
|
34
|
34
BTY-YB16C-LB-00 Yb16Clb Yuasa Batte |
BTY-YB16C-LB-00 |
US $105.86 |
||
| replacement | |||||
|
34
|
34
YB1-6CLB0-00-00
Battery Yb16Cl-B (Cb16Cl-B)
|
YB1-6CLB0-00-00 |
— | ||
|
35
|
35
EU0-68221-00-00 Pad, Battery |
EU0-68221-00-00 |
from US $21.54 |
||
| replacement | |||||
|
35
|
35
F1S-U8221-00-00 Pad, Battery |
F1S-U8221-00-00 |
from US $9 |
||
|
36
|
36
EU0-68221-30-00 Pad, Battery |
EU0-68221-30-00 |
from US $21.54 |
||
|
37
|
37
EU0-68218-03-00 Band, Battery |
EU0-68218-03-00 |
from US $14.73 |
||
| replacement | |||||
|
37
|
37
EU0-68218-04-00 Belt, Battery |
EU0-68218-04-00 |
from US $14.73 |
||
