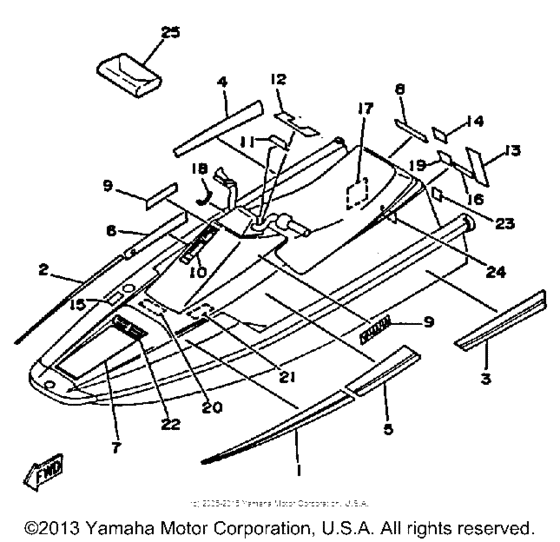

Graphic - tool Diagram Yamaha WR650 Wave Runner LX
- Engine Capacity
- 650
- Year
- 1990
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
FK7-64173-10-00 Graphic A (Lh) |
FK7-64173-10-00 |
US $47.12 |
||
|
2
|
2
FK7-64173-20-00
Graphic A (Rh)
|
FK7-64173-20-00 |
— | ||
|
3
|
3
FK7-64174-10-00
Graphic B (Lh)
|
FK7-64174-10-00 |
— | ||
|
4
|
4
FK7-64174-20-00
Graphic B (Rh)
|
FK7-64174-20-00 |
— | ||
|
5
|
5
FK7-64175-10-00 Graphic C (Lh) |
FK7-64175-10-00 |
from US $23.80 |
||
|
6
|
6
FK7-64175-20-00
Graphic C (Rh)
|
FK7-64175-20-00 |
— | ||
|
7
|
7
FK7-64194-00-00
Graphic D
|
FK7-64194-00-00 |
— | ||
|
8
|
8
EU0-64114-00-00
Mark, Yamaha A
|
EU0-64114-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
EU0-64115-00-00
Mark, Yamaha B
|
EU0-64115-00-00 |
— | ||
|
10
|
10
FK7-64121-00-00
Emblem A
|
FK7-64121-00-00 |
— | ||
|
11
|
11
FK7-64953-00-00 Plate A |
FK7-64953-00-00 |
from US $10.58 |
||
|
12
|
12
EU0-64954-02-00 Plate B, GraphicB, GRAPHIC |
EU0-64954-02-00 |
from US $7.04 |
||
|
13
|
13
EU0-64183-00-00 Label, Caution 1 |
EU0-64183-00-00 |
US $9.72 |
||
|
14
|
14
EU0-64183-30-00
Label, 3
|
EU0-64183-30-00 |
— | ||
| replacement | |||||
|
14
|
14
GK5-6419D-20-00
Label,3
|
GK5-6419D-20-00 |
— | ||
|
15
|
15
EU0-64183-40-00
Label, Warning
|
EU0-64183-40-00 |
— | ||
| replacement | |||||
|
15
|
15
EW2-64161-01-00
Label, Warning
|
EW2-64161-01-00 |
— | ||
|
16
|
16
EU0-64183-50-00
Label, Caution 4
|
EU0-64183-50-00 |
— | ||
|
17
|
17
EU0-64183-60-00
Label, Uscg
|
EU0-64183-60-00 |
— | ||
| replacement | |||||
|
17
|
17
GK5-6418E-00-00
Label,uscg
|
GK5-6418E-00-00 |
— | ||
|
18
|
18
EU0-64183-70-00
Label, Caution 6
|
EU0-64183-70-00 |
— | ||
|
19
|
19
EU0-64183-80-00
Label, Caution
|
EU0-64183-80-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
EU0-64183-90-00
Label, Caution
|
EU0-64183-90-00 |
— | ||
| replacement | |||||
|
20
|
20
EW2-64183-90-00
Label, Caution
|
EW2-64183-90-00 |
— | ||
|
21
|
21
EU0-64183-A0-00 Label, Caution 9 |
EU0-64183-A0-00 |
US $15.25 |
||
|
22
|
22
EU0-64958-40-00 Plate C |
EU0-64958-40-00 |
US $31.45 |
||
| replacement | |||||
|
22
|
22
EU0-64958-41-00 Plate C |
EU0-64958-41-00 |
US $31.45 |
||
|
23
|
23
EU0-64188-00-00 Sticker 9 |
EU0-64188-00-00 |
US $2.35 |
||
|
24
|
24
EU0-64183-R0-00
Label, Caution 8
|
EU0-64183-R0-00 |
— | ||
| replacement | |||||
|
24
|
24
FJ0-64183-90-00
Label, Caution 8
|
FJ0-64183-90-00 |
— | ||
|
25
|
25
EU0-28100-00-00 Tool Set |
EU0-28100-00-00 |
from US $33.20 |
||
| replacements | |||||
|
25
|
25
EU0-65986-13-00 Tool Set |
EU0-65986-13-00 |
from US $33.20 |
||
|
25
|
25
EU0-65986-10-00 Tool Set |
EU0-65986-10-00 |
from US $33.20 |
||
