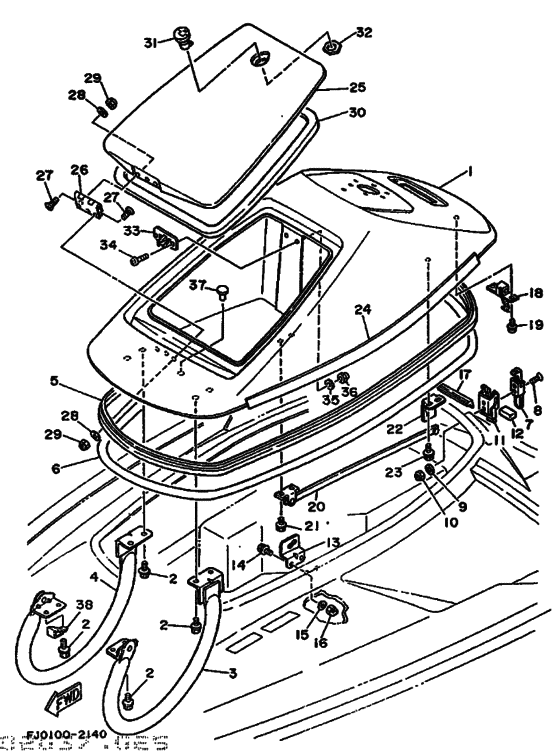

Hull & deck 1 Diagram Yamaha WRA650
- Model code
- FJ0
- Engine Capacity
- 650
- Year
- 1992
- Sales region
- Europe (999)
- Colour
- Metallic Marine Silver (MMS; 00EK)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
FJ0-6516A-00-P0
Engine Hatch Comp
UR FOR JAPAN |
FJ0-6516A-00-P0 |
— | ||
|
1
|
1
FJ0-U516A-00-P0
Engine Hatch Comp
UR YMUS |
FJ0-U516A-00-P0 |
— | ||
|
2
|
2
90119-06913-00 Bolt, With Washer |
90119-06913-00 |
from US $1.98 |
||
|
3
|
3
FJ0-65163-11-00
Hinge, Hatch
|
FJ0-65163-11-00 |
— | ||
|
4
|
4
FJ0-65163-21-00
Hinge, Hatch
|
FJ0-65163-21-00 |
— | ||
|
5
|
5
FJ0-62663-00-00
Packing 1
|
FJ0-62663-00-00 |
— | ||
|
6
|
6
90465-91300-00
Clamp
|
90465-91300-00 |
— | ||
|
7
|
7
EU0-62841-01-00
Bracket, Hatch Lock
|
EU0-62841-01-00 |
— | ||
|
8
|
8
98780-05020-00 Screw, Flat Head |
98780-05020-00 |
from US $1.82 |
||
|
9
|
9
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
10
|
10
95720-05300-00 Nut, Flange |
95720-05300-00 |
from US $1.56 |
||
|
11
|
11
FJ0-62849-00-00
Stopper, Hatch Lock
|
FJ0-62849-00-00 |
— | ||
|
12
|
12
FJ0-62851-00-00
Damper, Hatch Lock
|
FJ0-62851-00-00 |
— | ||
|
13
|
13
FJ0-62884-00-00
Bracket, Hatch Support
|
FJ0-62884-00-00 |
— | ||
|
14
|
14
92580-06020-00 Screw |
92580-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
14
|
14
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
15
|
15
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
16
|
16
95720-06300-00 Nut, Self-Locking |
95720-06300-00 |
from US $1.84 |
||
|
17
|
17
FJ0-65162-00-00 TrimUR FOR JAPAN |
FJ0-65162-00-00 |
US $16.63 |
||
|
17
|
17
GA9-U5162-00-00
Trim
UR YMUS |
GA9-U5162-00-00 |
— | ||
|
18
|
18
FJ0-62843-00-00
Hook, Hatch Lock
|
FJ0-62843-00-00 |
— | ||
|
19
|
19
90159-06901-00 Screw, With Washer |
90159-06901-00 |
from US $2.55 |
||
|
20
|
20
FJ0-62891-00-00 Support, Hatch |
FJ0-62891-00-00 |
from US $87.46 |
||
| replacement | |||||
|
20
|
20
FJ0-62891-01-00 Support, Hatch |
FJ0-62891-01-00 |
from US $87.46 |
||
|
21
|
21
90159-06901-00 Screw, With Washer |
90159-06901-00 |
from US $2.55 |
||
|
22
|
22
FJ0-62892-30-00
Fix Plate
|
FJ0-62892-30-00 |
— | ||
|
23
|
23
90119-06902-00 Bolt, With Washer |
90119-06902-00 |
US $4.73 |
||
| replacement | |||||
|
23
|
23
90119-06940-00
Bolt, With Washer
|
90119-06940-00 |
— | ||
|
24
|
24
FJ0-65162-31-00
Taim
|
FJ0-65162-31-00 |
— | ||
|
25
|
25
FJ0-6517B-00-P0
Lid Engine Hatch
UR FOR JAPAN |
FJ0-6517B-00-P0 |
— | ||
| replacement | |||||
|
25
|
25
GA9-U517B-00-P0
Lid, Engine Room
UR FOR JAPAN |
GA9-U517B-00-P0 |
— | ||
|
25
|
25
GA9-U517B-00-P0
Lid, Engine Room
UR YMUS |
GA9-U517B-00-P0 |
— | ||
|
26
|
26
FJ0-65173-00-00 Support, Engine Room Hatch |
FJ0-65173-00-00 |
from US $35.51 |
||
|
27
|
27
98780-05016-00 Screw, Flat Head |
98780-05016-00 |
from US $2.13 |
||
|
28
|
28
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
29
|
29
95720-05300-00 Nut, Flange |
95720-05300-00 |
from US $1.56 |
||
|
30
|
30
FJ0-62665-00-00
Packing 3
|
FJ0-62665-00-00 |
— | ||
|
31
|
31
FJ0-65172-00-00 Lock, Lid |
FJ0-65172-00-00 |
from US $39.51 |
||
|
32
|
32
90170-22187-00 Nut |
90170-22187-00 |
from US $4.39 |
||
|
33
|
33
FJ0-65174-00-00 Hook, Lid Lock |
FJ0-65174-00-00 |
US $9.95 |
||
|
34
|
34
985-80050-16-00
Screw, Pan Head
|
985-80050-16-00 |
— | ||
| replacement | |||||
|
34
|
34
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
35
|
35
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
36
|
36
95720-05300-00 Nut, Flange |
95720-05300-00 |
from US $1.56 |
||
|
37
|
37
90338-12081-00 Plug |
90338-12081-00 |
from US $2.57 |
||
| replacement | |||||
|
37
|
37
90605-50201-00 Plug(Eu0) |
90605-50201-00 |
from US $3.54 |
||
|
38
|
38
90465-08M33-00 Clamp |
90465-08M33-00 |
from US $6.52 |
||
