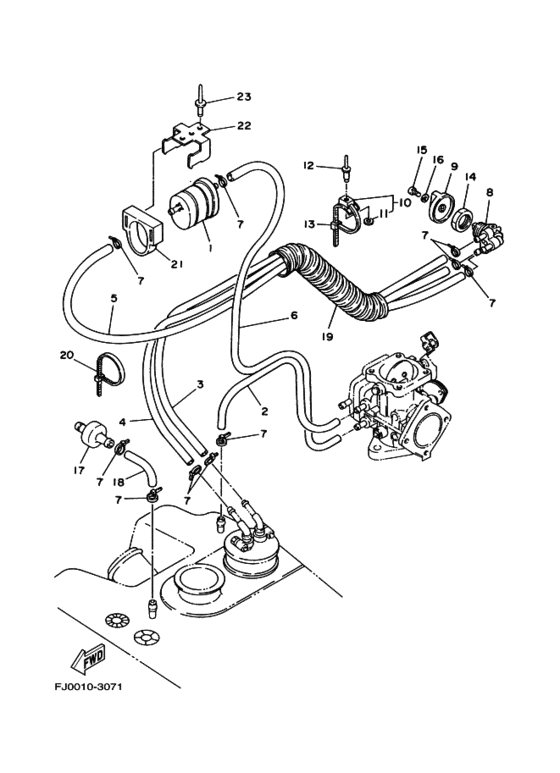

Fuel Diagram Yamaha WRA650
- Model code
- FJ0D
- Engine Capacity
- 650
- Year
- 1993
- Sales region
- Japan (010)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6K8-24560-10-00 Filter AssyＦＩＬＴＥＲ ＡＳＳＹ; |
6K8-24560-10-00 |
from US $40.58 |
||
| replacement | |||||
|
1
|
1
6K8-24560-21-00 Filter AssyＦＩＬＴＥＲ ＡＳＳＹ; |
6K8-24560-21-00 |
from US $38.45 |
||
|
2
|
2
90445-10M30-00 Hose (L780)ＨＯＳＥ; |
90445-10M30-00 |
from US $38.27 |
||
| replacement | |||||
|
2
|
2
90445-10MA9-00 Hose (L1040)ＨＯＳＥ; |
90445-10MA9-00 |
from US $38.27 |
||
|
3
|
3
90445-10M37-00 Hose (L1080)ＨＯＳＥ; |
90445-10M37-00 |
from US $45.75 |
||
| replacements | |||||
|
3
|
3
999-99999-99-00
Not Available
ＨＯＳＥ; |
999-99999-99-00 |
— | ||
|
3
|
3
90445-10M87-00 Hose (L1700)ＨＯＳＥ; |
90445-10M87-00 |
US $45.75 |
||
|
4
|
4
90445-10M38-00 Hose (L1060)ＨＯＳＥ; |
90445-10M38-00 |
from US $45.75 |
||
| replacements | |||||
|
4
|
4
999-99999-99-00
Not Available
ＨＯＳＥ; |
999-99999-99-00 |
— | ||
|
4
|
4
90445-10M87-00 Hose (L1700)ＨＯＳＥ; |
90445-10M87-00 |
US $45.75 |
||
|
5
|
5
90445-10M54-00 Hose (L815)ＨＯＳＥ; |
90445-10M54-00 |
from US $45.75 |
||
| replacements | |||||
|
5
|
5
999-99999-99-00
Not Available
ＨＯＳＥ; |
999-99999-99-00 |
— | ||
|
5
|
5
90445-10M87-00 Hose (L1700)ＨＯＳＥ; |
90445-10M87-00 |
US $45.75 |
||
|
6
|
6
90445-10M45-00 Hose (L400)ＨＯＳＥ; |
90445-10M45-00 |
US $6.38 |
||
| replacement | |||||
|
6
|
6
90445-10M43-00 Hose (L400)ＨＯＳＥ; |
90445-10M43-00 |
from US $6.94 |
||
|
7
|
7
904-6511M-10-00
Clamp
ＣＬＡＭＰ; |
904-6511M-10-00 |
— | ||
| replacements | |||||
|
7
|
7
80L-26397-00-00 BandＣＬＡＭＰ; |
80L-26397-00-00 |
from US $1.17 |
||
|
7
|
7
904-65100-98-00 ClampＣＬＡＭＰ; |
904-65100-98-00 |
from US $1.39 |
||
|
8
|
8
6K8-24500-02-00 Fuel Cock Assy 1ＦＵＥＬ ＣＯＣＫ ＡＳＳＹ １; |
6K8-24500-02-00 |
from US $58.01 |
||
| replacement | |||||
|
8
|
8
6K8-24500-03-00 Fuel Cock Assy 1ＦＵＥＬ ＣＯＣＫ ＡＳＳＹ １; |
6K8-24500-03-00 |
US $113.38 |
||
|
9
|
9
6K8-24524-10-00 Lever, CockＬＥＶＥＲ， ＣＯＣＫ; |
6K8-24524-10-00 |
from US $15.17 |
||
|
10
|
10
90600-91736-00 Clamp Comp (Eu0)ＣＬＡＭＰ; |
90600-91736-00 |
from US $1.98 |
||
|
11
|
11
90201-05925-00
Washer, Plain
．ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-05925-00 |
— | ||
|
12
|
12
90267-48925-00 Rivet, BlindＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-48925-00 |
from US $1.94 |
||
| replacement | |||||
|
12
|
12
90267-48802-00 Rivet, BlindＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-48802-00 |
from US $1.84 |
||
|
13
|
13
90601-20006-00 Band, HoseＮＹＬＯＮ ＣＬＩＰ １; |
90601-20006-00 |
from US $2.27 |
||
| replacement | |||||
|
13
|
13
90601-20009-00 Band (Eu0)ＮＹＬＯＮ ＣＬＩＰ １; |
90601-20009-00 |
from US $2.27 |
||
|
14
|
14
90170-22M11-00
Nut
ＮＵＴ; |
90170-22M11-00 |
— | ||
|
15
|
15
985-80040-10-00 Screw, Pan HeadＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ; |
985-80040-10-00 |
from US $1.07 |
||
|
16
|
16
929-90046-00-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
929-90046-00-00 |
from US $1.07 |
||
|
17
|
17
EU0-67767-30-00 Check, ValveＣＨＥＣＫ ＶＡＬＶＥ; |
EU0-67767-30-00 |
from US $24.94 |
||
| replacement | |||||
|
17
|
17
EU0-67767-31-00 Check ValveＣＨＥＣＫ ＶＡＬＶＥ; |
EU0-67767-31-00 |
from US $24.94 |
||
|
18
|
18
EU0-67856-00-00 Hose, Air Vent 3ＨＯＳＥ， ＡＩＲ ＶＥＮＴ １; |
EU0-67856-00-00 |
US $8.48 |
||
|
19
|
19
FJ0-6773D-00-00
Tube
ＴＵＢＥ; |
FJ0-6773D-00-00 |
— | ||
|
20
|
20
90601-20006-00 Band, HoseＮＹＬＯＮ ＣＬＩＰ １; |
90601-20006-00 |
from US $2.27 |
||
| replacement | |||||
|
20
|
20
90601-20009-00 Band (Eu0)ＮＹＬＯＮ ＣＬＩＰ １; |
90601-20009-00 |
from US $2.27 |
||
|
21
|
21
EU0-67817-00-00 Holder, FilterＨＯＬＤＥＲ; |
EU0-67817-00-00 |
from US $8.93 |
||
|
22
|
22
EU0-67816-30-00 Bracket, Fuel FilterＢＲＡＣＫＥＴ， ＦＵＥＬ ＦＩＬＴＥＲ; |
EU0-67816-30-00 |
from US $13.32 |
||
| replacement | |||||
|
22
|
22
FN8-67816-00-00 Bracket, Fuel FilterＢＲＡＣＫＥＴ， ＦＵＥＬ ＦＩＬＴＥＲ; |
FN8-67816-00-00 |
from US $13.32 |
||
|
23
|
23
90267-48900-00 Rivet, BlindＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-48900-00 |
from US $4.77 |
||
| replacements | |||||
|
23
|
23
90267-48938-00 Rivet (Eu0)ＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-48938-00 |
from US $3.72 |
||
|
23
|
23
90267-489U1-00 Rivet,blindＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-489U1-00 |
from US $4.77 |
||
