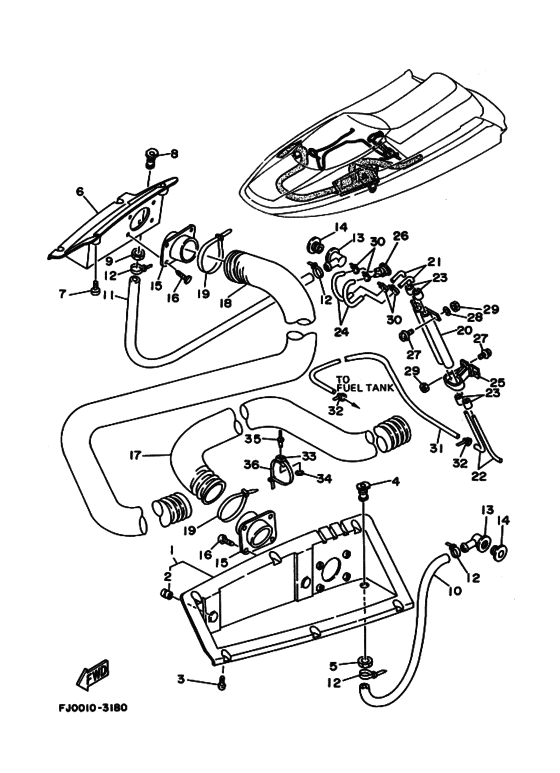

Ventilation Diagram Yamaha WRA650
- Model code
- FJ0D
- Engine Capacity
- 650
- Year
- 1993
- Sales region
- Japan (010)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
FJ0-62135-10-00 Cover, Ventilator 1ＣＯＶＥＲ， ＶＥＮＴＩＬＡＴＯＲ ; ＬＨ; ＵＲ ＥＸＣＬＵＳＩＶＥ ＪＡＰＡＮ |
FJ0-62135-10-00 |
from US $108.10 |
||
|
1
|
1
GA9-U213B-00-00
Cover,ventilator 1
ＣＯＶＥＲ， ＶＥＮＴＩＬＡＴＯＲ ; ＬＨ; ＵＲ ＹＭＵＳ |
GA9-U213B-00-00 |
— | ||
|
2
|
2
90179-08927-00 Nut．ＮＵＴ， ＩＮＳＥＲＴ; |
90179-08927-00 |
US $9.74 |
||
|
3
|
3
90149-059U1-00
Screw, Panhead (97701-50515-00)
ＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ ＴＡＰＰＩＮＧ; ＵＲ ＹＭＵＳ |
90149-059U1-00 |
— | ||
|
3
|
3
97780-50116-00 Screw, TappingＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ ＴＡＰＰＩＮＧ; ＵＲ ＥＸＣＬＵＳＩＶＥ ＪＡＰＡＮ |
97780-50116-00 |
from US $1.52 |
||
|
4
|
4
EU0-62241-00-00 Drain, CockpitＢＯＤＹ， ＤＲＡＩＮ １; |
EU0-62241-00-00 |
US $18.22 |
||
|
5
|
5
EU0-62241-30-00 Nut, Drain 1ＮＵＴ， ＤＲＡＩＮ １; |
EU0-62241-30-00 |
from US $10.77 |
||
|
6
|
6
FJ0-62135-20-00 Cover, Ventilator 1ＣＯＶＥＲ， ＶＥＮＴＩＬＡＴＯＲ ; ＲＨ; ＵＲ ＥＸＣＬＵＳＩＶＥ ＪＡＰＡＮ |
FJ0-62135-20-00 |
from US $108.10 |
||
|
6
|
6
GA9-U213C-00-00 Cover,ventilator 2ＣＯＶＥＲ， ＶＥＮＴＩＬＡＴＯＲ ; ＲＨ; ＵＲ ＹＭＵＳ |
GA9-U213C-00-00 |
US $108.10 |
||
| replacement | |||||
|
6
|
6
FJ0-62135-20-00 Cover, Ventilator 1ＣＯＶＥＲ， ＶＥＮＴＩＬＡＴＯＲ ; ＲＨ; ＵＲ ＹＭＵＳ |
FJ0-62135-20-00 |
from US $108.10 |
||
|
7
|
7
90149-059U1-00
Screw, Panhead (97701-50515-00)
ＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ ＴＡＰＰＩＮＧ; ＵＲ ＹＭＵＳ |
90149-059U1-00 |
— | ||
|
7
|
7
97780-50116-00 Screw, TappingＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ ＴＡＰＰＩＮＧ; ＵＲ ＥＸＣＬＵＳＩＶＥ ＪＡＰＡＮ |
97780-50116-00 |
from US $1.52 |
||
|
8
|
8
EU0-62241-00-00 Drain, CockpitＢＯＤＹ， ＤＲＡＩＮ １; |
EU0-62241-00-00 |
US $18.22 |
||
|
9
|
9
EU0-62241-30-00 Nut, Drain 1ＮＵＴ， ＤＲＡＩＮ １; |
EU0-62241-30-00 |
from US $10.77 |
||
|
10
|
10
90669-03010-00 Hose(Vinyl) <Dm>ＨＯＳＥ; |
90669-03010-00 |
from US $46.28 |
||
| replacement | |||||
|
10
|
10
906-69030-30-00 elementＨＯＳＥ; |
906-69030-30-00 |
from US $46.28 |
||
|
11
|
11
90669-03010-00 Hose(Vinyl) <Dm>ＨＯＳＥ; |
90669-03010-00 |
from US $46.28 |
||
| replacement | |||||
|
11
|
11
906-69030-30-00 elementＨＯＳＥ; |
906-69030-30-00 |
from US $46.28 |
||
|
12
|
12
90601-20005-00 BandＢＡＮＤ; ＵＲ ＥＸＣＬＵＳＩＶＥ ＪＡＰＡＮ |
90601-20005-00 |
from US $1.98 |
||
|
12
|
12
90601-200U1-00 BandＢＡＮＤ; ＵＲ ＹＭＵＳ |
90601-200U1-00 |
from US $2.27 |
||
|
13
|
13
FN8-6224E-00-00 Body, Drain 3ＢＯＤＹ， ＤＲＡＩＮ ３; |
FN8-6224E-00-00 |
from US $10.95 |
||
|
14
|
14
FN8-6224F-01-00 Body, Drain 4ＢＯＤＹ， ＤＲＡＩＮ ４; |
FN8-6224F-01-00 |
from US $15.30 |
||
|
15
|
15
FJ0-62127-00-00
Base, Air Intake
ＢＡＳＥ， ＡＩＲ ＩＮＴＡＫＥ; |
FJ0-62127-00-00 |
— | ||
|
16
|
16
97780-50516-00 Screw, Panhead Tapping (683)ＳＣＲＥＷ; |
97780-50516-00 |
from US $1.42 |
||
| replacement | |||||
|
16
|
16
97780-50116-00 Screw, TappingＳＣＲＥＷ; |
97780-50116-00 |
from US $1.52 |
||
|
17
|
17
FJ0-62136-10-00
Cover,ventilator 2
ＶＥＮＴＩＬＡＴＩＯＮ ＨＯＳＥ ; ＬＨ |
FJ0-62136-10-00 |
— | ||
|
18
|
18
FJ0-62136-20-00
Cover,ventilator 2
ＶＥＮＴＩＬＡＴＩＯＮ ＨＯＳＥ ; ＲＨ |
FJ0-62136-20-00 |
— | ||
|
19
|
19
90601-20008-00 Nylon Clip 1ＢＡＮＤ; |
90601-20008-00 |
from US $5.81 |
||
|
20
|
20
FJ0-62149-00-00
Pipe, Ventilation
ＰＩＰＥ， ＶＥＮＴＩＬＡＴＩＯＮ; |
FJ0-62149-00-00 |
— | ||
|
21
|
21
FJ0-62156-00-00 PipeＥＬＢＯＷ， ＶＥＮＴＩＬＡＴＯＲ １１; |
FJ0-62156-00-00 |
US $6.77 |
||
|
22
|
22
EU0-62156-32-00
Elbow Vent 12
ＥＬＢＯＷ， ＶＥＮＴＩＬＡＴＯＲ １２; |
EU0-62156-32-00 |
— | ||
|
23
|
23
EU0-62155-00-00
Cap
ＣＡＰ; |
EU0-62155-00-00 |
— | ||
|
24
|
24
90445-09905-00 Hose (L180)ＨＯＳＥ; |
90445-09905-00 |
from US $4.11 |
||
| replacement | |||||
|
24
|
24
90445-094K7-00 Hose (L180)ＨＯＳＥ; |
90445-094K7-00 |
from US $4.11 |
||
|
25
|
25
FJ0-62151-00-00
Louver, Lead
ＳＵＰＰＯＲＴ; |
FJ0-62151-00-00 |
— | ||
|
26
|
26
FJ0-6215F-00-00
Nipple
ＮＩＰＰＬＥ; |
FJ0-6215F-00-00 |
— | ||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
ＮＩＰＰＬＥ; |
999-99999-99-00 |
— | ||
|
27
|
27
90159-05900-00 Screw, With WasherＳＣＲＥＷ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90159-05900-00 |
from US $2.27 |
||
|
28
|
28
92990-05200-00 Washer, PlainＷＡＳＨＥＲ， ＰＬＡＩＮ; |
92990-05200-00 |
from US $1.56 |
||
|
29
|
29
95720-05300-00 Nut, FlangeＮＵＴ; |
95720-05300-00 |
from US $1.56 |
||
|
30
|
30
904-6511M-10-00
Clamp
ＣＬＩＰ; |
904-6511M-10-00 |
— | ||
| replacements | |||||
|
30
|
30
80L-26397-00-00 BandＣＬＩＰ; |
80L-26397-00-00 |
from US $1.40 |
||
|
30
|
30
904-65100-98-00 ClampＣＬＩＰ; |
904-65100-98-00 |
from US $1.39 |
||
|
31
|
31
FJ0-67856-30-00
Hose, Air Vent 3
ＨＯＳＥ， ＡＩＲ ＶＥＮＴ ４; |
FJ0-67856-30-00 |
— | ||
|
32
|
32
904-6511M-10-00
Clamp
ＣＬＡＭＰ; |
904-6511M-10-00 |
— | ||
| replacements | |||||
|
32
|
32
80L-26397-00-00 BandＣＬＡＭＰ; |
80L-26397-00-00 |
from US $1.40 |
||
|
32
|
32
904-65100-98-00 ClampＣＬＡＭＰ; |
904-65100-98-00 |
from US $1.39 |
||
|
33
|
33
90600-91737-00 ClampＣＬＡＭＰ; |
90600-91737-00 |
from US $2.81 |
||
|
34
|
34
90201-05925-00
Washer, Plain
ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-05925-00 |
— | ||
|
35
|
35
90267-48925-00 Rivet, BlindＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-48925-00 |
from US $1.94 |
||
| replacement | |||||
|
35
|
35
90267-48802-00 Rivet, BlindＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-48802-00 |
from US $1.84 |
||
|
36
|
36
90601-20008-00 Nylon Clip 1ＮＹＬＯＮ ＣＬＩＰ １; |
90601-20008-00 |
from US $5.81 |
||
