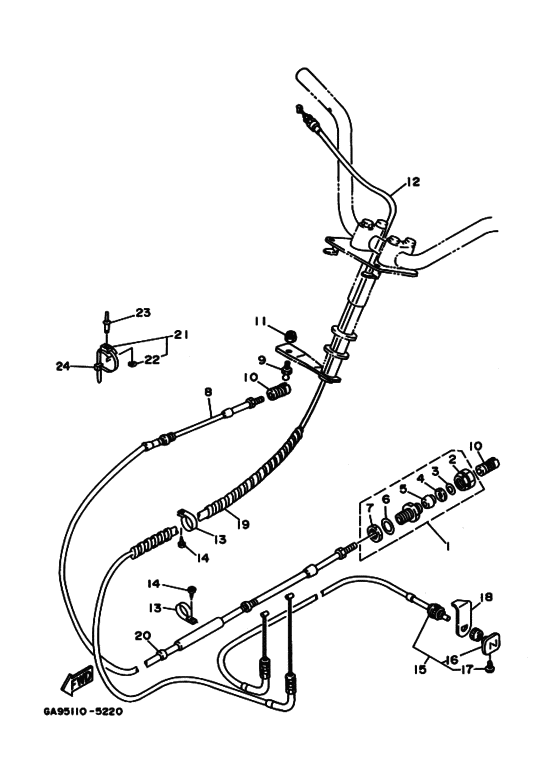

Control cable Diagram Yamaha WRA650
- Model code
- GA9B
- Engine Capacity
- 650
- Year
- 1996
- Sales region
- Europe (010)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
EU0-67267-00-00 Connector,cable |
EU0-67267-00-00 |
from US $38.96 |
||
|
2
|
2
EU0-6E694-00-00
Cap
|
EU0-6E694-00-00 |
— | ||
|
3
|
3
EU0-61446-00-00 Washer30 |
EU0-61446-00-00 |
from US $5.97 |
||
|
4
|
4
EU0-61486-00-00 Stopper |
EU0-61486-00-00 |
from US $3.20 |
||
|
5
|
5
EU0-61435-00-00 Seal, Pipe 3030 |
EU0-61435-00-00 |
from US $5.41 |
||
|
6
|
6
EU0-61438-00-00 Packing |
EU0-61438-00-00 |
from US $4.04 |
||
|
7
|
7
EU0-62241-3G-00
Nut, Drain 1
|
EU0-62241-3G-00 |
— | ||
|
8
|
8
FJ0-61481-00-00 Cable, Steering |
FJ0-61481-00-00 |
from US $277.40 |
||
|
9
|
9
EU0-61461-01-00
Stood, Joint Ball
UR |
EU0-61461-01-00 |
— | ||
|
9
|
9
EU0-U1461-01-00
Stud, Joint Ball
UR YMUS |
EU0-U1461-01-00 |
— | ||
| replacements | |||||
|
9
|
9
EU0-61461-01-00
Stood, Joint Ball
UR YMUS |
EU0-61461-01-00 |
— | ||
|
9
|
9
EU0-61461-02-00 Stud, Joint BallUR YMUS |
EU0-61461-02-00 |
from US $18.20 |
||
|
9
|
9
EU0-U1461-02-00
Stud, Joint Ball
UR YMUS |
EU0-U1461-02-00 |
— | ||
|
9
|
9
EU0-U1461-10-00 SHAFT, JOINT BALLUR YMUS |
EU0-U1461-10-00 |
from US $27.20 |
||
|
10
|
10
EU0-61461-30-00 Shaft,joint BallUR |
EU0-61461-30-00 |
from US $26.07 |
||
| replacement | |||||
|
10
|
10
F0V-U1461-00-00 Stud, Joint BallUR |
F0V-U1461-00-00 |
from US $51.53 |
||
|
10
|
10
EUG-U1461-30-00
Shaft, Joint Ball
UR YMUS |
EUG-U1461-30-00 |
— | ||
|
11
|
11
95780-06300-00 P58 Nut, Nylon |
95780-06300-00 |
from US $4.11 |
||
|
12
|
12
EU0-67252-02-00 Cable, Throttle 1UR |
EU0-67252-02-00 |
from US $161.98 |
||
|
12
|
12
EU0-U7252-01-00 Cable, Throttle 1UR YMUS |
EU0-U7252-01-00 |
from US $170.08 |
||
| replacement | |||||
|
12
|
12
EU0-67252-02-00 Cable, Throttle 1UR YMUS |
EU0-67252-02-00 |
from US $161.98 |
||
|
13
|
13
90600-918U3-00 Clip, Nylon 1816; YMUS |
90600-918U3-00 |
from US $0.95 |
||
|
14
|
14
97780-50116-00 Screw, Tapping |
97780-50116-00 |
from US $1.52 |
||
|
15
|
15
FJ0-67242-30-00
Cable, Choke
UR |
FJ0-67242-30-00 |
— | ||
|
15
|
15
GA9-U7242-30-00
Cable, Choke
UR YMUS |
GA9-U7242-30-00 |
— | ||
| replacements | |||||
|
15
|
15
GA9-U7242-32-00
Cable, Choke
UR YMUS |
GA9-U7242-32-00 |
— | ||
|
15
|
15
GA9-U7242-31-00
Cable, Choke
UR YMUS |
GA9-U7242-31-00 |
— | ||
|
16
|
16
EW2-67243-00-00 Knob, ChokeUR |
EW2-67243-00-00 |
from US $22.25 |
||
|
16
|
16
GA9-U724C-00-00
Knob, Choke
UR YMUS |
GA9-U724C-00-00 |
— | ||
| replacement | |||||
|
16
|
16
GP7-U724C-00-00
Choke Knob
UR YMUS |
GP7-U724C-00-00 |
— | ||
|
17
|
17
90149-03930-00 ScrewUR |
90149-03930-00 |
from US $10.48 |
||
|
17
|
17
GA9-U724D-00-00 ScrewUR YMUS |
GA9-U724D-00-00 |
from US $5.73 |
||
| replacement | |||||
|
17
|
17
GP7-U724D-00-00 Screw, KnobUR YMUS |
GP7-U724D-00-00 |
US $5.29 |
||
|
18
|
18
FJ0-67243-00-00 Knob, Choke |
FJ0-67243-00-00 |
from US $9.63 |
||
|
19
|
19
90699-36U01-00 Spirap,11YMUS |
90699-36U01-00 |
US $13.88 |
||
| replacement | |||||
|
19
|
19
90699-36100-00 Spiral TubeYMUS |
90699-36100-00 |
from US $13.88 |
||
|
20
|
20
FJ0-67578-00-00
Packing, Hose 2
|
FJ0-67578-00-00 |
— | ||
|
21
|
21
90600-91736-00 Clamp Comp (Eu0) |
90600-91736-00 |
from US $1.98 |
||
|
22
|
22
90201-05925-00
Washer, Plain
|
90201-05925-00 |
— | ||
|
23
|
23
90267-48925-00 Rivet, Blind |
90267-48925-00 |
from US $1.94 |
||
| replacement | |||||
|
23
|
23
90267-48802-00 Rivet, Blind |
90267-48802-00 |
from US $1.84 |
||
|
24
|
24
90601-20006-00 Band, Hose |
90601-20006-00 |
from US $2.27 |
||
| replacement | |||||
|
24
|
24
90601-20009-00 Band (Eu0) |
90601-20009-00 |
from US $2.27 |
||
