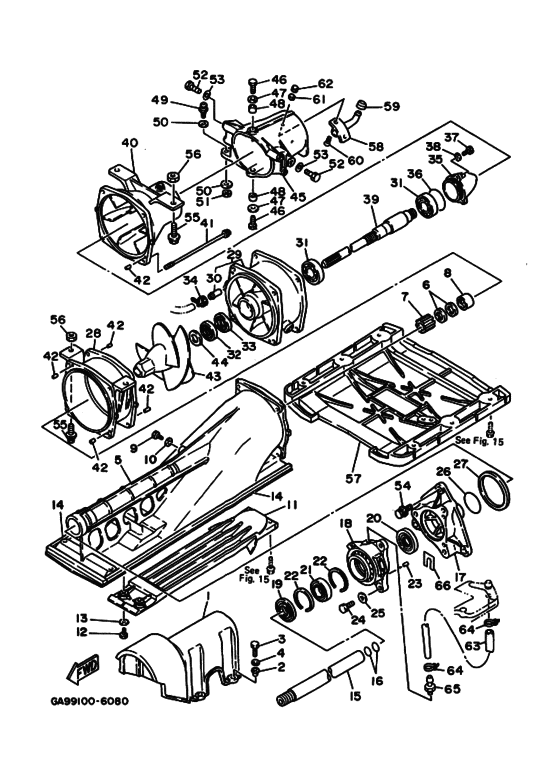

Jet unit Diagram Yamaha WRA650
- Model code
- GA9B
- Engine Capacity
- 650
- Year
- 1996
- Sales region
- Europe (010)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6R8-51381-01-00
Cover
|
6R8-51381-01-00 |
— | ||
|
2
|
2
90387-06M70-00 Collar |
90387-06M70-00 |
from US $4.39 |
||
|
3
|
3
97395-06020-00 Bolt, Hexagon |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
3
|
3
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
4
|
4
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
5
|
5
6R8-51311-01-94
Duct, Intake
|
6R8-51311-01-94 |
— | ||
| replacement | |||||
|
5
|
5
6R8-51311-02-94
Duct, Intake
|
6R8-51311-02-94 |
— | ||
|
6
|
6
93102-18M35-00 Oil Seal |
93102-18M35-00 |
from US $10.63 |
||
|
7
|
7
6R8-45318-00-00 Bushing, Drive Shaft |
6R8-45318-00-00 |
US $49.24 |
||
|
8
|
8
6R8-51348-00-5B Spacer |
6R8-51348-00-5B |
US $49.45 |
||
| replacement | |||||
|
8
|
8
6R8-51348-02-94 Spacer |
6R8-51348-02-94 |
US $30.91 |
||
|
9
|
9
970-95060-25-00
Bolt
|
970-95060-25-00 |
— | ||
| replacement | |||||
|
9
|
9
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
10
|
10
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
11
|
11
6R8-51333-00-5B Screen, Intake |
6R8-51333-00-5B |
from US $107.63 |
||
| replacement | |||||
|
11
|
11
6R8-51333-01-CA Screen, Intake |
6R8-51333-01-CA |
from US $76.44 |
||
|
12
|
12
97095-06018-00 Bolt |
97095-06018-00 |
from US $4.11 |
||
| replacement | |||||
|
12
|
12
97080-06018-00 Bolt (Fj0) |
97080-06018-00 |
from US $4.11 |
||
|
13
|
13
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
14
|
14
6R8-51367-01-00 Felt, Packing |
6R8-51367-01-00 |
from US $10.20 |
||
|
15
|
15
6R8-51323-03-00
Shaft, Coupler
|
6R8-51323-03-00 |
— | ||
| replacement | |||||
|
15
|
15
6R8-51323-10-00
Shaft, Coupler
|
6R8-51323-10-00 |
— | ||
|
16
|
16
93210-17MA4-00 O-Ring |
93210-17MA4-00 |
from US $1.70 |
||
|
17
|
17
6R8-45332-00-94
Housing, Bearing
|
6R8-45332-00-94 |
— | ||
|
18
|
18
6R7-45332-02-9M Housing, Bearing |
6R7-45332-02-9M |
from US $198.95 |
||
| replacement | |||||
|
18
|
18
6R7-45332-03-CA FLANGE, COUPLING |
6R7-45332-03-CA |
from US $120.90 |
||
|
19
|
19
93101-25M55-00 Oil Seal |
93101-25M55-00 |
from US $13.18 |
||
|
20
|
20
93101-25M56-00 Oil Seal |
93101-25M56-00 |
US $19.56 |
||
| replacement | |||||
|
20
|
20
93101-24001-00 Oil Seal |
93101-24001-00 |
from US $19.56 |
||
|
21
|
21
93306-205U6-00 Bearing |
93306-205U6-00 |
from US $47.25 |
||
|
22
|
22
93430-47M04-00 Circlip |
93430-47M04-00 |
from US $5.06 |
||
|
23
|
23
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
24
|
24
97095-08025-00 Bolt |
97095-08025-00 |
from US $3.38 |
||
| replacement | |||||
|
24
|
24
98980-08025-00 Screw, Bind (98902-08025-00) |
98980-08025-00 |
from US $5.68 |
||
|
25
|
25
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
25
|
25
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
26
|
26
93210-35M72-00 O-Ring |
93210-35M72-00 |
from US $7.65 |
||
|
27
|
27
6K8-45127-00-00 Seal |
6K8-45127-00-00 |
from US $11.19 |
||
|
28
|
28
6R8-51312-00-94 Housing, Impeller |
6R8-51312-00-94 |
from US $482.26 |
||
| replacement | |||||
|
28
|
28
6R8-51312-03-94 Housing, Impeller |
6R8-51312-03-94 |
from US $508.25 |
||
|
29
|
29
6R7-51315-00-94
Duct, Impeller
|
6R7-51315-00-94 |
— | ||
| replacement | |||||
|
29
|
29
6R7-51315-01-94
Duct, Impeller
|
6R7-51315-01-94 |
— | ||
|
30
|
30
6K8-51129-00-00 Nipple |
6K8-51129-00-00 |
from US $7.65 |
||
|
31
|
31
933-06205-U0-00
Bearing
|
933-06205-U0-00 |
— | ||
| replacement | |||||
|
31
|
31
93306-205U1-00 Bearing |
93306-205U1-00 |
from US $23.24 |
||
|
32
|
32
93102-25M34-00 Oil Seal |
93102-25M34-00 |
from US $14.57 |
||
|
33
|
33
93101-25M50-00 Oil Seal |
93101-25M50-00 |
from US $9.15 |
||
|
34
|
34
90601-110UC-00 Band, Hose 11YMUS |
90601-110UC-00 |
US $4.56 |
||
|
35
|
35
62T-51326-00-00 Cap |
62T-51326-00-00 |
from US $61.90 |
||
|
36
|
36
93210-46M16-00 O-Ring |
93210-46M16-00 |
from US $4.72 |
||
|
37
|
37
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
37
|
37
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
37
|
37
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
38
|
38
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
39
|
39
6R8-45511-00-00 Shaft, Drive |
6R8-45511-00-00 |
US $573.21 |
||
|
40
|
40
6R8-51318-00-5B
Nozzle
|
6R8-51318-00-5B |
— | ||
| replacement | |||||
|
40
|
40
6R8-51318-01-94
Nozzle
|
6R8-51318-01-94 |
— | ||
|
41
|
41
90101-06M04-00 Bolt |
90101-06M04-00 |
from US $14.45 |
||
|
42
|
42
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
43
|
43
6R7-51321-00-94
Impeller
|
6R7-51321-00-94 |
— | ||
| replacement | |||||
|
43
|
43
6R7-51321-00-8S Impeller |
6R7-51321-00-8S |
from US $172.70 |
||
|
44
|
44
62T-51348-00-00 Spacer |
62T-51348-00-00 |
from US $24.51 |
||
|
45
|
45
6R8-51313-02-5B
Nozzle,deflector
|
6R8-51313-02-5B |
— | ||
| replacement | |||||
|
45
|
45
6R8-51313-03-94
Nozzle, Deflector
|
6R8-51313-03-94 |
— | ||
|
46
|
46
97095-08018-00 Bolt, Hexagon |
97095-08018-00 |
from US $3.47 |
||
|
47
|
47
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
47
|
47
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
48
|
48
90387-08M08-00 Collar |
90387-08M08-00 |
from US $6.40 |
||
| replacement | |||||
|
48
|
48
90387-08M27-00
Collar
|
90387-08M27-00 |
— | ||
|
49
|
49
6R7-42316-00-00 Bolt, Joint |
6R7-42316-00-00 |
from US $19.69 |
||
|
50
|
50
90201-06M31-00 Washer, Plate |
90201-06M31-00 |
from US $1.81 |
||
|
51
|
51
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
51
|
51
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
52
|
52
97095-08020-00 Bolt |
97095-08020-00 |
from US $3.64 |
||
|
53
|
53
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
53
|
53
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
54
|
54
90119-08907-00 Bolt, With Washer |
90119-08907-00 |
from US $7.08 |
||
|
55
|
55
90119-109U8-00 Bolt, With WasherYMUS |
90119-109U8-00 |
from US $6.86 |
||
|
56
|
56
90179-10925-00 Nut |
90179-10925-00 |
from US $7.37 |
||
|
57
|
57
FJ0-62731-01-00
Plate 2
|
FJ0-62731-01-00 |
— | ||
|
58
|
58
626-62693-00-00
Spout
|
626-62693-00-00 |
— | ||
|
59
|
59
6R8-62695-00-00 Cap, Spout |
6R8-62695-00-00 |
from US $4.53 |
||
|
60
|
60
98780-05012-00 Screw, Flat Head |
98780-05012-00 |
from US $2.69 |
||
|
61
|
61
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
62
|
62
95380-05800-00 Nut |
95380-05800-00 |
from US $1.56 |
||
|
63
|
63
90445-09M21-00 Hose (L445) |
90445-09M21-00 |
from US $14.73 |
||
|
64
|
64
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
64
|
64
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
64
|
64
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
65
|
65
61L-45378-00-00 Nipple, Hose |
61L-45378-00-00 |
from US $8.08 |
||
|
66
|
66
GD0-67249-00-05 ShimUR |
GD0-67249-00-05 |
from US $1.15 |
||
| replacements | |||||
|
66
|
66
GD0-67249-A0-00 Shim (T=0.5)UR |
GD0-67249-A0-00 |
from US $1.56 |
||
|
66
|
66
999-99999-99-00
Not Available
UR |
999-99999-99-00 |
— | ||
|
66
|
66
GD0-U7249-00-05 Shim (T=0.5)UR YMUS |
GD0-U7249-00-05 |
from US $1.56 |
||
|
66
|
66
GD0-67249-00-10 ShimUR |
GD0-67249-00-10 |
from US $1.56 |
||
| replacements | |||||
|
66
|
66
999-99999-99-00
Not Available
UR |
999-99999-99-00 |
— | ||
|
66
|
66
GD0-67249-B0-00 Shim (T=1.0)Ｔ＝１．０ UR |
GD0-67249-B0-00 |
from US $1.56 |
||
|
66
|
66
GD0-U7249-00-10 Shim (T=1.0)UR YMUS |
GD0-U7249-00-10 |
from US $1.56 |
||
| replacement | |||||
|
66
|
66
GD0-U7249-00-05 Shim (T=0.5)UR YMUS |
GD0-U7249-00-05 |
from US $1.56 |
||
