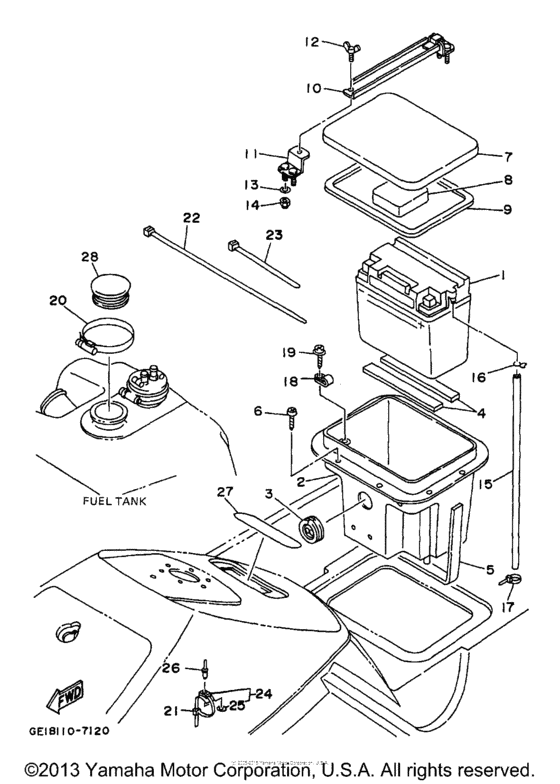

Electrical (2) Diagram Yamaha WRA700 Wave Runner lll
- Engine Capacity
- 700
- Year
- 1997
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
EU0-82110-77-00
Yb16Clb Yuasa Batte
|
EU0-82110-77-00 |
— | ||
| replacements | |||||
|
1
|
1
BTY-CB16C-LB-00
Battery cb16cl-b
|
BTY-CB16C-LB-00 |
— | ||
|
1
|
1
YB1-6CLB0-00-00
Battery Yb16Cl-B (Cb16Cl-B)
|
YB1-6CLB0-00-00 |
— | ||
|
2
|
2
GA9-U8211-01-00
Battery Case Comp
|
GA9-U8211-01-00 |
— | ||
| replacement | |||||
|
2
|
2
FJ0-68211-00-00
Case, Battery
|
FJ0-68211-00-00 |
— | ||
|
3
|
3
FJ0-68222-01-00 Grommet |
FJ0-68222-01-00 |
US $9.11 |
||
|
4
|
4
FJ0-68221-00-00
Pad, Battery
|
FJ0-68221-00-00 |
— | ||
|
5
|
5
FJ0-68221-30-00
Pad, Battery
|
FJ0-68221-30-00 |
— | ||
|
6
|
6
90149-05984-00 Screw |
90149-05984-00 |
from US $2.83 |
||
|
7
|
7
GA9-U8212-00-00 Rid, Battery Case |
GA9-U8212-00-00 |
US $63.25 |
||
|
8
|
8
FJ0-68221-40-00 Pad, Battery |
FJ0-68221-40-00 |
US $39.60 |
||
|
9
|
9
FJ0-68221-50-00
Pad, Battery
|
FJ0-68221-50-00 |
— | ||
|
10
|
10
FJ0-68228-00-00
Holder, Fuse
|
FJ0-68228-00-00 |
— | ||
|
11
|
11
FJ0-68229-00-00
End Plate
|
FJ0-68229-00-00 |
— | ||
|
12
|
12
90122-05909-00
Bolt, Wing
|
90122-05909-00 |
— | ||
|
13
|
13
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
14
|
14
95720-05300-00 Nut, Flange |
95720-05300-00 |
from US $1.56 |
||
|
15
|
15
FJ0-67856-40-00 Hose, Air Vent 3 |
FJ0-67856-40-00 |
from US $15.17 |
||
|
16
|
16
90467-08M10-00 Clip |
90467-08M10-00 |
US $1.70 |
||
| replacement | |||||
|
16
|
16
90467-08004-00 Clip |
90467-08004-00 |
from US $1.70 |
||
|
17
|
17
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
17
|
17
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
17
|
17
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
18
|
18
90600-913U2-00 Clip, Nylon 1313 |
90600-913U2-00 |
US $1.25 |
||
|
19
|
19
97780-40116-00 Screw, Tapping |
97780-40116-00 |
from US $2.55 |
||
|
20
|
20
90601-162U5-00 Band, Hose 6262 YMUS |
90601-162U5-00 |
from US $10.06 |
||
|
21
|
21
90601-20006-00 Band, Hose |
90601-20006-00 |
from US $2.27 |
||
| replacement | |||||
|
21
|
21
90601-20009-00 Band (Eu0) |
90601-20009-00 |
from US $2.27 |
||
|
22
|
22
90601-20008-00 Nylon Clip 1 |
90601-20008-00 |
from US $5.81 |
||
|
23
|
23
90601-20006-00 Band, Hose |
90601-20006-00 |
from US $2.27 |
||
| replacement | |||||
|
23
|
23
90601-20009-00 Band (Eu0) |
90601-20009-00 |
from US $2.27 |
||
|
24
|
24
90600-91736-00 Clamp Comp (Eu0) |
90600-91736-00 |
from US $1.98 |
||
|
25
|
25
90201-05925-00
Washer, Plain
|
90201-05925-00 |
— | ||
|
26
|
26
90267-48925-00 Rivet, Blind |
90267-48925-00 |
from US $1.94 |
||
| replacement | |||||
|
26
|
26
90267-48802-00 Rivet, Blind |
90267-48802-00 |
from US $1.84 |
||
|
27
|
27
GA9-U4121-00-00
Emblem A
|
GA9-U4121-00-00 |
— | ||
|
28
|
28
FN8-6771K-00-00 Cover |
FN8-6771K-00-00 |
from US $15.44 |
||
