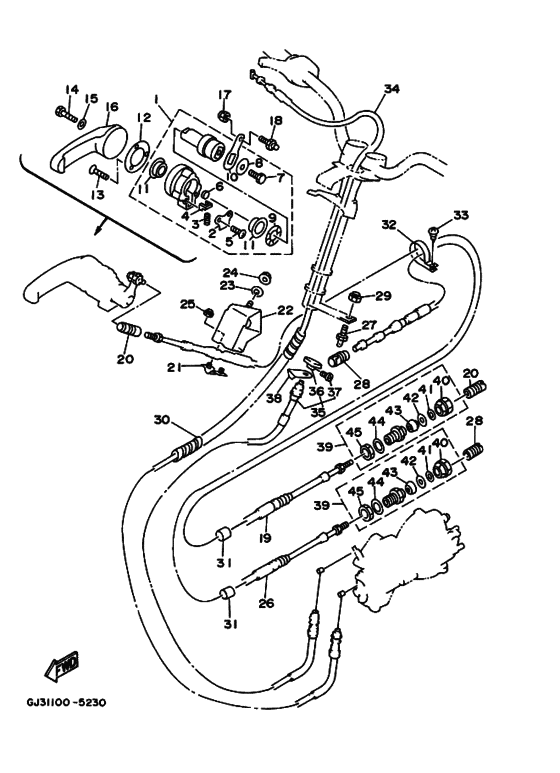

Control cable Diagram Yamaha WVT700
- Model code
- GJ34
- Engine Capacity
- 700
- Year
- 1995
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
GJ3-6134B-00-00 Lever Sub-Assy |
GJ3-6134B-00-00 |
US $223.70 |
||
| replacement | |||||
|
1
|
1
GJ3-6134B-01-00
Lever Sub-Assembly
|
GJ3-6134B-01-00 |
— | ||
|
2
|
2
FJ0-61348-01-00
Plate
|
FJ0-61348-01-00 |
— | ||
|
3
|
3
FJ0-61349-00-00 Spring |
FJ0-61349-00-00 |
US $4.77 |
||
|
4
|
4
FJ0-61351-00-00 Rod, Steering Link |
FJ0-61351-00-00 |
from US $14.88 |
||
|
5
|
5
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.13 |
||
|
6
|
6
FJ0-61352-00-00 Ball, Joint |
FJ0-61352-00-00 |
US $4.77 |
||
|
7
|
7
97080-06018-00 Bolt (Fj0) |
97080-06018-00 |
from US $4.11 |
||
|
8
|
8
FJ0-61353-00-00 Washer |
FJ0-61353-00-00 |
from US $6.94 |
||
|
9
|
9
FJ0-61354-00-00 Wave Washer |
FJ0-61354-00-00 |
from US $6.23 |
||
|
10
|
10
GJ3-6134N-00-00 Arm |
GJ3-6134N-00-00 |
US $143.57 |
||
| replacement | |||||
|
10
|
10
GJ3-6134N-01-00 Arm |
GJ3-6134N-01-00 |
US $143.57 |
||
|
11
|
11
FJ0-61347-00-00 Bearing |
FJ0-61347-00-00 |
from US $6.66 |
||
|
12
|
12
FJ0-61344-00-00 Bush |
FJ0-61344-00-00 |
from US $11.45 |
||
|
13
|
13
987-80055-25-00 Screw, Flat Head |
987-80055-25-00 |
from US $2.69 |
||
|
14
|
14
97080-06035-00 Bolt(J52) |
97080-06035-00 |
from US $2.02 |
||
|
15
|
15
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
16
|
16
GJ3-6134C-00-00
Lever,1
|
GJ3-6134C-00-00 |
— | ||
| replacement | |||||
|
16
|
16
GJ3-6134C-01-00
Lever,1
|
GJ3-6134C-01-00 |
— | ||
|
17
|
17
95720-06300-00 Nut, Self-Locking |
95720-06300-00 |
from US $1.84 |
||
|
18
|
18
EU0-61461-01-00
Stood, Joint Ball
|
EU0-61461-01-00 |
— | ||
|
19
|
19
GJ3-U149C-00-00 Cable,reverseYMUS |
GJ3-U149C-00-00 |
US $281.45 |
||
|
20
|
20
EU0-U1461-30-00 Shaft, Joint BallYMUS |
EU0-U1461-30-00 |
from US $26.07 |
||
| replacements | |||||
|
20
|
20
F0V-U1461-00-00 Stud, Joint BallYMUS |
F0V-U1461-00-00 |
from US $51.53 |
||
|
20
|
20
EU0-61461-30-00 Shaft,joint BallYMUS |
EU0-61461-30-00 |
from US $26.07 |
||
|
21
|
21
GJ3-61468-01-00 Stopper, Cable |
GJ3-61468-01-00 |
from US $11.48 |
||
|
22
|
22
GJ3-6146D-00-00
Bracket,cable Stopper 2
|
GJ3-6146D-00-00 |
— | ||
|
23
|
23
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
24
|
24
95780-06300-00 P58 Nut, Nylon |
95780-06300-00 |
from US $4.11 |
||
|
25
|
25
95720-06300-00 Nut, Self-Locking |
95720-06300-00 |
from US $1.84 |
||
|
26
|
26
GJ3-U1481-00-00 Cable, SteeringYMUS |
GJ3-U1481-00-00 |
US $247.77 |
||
|
27
|
27
EU0-U1461-01-00
Stud, Joint Ball
YMUS |
EU0-U1461-01-00 |
— | ||
| replacements | |||||
|
27
|
27
EU0-61461-01-00
Stood, Joint Ball
YMUS |
EU0-61461-01-00 |
— | ||
|
27
|
27
EU0-61461-02-00 Stud, Joint BallYMUS |
EU0-61461-02-00 |
from US $18.20 |
||
|
27
|
27
EU0-U1461-02-00
Stud, Joint Ball
YMUS |
EU0-U1461-02-00 |
— | ||
|
27
|
27
EU0-U1461-10-00 SHAFT, JOINT BALLYMUS |
EU0-U1461-10-00 |
from US $27.20 |
||
|
28
|
28
EU0-U1461-30-00 Shaft, Joint BallYMUS |
EU0-U1461-30-00 |
from US $26.07 |
||
| replacements | |||||
|
28
|
28
F0V-U1461-00-00 Stud, Joint BallYMUS |
F0V-U1461-00-00 |
from US $51.53 |
||
|
28
|
28
EU0-61461-30-00 Shaft,joint BallYMUS |
EU0-61461-30-00 |
from US $26.07 |
||
|
29
|
29
95780-06300-00 P58 Nut, Nylon |
95780-06300-00 |
from US $4.11 |
||
|
30
|
30
90699-38U03-00 Spi-Wrap 25YMUS |
90699-38U03-00 |
US $47.94 |
||
| replacement | |||||
|
30
|
30
999-99999-99-00
Not Available
YMUS |
999-99999-99-00 |
— | ||
|
31
|
31
GJ1-67578-00-00 Packing, Hose 2 |
GJ1-67578-00-00 |
US $2.54 |
||
|
32
|
32
90600-921U1-00 Clip, Nylon 21YMUS |
90600-921U1-00 |
US $4.39 |
||
| replacement | |||||
|
32
|
32
90600-918U3-00 Clip, Nylon 18YMUS |
90600-918U3-00 |
from US $0.95 |
||
|
33
|
33
97780-60116-00 Screw, Tapping |
97780-60116-00 |
from US $3.73 |
||
|
34
|
34
GJ1-U7252-00-00 Cable, ThrottleYMUS |
GJ1-U7252-00-00 |
US $127.80 |
||
|
35
|
35
GJ3-U7242-00-00 Cable, ChokeYMUS |
GJ3-U7242-00-00 |
US $172.58 |
||
| replacement | |||||
|
35
|
35
GJ3-U7242-02-00 Cable, ChokeYMUS |
GJ3-U7242-02-00 |
US $172.58 |
||
|
36
|
36
GA9-U724C-00-00
Knob, Choke
YMUS |
GA9-U724C-00-00 |
— | ||
| replacement | |||||
|
36
|
36
GP7-U724C-00-00
Choke Knob
YMUS |
GP7-U724C-00-00 |
— | ||
|
37
|
37
GA9-U724D-00-00 ScrewYMUS |
GA9-U724D-00-00 |
from US $5.73 |
||
| replacement | |||||
|
37
|
37
GP7-U724D-00-00 Screw, KnobYMUS |
GP7-U724D-00-00 |
US $5.29 |
||
|
38
|
38
GJ3-6824D-00-00 Plate,choke |
GJ3-6824D-00-00 |
from US $8.22 |
||
|
39
|
39
EU0-67267-00-00 Connector,cable |
EU0-67267-00-00 |
from US $38.96 |
||
|
40
|
40
EU0-62694-00-00 Cap |
EU0-62694-00-00 |
from US $8.19 |
||
|
41
|
41
EU0-61446-00-00 Washer |
EU0-61446-00-00 |
from US $5.97 |
||
|
42
|
42
EU0-61486-00-00 Stopper |
EU0-61486-00-00 |
from US $3.20 |
||
|
43
|
43
EU0-61435-00-00 Seal, Pipe 3030 |
EU0-61435-00-00 |
from US $5.41 |
||
|
44
|
44
EU0-61438-00-00 Packing |
EU0-61438-00-00 |
from US $4.04 |
||
|
45
|
45
EU0-62241-30-00 Nut, Drain 1 |
EU0-62241-30-00 |
from US $10.77 |
||
