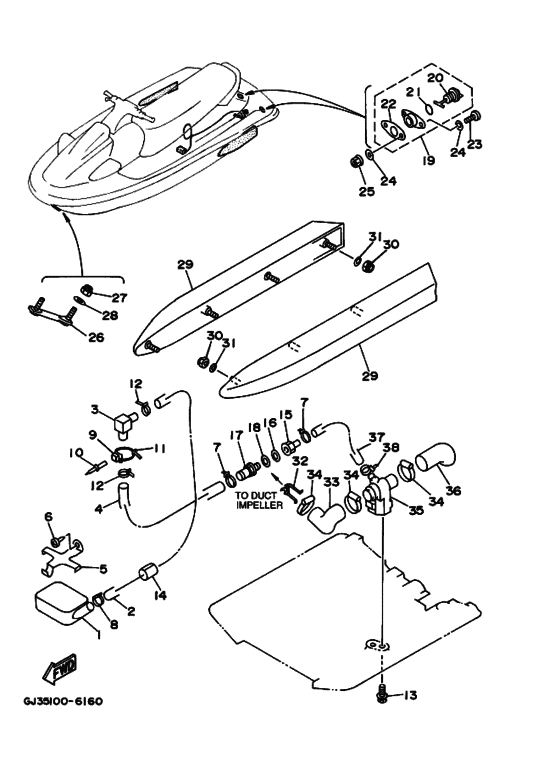

Hull & deck Diagram Yamaha WVT700
- Model code
- GJ37
- Engine Capacity
- 700
- Year
- 1996
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
EU0-67613-00-00 Strainer |
EU0-67613-00-00 |
from US $29.84 |
||
| replacement | |||||
|
1
|
1
F4R-6761D-00-00 |
F4R-6761D-00-00 |
from US $37.99 |
||
|
2
|
2
90445-149U5-00 Hose (L770)UR YMUS |
90445-149U5-00 |
US $36.52 |
||
| replacement | |||||
|
2
|
2
90445-14M03-00 HoseUR YMUS |
90445-14M03-00 |
US $36.52 |
||
|
2
|
2
90445-14M16-00 Hose (L770)UR |
90445-14M16-00 |
US $36.52 |
||
| replacement | |||||
|
2
|
2
90445-14M03-00 HoseUR |
90445-14M03-00 |
US $36.52 |
||
|
3
|
3
6K8-51162-00-00 Joint, Hose |
6K8-51162-00-00 |
from US $4.68 |
||
|
4
|
4
90445-149U3-00
Hose (L500)
UR YMUS |
90445-149U3-00 |
— | ||
| replacement | |||||
|
4
|
4
90445-14M03-00 HoseUR YMUS |
90445-14M03-00 |
US $36.52 |
||
|
4
|
4
90445-14M10-00 HoseUR |
90445-14M10-00 |
US $36.52 |
||
| replacement | |||||
|
4
|
4
90445-14M03-00 HoseUR |
90445-14M03-00 |
US $36.52 |
||
|
5
|
5
EW2-67618-00-00 Base, Strainer Blige |
EW2-67618-00-00 |
from US $24.51 |
||
|
6
|
6
97780-50612-00 Screw, Tapping |
97780-50612-00 |
from US $1.98 |
||
|
7
|
7
90601-200U1-00 BandYMUS |
90601-200U1-00 |
from US $2.27 |
||
|
8
|
8
90601-200U1-00 BandYMUS |
90601-200U1-00 |
from US $2.27 |
||
|
9
|
9
90600-91736-00 Clamp Comp (Eu0) |
90600-91736-00 |
from US $1.98 |
||
|
10
|
10
90267-489U7-00 Rivet, Blind |
90267-489U7-00 |
from US $1.49 |
||
| replacement | |||||
|
10
|
10
90267-48934-00 Rivet, Blind |
90267-48934-00 |
from US $3.59 |
||
|
11
|
11
90601-20006-00 Band, Hose |
90601-20006-00 |
from US $2.27 |
||
| replacement | |||||
|
11
|
11
90601-20009-00 Band (Eu0) |
90601-20009-00 |
from US $2.27 |
||
|
12
|
12
90465-13M11-00 Clamp |
90465-13M11-00 |
from US $1.70 |
||
| replacement | |||||
|
12
|
12
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.17 |
||
|
13
|
13
90119-06915-00 Bolt, With Washer |
90119-06915-00 |
from US $4.68 |
||
| replacements | |||||
|
13
|
13
901-19069-29-00 Bolt, With Washer |
901-19069-29-00 |
from US $4.68 |
||
|
13
|
13
901-19068-96-00 Bolt, With Washer |
901-19068-96-00 |
from US $4.68 |
||
|
14
|
14
GJ1-67578-10-00 Packing, Hose 2 |
GJ1-67578-10-00 |
from US $5.67 |
||
|
15
|
15
90604-80759-00 Connection, Thru-Hull 1/41/4 |
90604-80759-00 |
from US $15.30 |
||
|
16
|
16
90430-13909-00 Gasket |
90430-13909-00 |
from US $1.90 |
||
|
17
|
17
90604-80760-00
Connection, Thru-Hull 1/4
1/4 |
90604-80760-00 |
— | ||
|
18
|
18
90430-13909-00 Gasket |
90430-13909-00 |
from US $1.90 |
||
|
19
|
19
EU0-62280-00-00 Drain Plug Assy |
EU0-62280-00-00 |
from US $43.24 |
||
|
20
|
20
EU0-62282-00-00 Plug, Drain |
EU0-62282-00-00 |
from US $3.26 |
||
|
21
|
21
EU0-62283-00-00 O-Ring |
EU0-62283-00-00 |
from US $1.28 |
||
|
22
|
22
EU0-62285-01-00 Packing Drain (Eu0) |
EU0-62285-01-00 |
from US $5.10 |
||
|
23
|
23
978-80050-20-00
Screw, Pan Head
|
978-80050-20-00 |
— | ||
| replacements | |||||
|
23
|
23
98580-05020-00 Screw, Pan Head |
98580-05020-00 |
from US $1.56 |
||
|
23
|
23
97885-05020-00 Screw, Pan Head |
97885-05020-00 |
from US $2.13 |
||
|
24
|
24
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
25
|
25
95720-05300-00 Nut, Flange |
95720-05300-00 |
from US $1.56 |
||
|
26
|
26
FN8-U1624-00-00
Bow Eye 1
S; YMSU |
FN8-U1624-00-00 |
— | ||
|
27
|
27
95720-08300-00 Nut, Self-Locking |
95720-08300-00 |
from US $4.11 |
||
|
28
|
28
92990-08220-00
Washer
|
92990-08220-00 |
— | ||
|
29
|
29
GJ3-6883M-00-00 Stabilizer |
GJ3-6883M-00-00 |
US $176.41 |
||
| replacement | |||||
|
29
|
29
GH3-U883M-30-00
Stabilizer
|
GH3-U883M-30-00 |
— | ||
|
30
|
30
95720-06300-00 Nut, Self-Locking |
95720-06300-00 |
from US $1.84 |
||
|
31
|
31
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
32
|
32
6R8-51384-00-00 Screen |
6R8-51384-00-00 |
US $62.78 |
||
|
33
|
33
6R8-51161-00-00
Hose, Plasher
|
6R8-51161-00-00 |
— | ||
|
34
|
34
90460-25M09-00 Hose Clamp Assy |
90460-25M09-00 |
US $34 |
||
| replacement | |||||
|
34
|
34
90450-32097-00 Hose Clamp Assy |
90450-32097-00 |
from US $19.22 |
||
|
35
|
35
6K8-7610K-01-00 Body,valve |
6K8-7610K-01-00 |
US $30.80 |
||
|
36
|
36
6K8-51141-00-00 Hose Suction |
6K8-51141-00-00 |
US $35.89 |
||
|
37
|
37
90445-14M11-00 Hose (L180) |
90445-14M11-00 |
US $13.27 |
||
|
38
|
38
90465-13M11-00 Clamp |
90465-13M11-00 |
from US $1.70 |
||
| replacement | |||||
|
38
|
38
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.17 |
||
