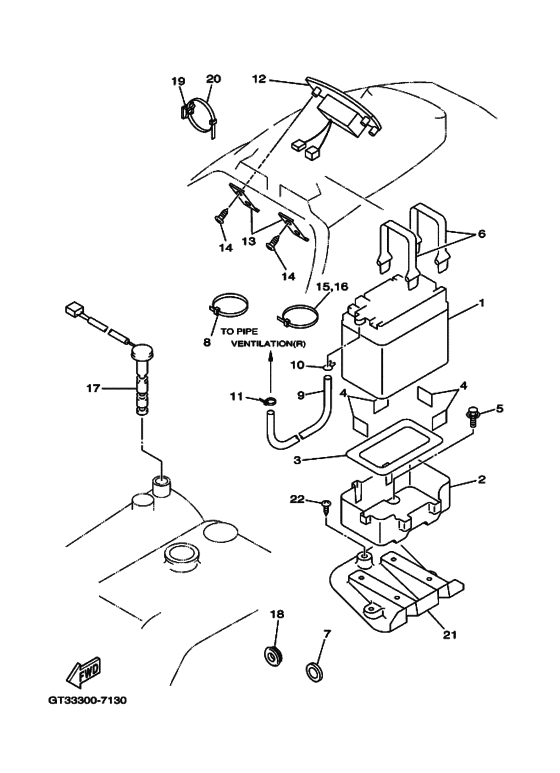

Electrical 2 Diagram Yamaha WVT700
- Model code
- GT33
- Engine Capacity
- 700
- Year
- 1997
- Sales region
- Europe (999)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
EU0-U8217-71-00 BatteryYMUS |
EU0-U8217-71-00 |
US $211,749.98 |
||
| replacements | |||||
|
1
|
1
BTY-CB16C-LB-00
Battery cb16cl-b
YMUS |
BTY-CB16C-LB-00 |
— | ||
|
1
|
1
YB1-6CLB0-00-00
Battery Yb16Cl-B (Cb16Cl-B)
YMUS |
YB1-6CLB0-00-00 |
— | ||
|
2
|
2
EW2-68211-00-00 Case, Battery |
EW2-68211-00-00 |
from US $31.77 |
||
|
3
|
3
EU0-U8221-00-00 Pad, BatteryYMUS |
EU0-U8221-00-00 |
from US $3.38 |
||
| replacement | |||||
|
3
|
3
F1S-U8221-00-00 Pad, BatteryYMUS |
F1S-U8221-00-00 |
from US $9 |
||
|
4
|
4
EU0-U8221-30-00 Pad, Battery 2YMUS |
EU0-U8221-30-00 |
from US $1.49 |
||
|
5
|
5
90119-06920-00 Bolt, With Washer |
90119-06920-00 |
from US $2.27 |
||
|
6
|
6
EU0-U821D-00-00 Band,battery 1YMUS |
EU0-U821D-00-00 |
from US $14.15 |
||
|
7
|
7
FJ0-68222-01-00 Grommet |
FJ0-68222-01-00 |
US $9.11 |
||
|
8
|
8
90601-20006-00 Band, Hose |
90601-20006-00 |
from US $2.27 |
||
| replacement | |||||
|
8
|
8
90601-20009-00 Band (Eu0) |
90601-20009-00 |
from US $2.27 |
||
|
9
|
9
EU0-67856-40-00 Hose (L850) |
EU0-67856-40-00 |
from US $16.29 |
||
| replacement | |||||
|
9
|
9
90699-50085-00 Hose (L850) |
90699-50085-00 |
from US $16.29 |
||
|
10
|
10
90467-08M10-00 Clip |
90467-08M10-00 |
US $1.70 |
||
| replacement | |||||
|
10
|
10
90467-08004-00 Clip |
90467-08004-00 |
from US $1.81 |
||
|
11
|
11
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
11
|
11
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.17 |
||
|
11
|
11
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
12
|
12
GJ8-6820A-00-00
Meter, Assembly
|
GJ8-6820A-00-00 |
— | ||
|
13
|
13
GJ8-68238-00-00 Bracket, Meter |
GJ8-68238-00-00 |
from US $10.47 |
||
|
14
|
14
97780-50520-00 Screw, Tapping |
97780-50520-00 |
US $1.56 |
||
| replacement | |||||
|
14
|
14
97780-50620-00 Screw, Tapping |
97780-50620-00 |
from US $1.56 |
||
|
15
|
15
90601-20006-00 Band, Hose |
90601-20006-00 |
from US $2.27 |
||
| replacement | |||||
|
15
|
15
90601-20009-00 Band (Eu0) |
90601-20009-00 |
from US $2.27 |
||
|
16
|
16
90601-20006-00 Band, Hose |
90601-20006-00 |
from US $2.27 |
||
| replacement | |||||
|
16
|
16
90601-20009-00 Band (Eu0) |
90601-20009-00 |
from US $2.27 |
||
|
17
|
17
GJ8-6824C-01-00 Sender, Oil |
GJ8-6824C-01-00 |
from US $145.07 |
||
|
18
|
18
GJ8-60469-01-00 Cap |
GJ8-60469-01-00 |
from US $11.05 |
||
|
19
|
19
90600-90004-00 Base,clamp |
90600-90004-00 |
from US $3.54 |
||
|
20
|
20
90601-200U1-00 BandYMUS |
90601-200U1-00 |
from US $2.27 |
||
|
21
|
21
GJ3-U821C-00-00
Battery Case Base Assembly Comp
YMUS |
GJ3-U821C-00-00 |
— | ||
|
22
|
22
97780-60116-00 Screw, Tapping |
97780-60116-00 |
from US $3.73 |
||
