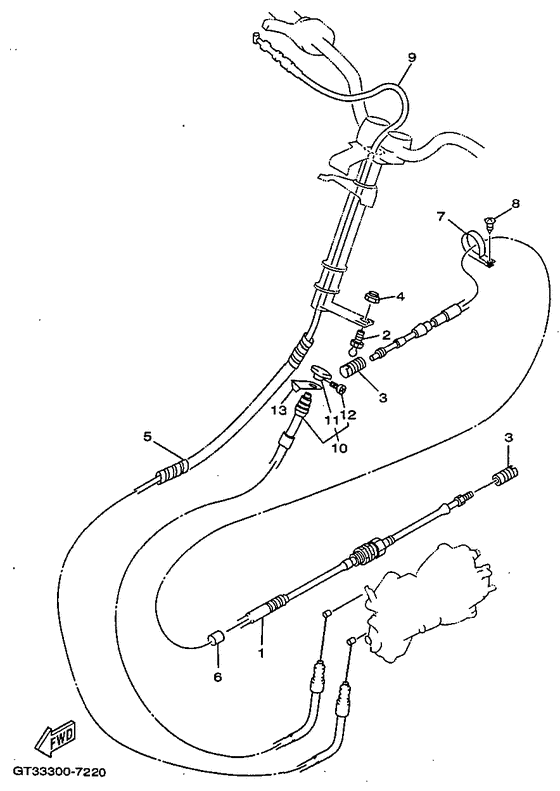

Control cable Diagram Yamaha WVT700
- Model code
- GT33
- Engine Capacity
- 700
- Year
- 1997
- Sales region
- Europe (General) (999)
- Colour
- Pure White (PURW; 0240)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
GP3-61480-00-00 Steering Cable Assembly |
GP3-61480-00-00 |
US $341.14 |
||
|
02
|
02
EU0-U1461-01-00
Stud, Joint Ball
Ymus |
EU0-U1461-01-00 |
— | ||
| replacements | |||||
|
02
|
02
EU0-61461-01-00
Stood, Joint Ball
Ymus |
EU0-61461-01-00 |
— | ||
|
02
|
02
EU0-61461-02-00 Stud, Joint BallYmus |
EU0-61461-02-00 |
from US $18.20 |
||
|
02
|
02
EU0-U1461-02-00
Stud, Joint Ball
Ymus |
EU0-U1461-02-00 |
— | ||
|
02
|
02
EU0-U1461-10-00 SHAFT, JOINT BALLYmus |
EU0-U1461-10-00 |
from US $27.20 |
||
|
03
|
03
GK5-6146F-00-00 Shaft, Joint Ball |
GK5-6146F-00-00 |
from US $50.43 |
||
|
04
|
04
95780-06300-00 P58 Nut, Nylon |
95780-06300-00 |
from US $4.11 |
||
|
05
|
05
90699-38U03-00 Spi-Wrap 25Ymus |
90699-38U03-00 |
US $47.94 |
||
| replacement | |||||
|
05
|
05
999-99999-99-00
Not Available
Ymus |
999-99999-99-00 |
— | ||
|
06
|
06
GJ1-U7578-01-00 Packing, Hose 2Ymus |
GJ1-U7578-01-00 |
from US $9.35 |
||
|
07
|
07
90600-918U3-00 Clip, Nylon 18Ymus |
90600-918U3-00 |
from US $0.95 |
||
|
08
|
08
97780-60116-00 Screw, Tapping |
97780-60116-00 |
from US $3.73 |
||
|
09
|
09
GJ1-U7252-00-00 Cable, ThrottleYmus |
GJ1-U7252-00-00 |
US $127.80 |
||
|
10
|
10
GJ3-U7242-00-00 Cable, ChokeYmus |
GJ3-U7242-00-00 |
US $172.58 |
||
| replacement | |||||
|
10
|
10
GJ3-U7242-02-00 Cable, ChokeYmus |
GJ3-U7242-02-00 |
US $172.58 |
||
|
11
|
11
GA9-U724C-00-00
Knob, Choke
Ymus |
GA9-U724C-00-00 |
— | ||
| replacement | |||||
|
11
|
11
GP7-U724C-00-00
Choke Knob
Ymus |
GP7-U724C-00-00 |
— | ||
|
12
|
12
GP7-U724D-00-00 Screw, KnobYmus |
GP7-U724D-00-00 |
US $5.29 |
||
|
13
|
13
GJ3-6824D-00-00 Plate,choke |
GJ3-6824D-00-00 |
from US $8.22 |
||
