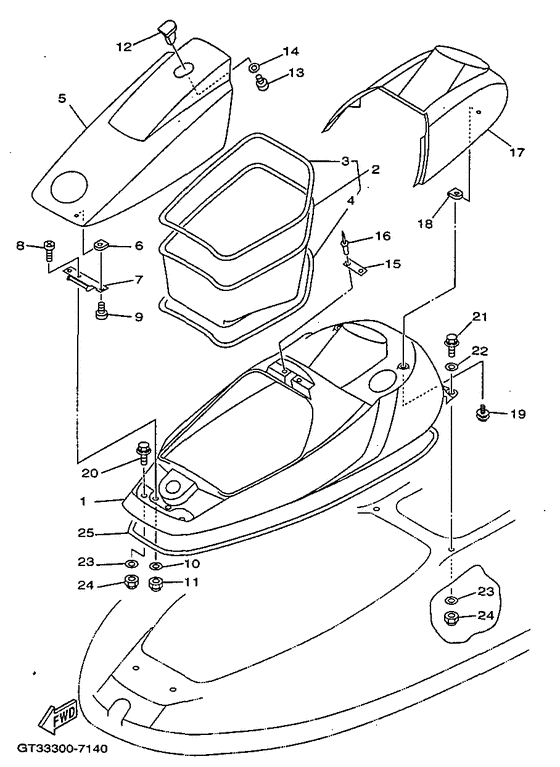

Engine hatch Diagram Yamaha WVT700
- Model code
- GT33
- Engine Capacity
- 700
- Year
- 1997
- Sales region
- Europe (General) (999)
- Colour
- Pure White (PURW; 0240)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
GT3-U516A-10-P0
Engine Hatch Comp
Ymus |
GT3-U516A-10-P0 |
— | ||
| replacement | |||||
|
01
|
01
GT3-U516A-00-P0
Eng.hatch (Teal-Export)
Ymus |
GT3-U516A-00-P0 |
— | ||
|
02
|
02
GJ3-U475A-00-00
Bow Locker Assembly
Ymus |
GJ3-U475A-00-00 |
— | ||
|
03
|
03
GJ3-U266B-32-00
Packing 3
Ymus |
GJ3-U266B-32-00 |
— | ||
| replacement | |||||
|
03
|
03
GJ3-U266B-33-00
Packing 3
Ymus |
GJ3-U266B-33-00 |
— | ||
|
04
|
04
GJ3-U266C-31-00 Packing 4Ymus |
GJ3-U266C-31-00 |
US $15.27 |
||
|
05
|
05
GH3-U517B-10-P0 Lid,eng.hatch(Yellow)Ymus |
GH3-U517B-10-P0 |
US $1,385.95 |
||
| replacement | |||||
|
05
|
05
GH3-U517B-19-P0 Lid,eng.hatch(Yellow)Ymus |
GH3-U517B-19-P0 |
US $1,385.95 |
||
|
06
|
06
90183-06902-00 Nut, Spring |
90183-06902-00 |
from US $6.23 |
||
|
07
|
07
GJ3-6517D-01-00 Hinge, Lid |
GJ3-6517D-01-00 |
US $46.69 |
||
|
08
|
08
90149-06902-00 Screw, Pan Head |
90149-06902-00 |
from US $1.07 |
||
| replacement | |||||
|
08
|
08
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
09
|
09
90149-069U2-00 ScrewYmus |
90149-069U2-00 |
from US $1.56 |
||
| replacement | |||||
|
09
|
09
97885-06012-00 Screw, Pan HeadYmus |
97885-06012-00 |
from US $1.56 |
||
|
10
|
10
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
11
|
11
95720-06300-00 Nut, Self-Locking |
95720-06300-00 |
from US $1.84 |
||
|
12
|
12
GJ3-6517C-01-00 Lock, Lid |
GJ3-6517C-01-00 |
from US $57.66 |
||
|
13
|
13
90149-059U3-00 ScrewYmus |
90149-059U3-00 |
from US $1.78 |
||
| replacement | |||||
|
13
|
13
97885-05016-00 Screw, Pan HeadYmus |
97885-05016-00 |
from US $3.12 |
||
|
14
|
14
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
15
|
15
GJ3-6517F-00-00 Hook,lid Lock |
GJ3-6517F-00-00 |
US $6.25 |
||
|
16
|
16
90267-489U1-00 Rivet,blindYmus |
90267-489U1-00 |
from US $4.77 |
||
| replacement | |||||
|
16
|
16
90267-48938-00 Rivet (Eu0)Ymus |
90267-48938-00 |
from US $3.72 |
||
|
17
|
17
GH3-U516N-10-P0
Cover, Eng.hatch (Yellow-Expor
Ymus |
GH3-U516N-10-P0 |
— | ||
| replacement | |||||
|
17
|
17
GH3-U516N-19-P0
Cover, Eng.hatch (Yellow-Expor
Ymus |
GH3-U516N-19-P0 |
— | ||
|
18
|
18
90183-06902-00 Nut, Spring |
90183-06902-00 |
from US $6.23 |
||
|
19
|
19
90149-069U4-00 Screw, With WasherYmus |
90149-069U4-00 |
US $3.35 |
||
| replacement | |||||
|
19
|
19
979-80063-20-00 Screw, With WasherYmus |
979-80063-20-00 |
US $3.28 |
||
|
20
|
20
90119-089U9-00
Bolt, With Washer
Ymus |
90119-089U9-00 |
— | ||
| replacement | |||||
|
20
|
20
90119-08941-00
Bolt, With Washer
Ymus |
90119-08941-00 |
— | ||
|
21
|
21
90119-089U6-00 Bolt, With WasherYmus |
90119-089U6-00 |
from US $4.81 |
||
| replacement | |||||
|
21
|
21
901-19088-29-00 Bolt, With WasherYmus |
901-19088-29-00 |
from US $8.50 |
||
|
22
|
22
90201-099U1-00 Washer, PlateYmus |
90201-099U1-00 |
from US $7.51 |
||
|
23
|
23
90201-08929-00 Washer, Plate |
90201-08929-00 |
from US $5.81 |
||
|
24
|
24
95720-08300-00 Nut, Self-Locking |
95720-08300-00 |
from US $4.11 |
||
|
25
|
25
GJ3-U2663-00-00 Packing 1Ymus |
GJ3-U2663-00-00 |
from US $20.23 |
||
| replacement | |||||
|
25
|
25
GJ3-U2663-01-00 Packing 1Ymus |
GJ3-U2663-01-00 |
from US $20.23 |
||
