Front Rack, Body Panel, And Headlight Assemblies

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 2506-106 Rack Assembly; front Assembly \| (inc. 2-3)	2506-106	US $326.26
2	2 0411-576 Decal Front rack load; warning Load	0411-576	US $45.76
3	3 0441-592 Bushing Rack Load	0441-592	US $9.05
4	4 8410-835 Screw Machine Load	8410-835	US $11.52
5	5 0423-669 Spacer Load	0423-669	US $7.24
6	6 0423-465 Grommet Load	0423-465	US $32.88
7	7 8432-802 Nut Lock Load	8432-802	US $7.04
8	8 0423-654 Screw Shoulder Load	0423-654	US $7.24
9	9 8050-222 Washer Load	8050-222	US $17.60
10	10 8427-602 Nut Load	8427-602	US $1.45
11	11 0509-044 Headlight assembly Right Right \| (inc. 9)	0509-044	US $170.67
11	11 0509-035 Headlight assembly Left Left \| (inc. 9)	0509-035	US $170.67
12	12 0409-055 Bulb Left \| (inc. 9)	0409-055	—
13	13 0423-514 Stud Headlight; adjuster Headlight	0423-514	US $13.34
14	14 0423-522 Spring Adjuster Headlight	0423-522	US $5
15	15 0423-513 Knob Adjuster Headlight	0423-513	US $7.57
16	16 0623-785 Screw Self-tapping Headlight	0623-785	US $8.80
17	17 8050-217 Washer Headlight	8050-217	US $3
18	18 0423-447 Grommet Headlight	0423-447	US $9.06
19	19 2406-588 Panel Lower - Right	2406-588	—
20	20 7506-207 PANEL,SIDE-LH-ASSY Lower - Left \| (inc. 21)	7506-207	US $104
21	21 0412-842 FOIL,LEFT SPLASH PANEL Lower - Left \| (inc. 21)	0412-842	US $14.97
	replacement
21	21 1412-124 Foil,left Splash Panel Lower - Left \| (inc. 21)	1412-124	US $16.90
22	22 0423-678 Grommet Lower - Left \| (inc. 21)	0423-678	US $14.40
23	23 1406-358 Cover Access Lower - Left \| (inc. 21)	1406-358	US $17.25
24	24 0423-535 Rivet Reinstallable Lower - Left \| (inc. 21)	0423-535	US $9.05
25	25 0623-362 Rivet Plastic Lower - Left \| (inc. 21)	0623-362	US $4.40
26	26 1406-484 Cover Steering post Lower - Left \| (inc. 21)	1406-484	US $18.70
27	27 0470-513 Cover Storage box Lower - Left \| (inc. 21)	0470-513	from US $24.45
28	28 1406-573 Box Storage Lower - Left \| (inc. 21)	1406-573	US $27.22
29	29 2506-234 Lid Storage box w/latch w/Latch \| (inc. 25-26)	2506-234	US $35.30
30	30 1406-599 Latch Storage box w/Latch \| (inc. 25-26)	1406-599	US $19.54
31	31 0470-514 Lid Storage box w/Latch \| (inc. 25-26)	0470-514	US $44.38
32	32 0423-101 Screw Body w/Latch \| (inc. 25-26)	0423-101	US $14.40
33	33 4506-943 FENDER,FRONT-VIBE MET RED-ASSY (H2) Assembly - Red \| (inc. 34-39)	4506-943	US $736.61
34	34 0411-818 Decal Amber - right; reflector Right - Amber	0411-818	US $10.43
34	34 0411-819 Decal Amber - left; reflector Left - Amber	0411-819	US $10.43
35	35 1411-574 Decal Off-road only; warning Off-Road Only	1411-574	US $18.13
36	36 1411-804 Decal Age; warning Age (16)	1411-804	US $22.66
37	37 1411-932 Decal General; warning General	1411-932	US $18.30
38	38 4411-818 DECAL,WARNING-HILL (ATV) Turn/Hill	4411-818	US $4.57
	replacement
38	38 6411-412 Decal,warning-Hill(Atv) Turn/Hill	6411-412	US $6.42
39	39 1411-906 Decal Throttle; warning Throttle	1411-906	US $16.98
40	40 1411-725 Decal in.Arctic Catin.	1411-725	—
41	41 4411-358 DECAL,1000 EFI-RED in.Arctic Catin.	4411-358	US $6.60
42	42 4411-386 DECAL,SIDE-RH-VIBRANT RED Upper Right	4411-386	US $52.04
42	42 4411-387 DECAL,SIDE-LH-VIBRANT RED Upper Left	4411-387	US $51.80

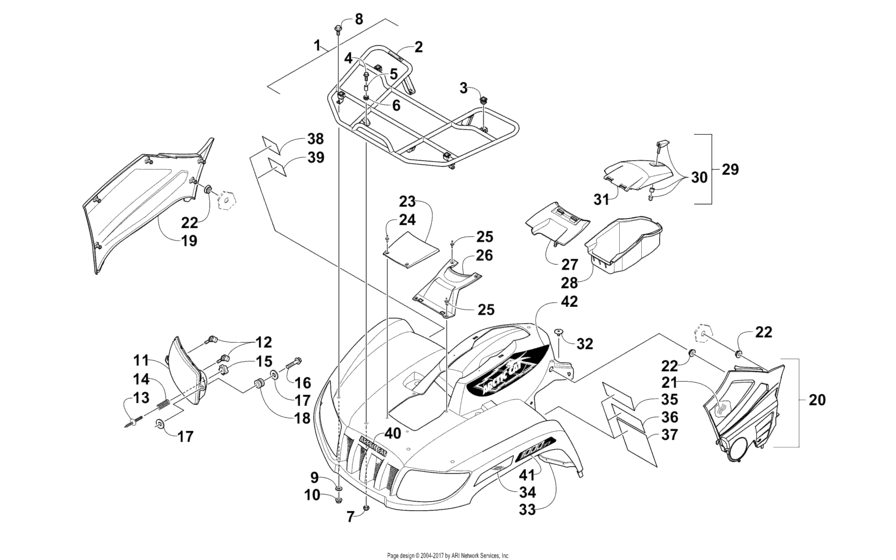

Front Rack, Body Panel, And Headlight Assemblies (300320) Diagram Arctic Cat ATV 1000 1000 XT Red General 16801580-861507
