Component List ATV 550 550 XT
Front Rack, Body Panel, And Headlight Assemblies (99931)

Difficulties in parts search?

Parts list

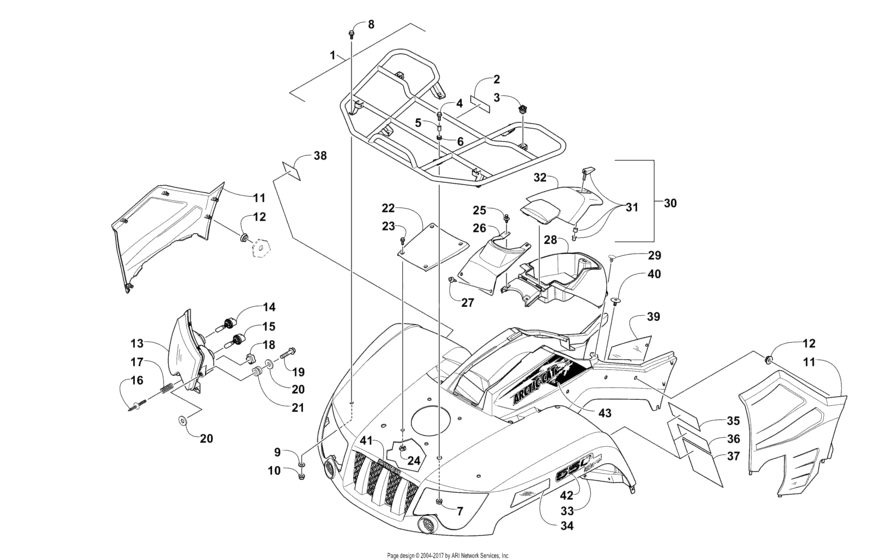

Front Rack, Body Panel, And Headlight Assemblies

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 2506-107 Rack Front - assembly Assembly \| (inc. 2-3)	2506-107	US $326.26
2	2 0411-576 Decal Front rack load; warning Load	0411-576	US $45.76
3	3 0441-592 Bushing Rack Load	0441-592	US $30.60
4	4 8410-835 Screw Machine Load	8410-835	US $11.52
5	5 0423-669 Spacer Load	0423-669	US $7.24
6	6 0423-465 Grommet Load	0423-465	US $32.88
7	7 8432-802 Nut Lock Load	8432-802	US $7.04
8	8 0423-654 Screw Shoulder Load	0423-654	US $7.24
9	9 8050-222 Washer Load	8050-222	US $17.60
10	10 8427-602 Nut Load	8427-602	US $1.45
11	11 2406-380 Panel Lower - right; side Lower - Right	2406-380	US $73.04
11	11 2406-381 Panel Lower - left; side Lower - Left	2406-381	US $73.04
12	12 0423-678 Grommet Lower - Left	0423-678	US $14.40
13	13 0609-852 Headlight assembly Right Right \| (inc. 12-13)	0609-852	US $198.96
13	13 0609-853 Headlight assembly Left Left-Hand \| (inc. 12-13)	0609-853	US $198.96
14	14 0409-073 Bulb Headlight Left-Hand \| (inc. 12-13)	0409-073	US $30.95
15	15 0409-045 Bulb Headlight Left-Hand \| (inc. 12-13)	0409-045	US $39.34
16	16 0423-514 Stud Headlight; adjuster Headlight	0423-514	US $13.34
17	17 0423-522 Spring Adjuster Headlight	0423-522	US $5
18	18 0423-513 Knob Adjuster Headlight	0423-513	US $7.57
19	19 0623-785 Screw Self-tapping Headlight	0623-785	US $8.80
20	20 8050-217 Washer Headlight	8050-217	US $3
21	21 0423-447 Grommet Headlight	0423-447	US $9.06
22	22 4506-031 Cover,radiator-n.blue-ptd Headlight	4506-031	US $55.50
23	23 8410-616 Screw Cap Headlight	8410-616	US $7.24
24	24 0423-997 T-nut Headlight	0423-997	US $5.30 ~~US $5.30~~
25	25 0623-362 Rivet Plastic Headlight	0623-362	US $4.40
26	26 5506-008 Cover,steering post-gloss black-ptd Headlight	5506-008	US $81.78
27	27 0423-535 Rivet Reinstallable Headlight	0423-535	US $9.05
28	28 5506-010 Box,storage-gloss black-ptd Headlight	5506-010	US $115.96
29	29 0623-544 Plug Headlight	0623-544	US $2.96
30	30 2506-235 Cover Storage box w/latch w/Latch \| (inc. 30-31)	2506-235	US $59.95
31	31 1406-599 Latch Storage box w/Latch \| (inc. 30-31)	1406-599	US $19.54
32	32 1406-862 Cover Storage box w/Latch \| (inc. 30-31)	1406-862	US $61.57
33	33 2516-987 Fender,front-assy-n.blue Blue \| (inc. 34-39)	2516-987	US $1,272.91
34	34 1411-078 Decal Front - right; reflector Right - Amber	1411-078	US $6.94
34	34 1411-079 Decal Front - left; reflector Left - Amber	1411-079	US $6.94
35	35 1411-574 Decal Off-road only; warning Off-Road Only	1411-574	US $18.13
36	36 1411-804 Decal Age; warning Age (16)	1411-804	US $22.66
37	37 1411-932 Decal General; warning General	1411-932	US $18.30
38	38 4411-818 DECAL,WARNING-HILL (ATV) Turn/Hill	4411-818	US $4.57
	replacement
38	38 6411-412 Decal,warning-Hill(Atv) Turn/Hill	6411-412	US $6.42
39	39 0412-394 Shield Fender - front; heat Turn/Hill	0412-394	US $4.51
40	40 0423-101 Screw Body Turn/Hill	0423-101	US $14.40
41	41 1411-725 Decal in.Arctic Catin.	1411-725	—
42	42 3411-504 Decal,efi-550-vb in.Arctic Catin.	3411-504	US $6.60
43	43 3411-502 Decal,side-rh-viper blue (b-body) Front Right	3411-502	US $42.42
43	43 3411-503 Decal,side-lh-viper blue (b-body) Front Left	3411-503	US $42.42

Front Rack, Body Panel, And Headlight Assemblies (99931) Diagram Arctic Cat ATV 550 550 XT Blue General 16799117-861446

Front Rack, Body Panel, And Headlight Assemblies (99931) Diagram Arctic Cat ATV 550 550 XT Blue General 16799117-861446
