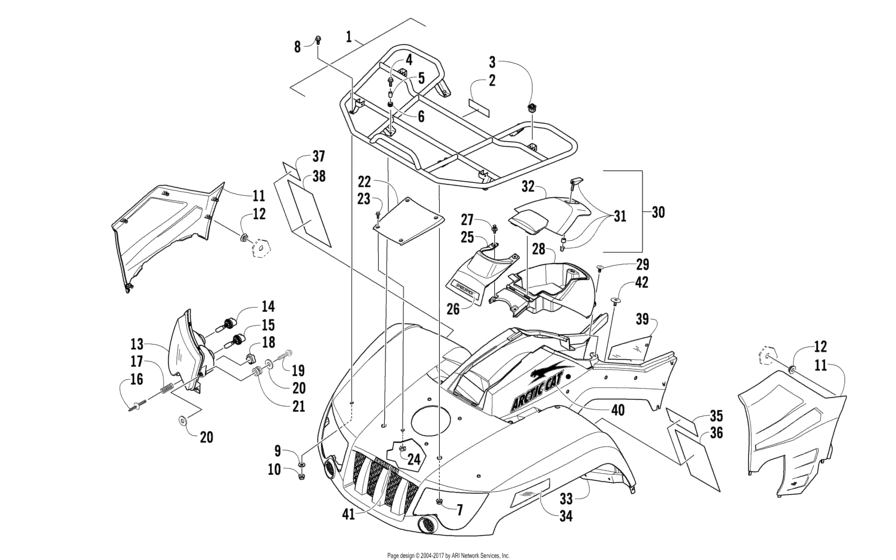

Front Rack, Body Panel, And Headlight Assemblies (92109) Diagram Arctic Cat ATV 650 650 H1
- Model code
- A2010ICS4BUSP
- Engine Capacity
- 650
- Year
- 2010
- Commercial Name
- 650 H1
- Sales region
- General
- Colour
- Black
- Model
- ATV 650 H1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2506-107 RackFront - assembly Assembly | (inc. 2-3) |
2506-107 |
US $326.26 |
||
|
2
|
2
0411-576 DecalFront rack load; warning Load |
0411-576 |
US $45.76 |
||
|
3
|
3
0441-592 BushingRack Load |
0441-592 |
US $9.05 |
||
|
4
|
4
8410-830 ScrewMachine Load |
8410-830 |
US $6 |
||
|
5
|
5
0423-669 SpacerLoad |
0423-669 |
US $7.24 |
||
|
6
|
6
0423-465 GrommetLoad |
0423-465 |
US $32.88 |
||
|
7
|
7
8432-802 NutLock Load |
8432-802 |
US $7.04 |
||
|
8
|
8
0423-654 ScrewShoulder Load |
0423-654 |
US $7.24 |
||
|
9
|
9
8050-222 WasherLoad |
8050-222 |
US $17.60 |
||
|
10
|
10
0423-540 NutLock Load |
0423-540 |
US $3.48 |
||
|
11
|
11
2406-380 PanelLower - right; side Lower - Right |
2406-380 |
US $73.04 |
||
|
11
|
11
2406-381 PanelLower - left; side Lower - Left |
2406-381 |
US $73.04 |
||
|
12
|
12
0423-678 GrommetLower - Left |
0423-678 |
US $14.40 |
||
|
13
|
13
0609-852 Headlight assemblyRight Right | (inc. 12-13) |
0609-852 |
US $198.96 |
||
|
13
|
13
0609-853 Headlight assemblyLeft Left-Hand | (inc. 12-13) |
0609-853 |
US $198.96 |
||
|
14
|
14
0409-073 BulbHeadlight Left-Hand | (inc. 12-13) |
0409-073 |
US $30.95 |
||
|
15
|
15
0409-045 BulbHeadlight Left-Hand | (inc. 12-13) |
0409-045 |
US $39.34 |
||
|
16
|
16
0423-514 StudHeadlight; adjuster Headlight |
0423-514 |
US $13.34 |
||
|
17
|
17
0423-522 SpringAdjuster Headlight |
0423-522 |
US $5 |
||
|
18
|
18
0423-513 KnobAdjuster Headlight |
0423-513 |
US $7.57 |
||
|
19
|
19
0623-785 ScrewSelf-tapping Headlight |
0623-785 |
US $8.80 |
||
|
20
|
20
8050-217 WasherHeadlight |
8050-217 |
US $3 |
||
|
21
|
21
0423-447 GrommetHeadlight |
0423-447 |
US $9.06 |
||
|
22
|
22
2416-172 CoverAccess Headlight |
2416-172 |
US $21.03 |
||
|
23
|
23
8410-616 ScrewCap Headlight |
8410-616 |
US $7.24 |
||
|
24
|
24
0423-997 T-nutHeadlight |
0423-997 |
US $5.30 |
||
|
25
|
25
1406-972 CoverSteering post Black |
1406-972 |
US $49.04 |
||
|
26
|
26
1411-050 DecalCrest - Black |
1411-050 |
US $2.30 |
||
|
27
|
27
0623-362 RivetPlastic Black |
0623-362 |
US $4.40 |
||
|
28
|
28
2416-240 BoxStorage Black |
2416-240 |
US $102.92 |
||
|
29
|
29
0623-544 PlugBlack |
0623-544 |
US $2.96 |
||
|
30
|
30
2506-235 CoverStorage box w/latch w/Latch | (inc. 30-31) |
2506-235 |
US $59.95 |
||
|
31
|
31
1406-599 LatchStorage box w/Latch | (inc. 30-31) |
1406-599 |
US $19.54 |
||
|
32
|
32
1406-862 CoverStorage box w/Latch | (inc. 30-31) |
1406-862 |
US $61.57 |
||
|
33
|
33
4506-395 Fender,front-black-assyAssembly - Black | (inc. 33-39) |
4506-395 |
US $481.82 |
||
|
34
|
34
1411-078 DecalFront - right; reflector Right - Amber |
1411-078 |
US $6.94 |
||
|
34
|
34
1411-079 DecalFront - left; reflector Left - Amber |
1411-079 |
US $6.94 |
||
|
35
|
35
1411-574 DecalOff-road only; warning Off-Road Only |
1411-574 |
US $18.13 |
||
|
36
|
36
2411-124 DecalGeneral/age; warning General/Age |
2411-124 |
US $47.42 |
||
|
37
|
37
0411-835 DecalTurn/hill; warning Turn/Hill |
0411-835 |
US $6.42 |
||
|
38
|
38
1411-250 DecalReverse/pre-ride; warning Reverse/Pre-Ride |
1411-250 |
US $38.30 |
||
|
39
|
39
0412-394 ShieldFender - front; heat Reverse/Pre-Ride |
0412-394 |
US $4.51 |
||
|
40
|
40
1411-634
Decal
Upper Right |
1411-634 |
— | ||
|
40
|
40
1411-635 DecalUpper left; side Upper Left |
1411-635 |
US $20.16 |
||
|
41
|
41
1411-724 DecalRear Upper Left |
1411-724 |
US $14.14 |
||
|
42
|
42
0423-101 ScrewBody Upper Left |
0423-101 |
US $14.40 |
