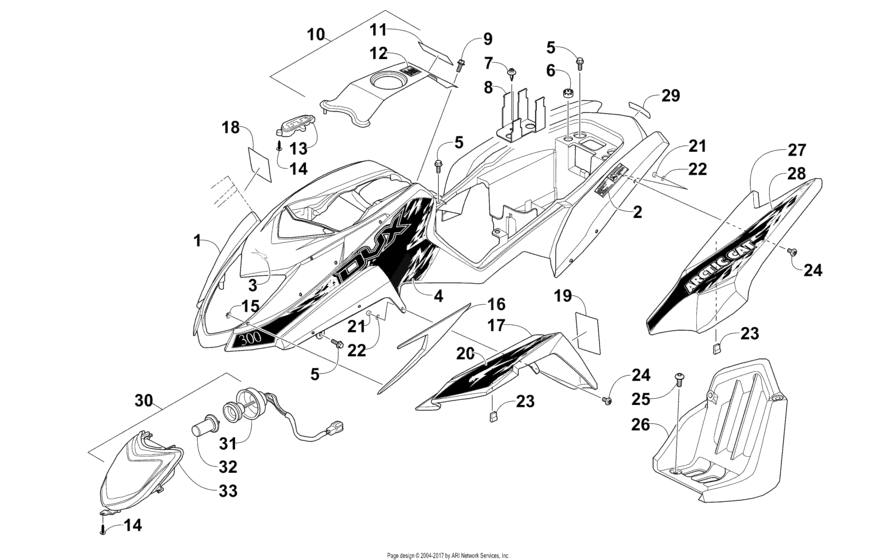

Body Panel And Headlight Assembly (300508) Diagram Arctic Cat DVX 300 DVX
- Model code
- A2015KSF2BOSZ
- Engine Capacity
- 300
- Year
- 2015
- Commercial Name
- 300 DVX
- Sales region
- General
- Colour
- Cat Green
- Model
- ATV 300 DVX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3306-891 BODY MAIN (LIME GRN) W/ DECALSGreen | (inc. 2) |
3306-891 |
US $464.66 |
||
|
2
|
2
2411-256 Decal,tire pressure/passengerPassenger/Tire Pressure |
2411-256 |
US $3.35 |
||
|
3
|
3
4411-479 EMBLEM,AIRCATPassenger/Tire Pressure |
4411-479 |
US $9.90 |
||
|
4
|
4
4411-322 DECAL,TANK-RH (DVX 300)“DVX 300†- Right |
4411-322 |
US $31.26 |
||
|
4
|
4
4411-323 DECAL,TANK-LH (DVX 300)“DVX 300†- Left |
4411-323 |
US $59.55 |
||
|
5
|
5
3304-587 Bolt w/washer“DVX 300†- Left |
3304-587 |
US $7.90 |
||
|
6
|
6
3303-232 RubberRear fender “DVX 300†- Left |
3303-232 |
US $13.60 |
||
|
7
|
7
3304-057 ClipFender “DVX 300†- Left |
3304-057 |
US $12.50 |
||
|
8
|
8
3304-339 BracketStarter/magneto switch; mounting Starter/Magneto Switch |
3304-339 |
US $26.10 |
||
|
9
|
9
3304-029 Bolt w/washerStarter/Magneto Switch |
3304-029 |
US $4.24 |
||
|
10
|
10
3306-111 CoverGas tank Black | (inc. 11-12) |
3306-111 |
US $36.96 |
||
|
11
|
11
1411-109 DecalReverse; warning Reverse |
1411-109 |
US $11.30 |
||
|
12
|
12
1411-577 DecalOff-road only; warning Not for Highways |
1411-577 |
US $8.50 |
||
|
13
|
13
3304-381 GuideShift handle Not for Highways |
3304-381 |
US $18.99 |
||
|
14
|
14
3304-650 ScrewSelf-tapping Not for Highways |
3304-650 |
US $3.90 |
||
|
15
|
15
3304-418 NutNot for Highways |
3304-418 |
US $8.80 |
||
|
16
|
16
3304-383 PanelRight; trim Right - Black |
3304-383 |
US $15.82 |
||
|
16
|
16
3304-517 PanelLeft; trim Left - Black |
3304-517 |
US $7.65 |
||
|
17
|
17
3306-200 Fender assy,r front (lime w/decals)Right - Green | (inc. 18) |
3306-200 |
US $83.58 |
||
|
17
|
17
3306-201 Fender assy,l front (lime w/decals)Left - Green | (inc. 19) |
3306-201 |
US $94.90 |
||
|
18
|
18
1411-804 DecalAge; warning Age (16) |
1411-804 |
US $22.66 |
||
|
19
|
19
1411-932 DecalGeneral; warning General |
1411-932 |
US $18.30 |
||
|
20
|
20
4411-320 DECAL,FENDER-FRONT-RH (DVX 300)Right |
4411-320 |
US $69.65 |
||
|
20
|
20
4411-321 DECAL,FENDER-FRONT-LH (DVX 300)Left |
4411-321 |
US $69.65 |
||
|
21
|
21
3304-431 NutLock Left |
3304-431 |
US $7.90 |
||
|
22
|
22
3304-432 WasherLeft |
3304-432 |
US $11.50 |
||
|
23
|
23
3304-683 ClipFender Left |
3304-683 |
US $4.32 |
||
|
24
|
24
3304-406 BoltLeft |
3304-406 |
US $12.65 |
||
|
25
|
25
3304-404 BoltLeft |
3304-404 |
US $11.50 |
||
|
26
|
26
3306-050 MudguardRight; floor Right |
3306-050 |
US $59.55 |
||
|
26
|
26
3306-051 MudguardLeft; floor Left |
3306-051 |
US $59.55 |
||
|
27
|
27
3304-394 FenderRight; rear Right - Green |
3304-394 |
US $69.65 |
||
|
27
|
27
3304-398 FenderLeft; rear Left - Green |
3304-398 |
US $69.65 |
||
|
28
|
28
4411-324 DECAL,FENDER-REAR-RH (DVX 300)Right |
4411-324 |
US $69.65 |
||
|
28
|
28
4411-325 DECAL,FENDER-REAR-LH (DVX 300)Left |
4411-325 |
US $69.65 |
||
|
29
|
29
0411-814 Decalin.Arctic Catin. - White |
0411-814 |
US $59.55 |
||
|
30
|
30
3304-280 Headlight assemblyAssembly | (inc. 19-22) |
3304-280 |
US $233.31 |
||
|
31
|
31
3304-282 Socket assemblyAssembly | (inc. 19-22) |
3304-282 |
US $43.38 |
||
|
32
|
32
3303-846 BulbHeadlight Assembly | (inc. 19-22) |
3303-846 |
US $46.42 |
||
|
33
|
33
3304-281 LensHeadlight Assembly | (inc. 19-22) |
3304-281 |
US $205.02 |
