Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 0513-039 Radiator assembly (inc. 2-14)	0513-039	US $680.45
2	2 0413-205 Radiator (inc. 2-14)	0413-205	US $474.75
3	3 0610-016 Hose 25 ft 25 ft	0610-016	US $123.18
3	3 0610-015 Hose 100 ft 1/4 x 100'	0610-015	US $326.26
4	4 0423-351 Clamp Wire 1/4 x 100'	0423-351	US $5.87
5	5 0423-030 Grommet 1/4 x 100'	0423-030	US $5.74
6	6 0413-255 Cap Radiator 1/4 x 100'	0413-255	US $59.55
7	7 8422-502 Nut Lock 1/4 x 100'	8422-502	US $4.72
8	8 0413-240 Bracket Retaining 1/4 x 100'	0413-240	US $81.78
9	9 0413-123 Fan Cooling 1/4 x 100'	0413-123	US $233.31
10	10 8475-512 Screw Machine 1/4 x 100'	8475-512	US $2.66
11	11 0123-397 Clamp Cable 1/4 x 100'	0123-397	US $3.70
12	12 0413-045 Sender Coolant; temperature 1/4 x 100'	0413-045	US $127.66
13	13 1602-213 O-ring 1/4 x 100'	1602-213	from US $0.76
14	14 0413-007 Screen Radiator 1/4 x 100'	0413-007	US $99.95
15	15 0423-028 Bushing Stem 1/4 x 100'	0423-028	US $6.42
16	16 0423-484 Screw Shoulder 1/4 x 100'	0423-484	US $14.52
17	17 0623-038 Nut w/washer 1/4 x 100'	0623-038	US $2.15
18	18 0413-211 Cooler Oil 1/4 x 100'	0413-211	US $358.58
19	19 8476-612 Screw Machine 1/4 x 100'	8476-612	US $5.36
20	20 0513-022 Bracket Mtg upper-oil cooler Oil Cooler - Upper	0513-022	US $12.62
21	21 0410-127 Hose Oil cooler Oil Cooler - Upper	0410-127	US $43.38
22	22 0423-632 Clamp Hose Oil Cooler - Upper	0423-632	US $13
23	23 0423-496 Clamp Hose Oil Cooler - Upper	0423-496	US $3.33
24	24 0410-002 Hose Upper; coolant Upper	0410-002	US $51.46
25	25 0410-022 Hose Crossover; coolant Crossover	0410-022	US $64.59
26	26 0410-041 Hose Lower; coolant Lower	0410-041	US $90.86
27	27 0623-751 Cable tie Re-useable Reusable	0623-751	US $14.40

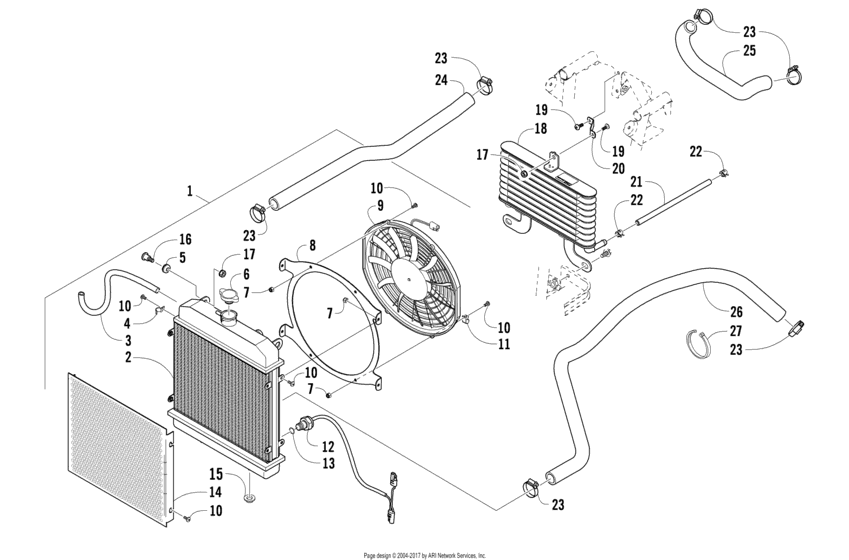

Cooling Assembly (92421) Diagram Arctic Cat MUDPRO MudPro 650 H1 Cat Green General 16787685-861155

Cooling Assembly (92421) Diagram Arctic Cat MUDPRO MudPro 650 H1 Cat Green General 16787685-861155
