Component List MUDPRO MudPro 650 H1
Front Body Panel And Headlight Assemblies (93390)

Difficulties in parts search?

Parts list

Front Body Panel And Headlight Assemblies

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 4506-290 Fender Front lime-assy (inc. 2-6)	4506-290	US $281.64
2	2 0411-818 Decal Amber - right; reflector Right - Amber	0411-818	US $10.43
2	2 0411-819 Decal Amber - left; reflector Left - Amber	0411-819	US $10.43
3	3 1411-574 Decal Off-road only; warning Off-Road Only	1411-574	US $18.13
4	4 2411-124 Decal General/age; warning General/Age	2411-124	US $47.42
5	5 0411-835 Decal Turn/hill; warning Turn/Hill	0411-835	US $6.42
6	6 1411-250 Decal Reverse/pre-ride; warning Reverse/Pre-Ride	1411-250	US $38.30
7	7 1411-725 Decal in.Arctic Catin.	1411-725	—
8	8 2411-368 Decal,front-top-rh (650 mud pro) Upper Right	2411-368	US $51.80
8	8 2411-369 Decal,front-top-lh (650 mud pro) Upper Left	2411-369	US $52.04
9	9 2411-370 Decal,front-upper-650 (mud pro) Upper Left	2411-370	US $42.42
10	10 2411-372 Decal,side-arctic cat-rh (650 mud pro) Upper Right	2411-372	US $42.27
10	10 2411-373 Decal,side-arctic cat-lh (650 mud pro) Upper Left	2411-373	US $42.27
11	11 0423-101 Screw Body Upper Left	0423-101	US $14.40
12	12 0423-654 Screw Shoulder Upper Left	0423-654	US $7.24
13	13 0423-091 Bushing Shift Upper Left	0423-091	US $4.22
14	14 2516-380 Bracket Right; fender support Right	2516-380	US $24.85
14	14 2516-381 Bracket Left; fender support Left	2516-381	US $27.38
15	15 0423-540 Nut Lock Left	0423-540	US $3.48
16	16 8476-616 Screw Cap Left	8476-616	US $2.90
17	17 0623-038 Nut w/washer Left	0623-038	US $2.15
18	18 8410-830 Screw Machine Left	8410-830	US $6
19	19 0423-999 Washer Left	0423-999	US $11.52
20	20 1423-051 Spacer,steel Left	1423-051	US $31.64
21	21 0423-465 Grommet Left	0423-465	US $32.88
22	22 8432-802 Nut Lock Left	8432-802	US $7.04
23	23 0509-044 Headlight assembly Right Right \| (inc. 9)	0509-044	US $170.67
23	23 0509-035 Headlight assembly Left Left \| (inc. 9)	0509-035	US $170.67
24	24 0409-055 Bulb Left \| (inc. 9)	0409-055	—
25	25 0423-514 Stud Headlight; adjuster Headlight	0423-514	US $13.34
26	26 0423-522 Spring Adjuster Headlight	0423-522	US $5
27	27 0423-513 Knob Adjuster Headlight	0423-513	US $7.57
28	28 0623-785 Screw Self-tapping Headlight	0623-785	US $8.80
29	29 8050-217 Washer Headlight	8050-217	US $3
30	30 0423-447 Grommet Headlight	0423-447	US $9.06
31	31 2406-300 Panel Right; side Lower - Right	2406-300	US $76.61
31	31 2406-419 Panel Lower - Left	2406-419	—
32	32 0423-678 Grommet Lower - Left	0423-678	US $14.40
33	33 2406-970 Cover,snorkel front-black Front Black	2406-970	US $91.87
34	34 2411-379 Decal,snorkel-upper (lime 650 mp) Upper	2411-379	US $52.04
35	35 2411-378 Decal,"mud pro"-snorkel-lime(650 mud pro Upper	2411-378	US $28.18
36	36 0423-577 Clip U-nut Upper	0423-577	US $2.90
37	37 2406-979 Cover,snorkel rear-black Rear Black	2406-979	US $75.71
38	38 8468-645 Screw Machine Rear Black	8468-645	US $17
39	39 8468-616 Screw Machine Rear Black	8468-616	US $3.52
40	40 0623-362 Rivet Plastic Rear Black	0623-362	US $4.40
41	41 2416-100 Shield Splash Rear Black	2416-100	US $12.62
42	42 0423-535 Rivet Reinstallable Rear Black	0423-535	US $9.05
43	43 2516-170 Cover Access Rear Black	2516-170	US $41.36
44	44 1406-484 Cover Steering post Rear Black	1406-484	US $18.70
45	45 0470-513 Cover Storage box Rear Black	0470-513	from US $24.45
46	46 1406-573 Box Storage Rear Black	1406-573	US $27.22
47	47 2506-234 Lid Storage box w/latch w/Latch \| (inc. 25-26)	2506-234	US $35.30
48	48 1406-599 Latch Storage box w/Latch \| (inc. 25-26)	1406-599	US $19.54
49	49 0470-514 Lid Storage box w/Latch \| (inc. 25-26)	0470-514	US $44.38

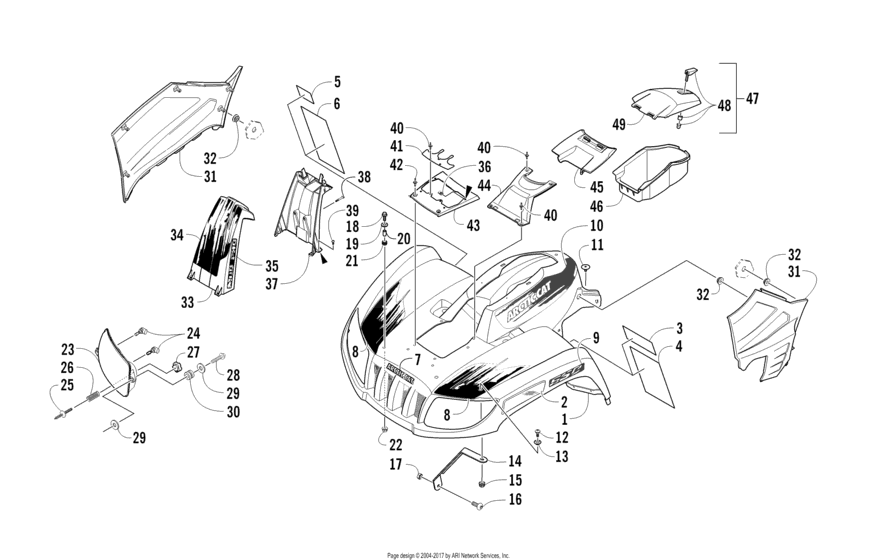

Front Body Panel And Headlight Assemblies (93390) Diagram Arctic Cat MUDPRO MudPro 650 H1 Cat Green-Black General 16790054-861215

Front Body Panel And Headlight Assemblies (93390) Diagram Arctic Cat MUDPRO MudPro 650 H1 Cat Green-Black General 16790054-861215
