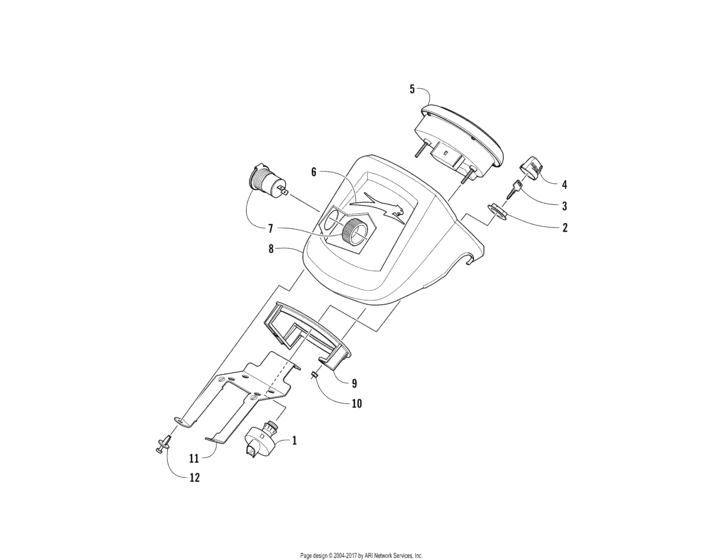

Instrument Pod Assembly (301711) Diagram Arctic Cat MUDPRO MudPro 700 Limited
- Model code
- A2017MLT1PUSP
- Engine Capacity
- 700
- Year
- 2017
- Commercial Name
- MudPro 700 Limited
- Sales region
- General
- Colour
- Black
- Model
- MudPro 700 Limited
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0430-090 SwitchAssembly; ignition Assembly | (inc. 8-10) |
0430-090 |
US $71.66 |
||
|
2
|
2
0430-050 NutIgnition switch; flange Assembly | (inc. 8-10) |
0430-050 |
US $2.56 |
||
|
3
|
3
0430-042 KeyBlank; ignition Y Series - Left-Side Cut |
0430-042 |
US $8.43 |
||
|
3
|
3
0430-043 KeyBlank; ignition Z Series - Right-Side Cut |
0430-043 |
US $8.43 |
||
|
4
|
4
0430-054 Cover, keyKey Z Series - Right-Side Cut |
0430-054 |
US $17.09 |
||
|
5
|
5
0520-312 Gauge, LcdZ Series - Right-Side Cut |
0520-312 |
US $579.82 |
||
|
6
|
6
4411-479 EMBLEM,AIRCATZ Series - Right-Side Cut |
4411-479 |
US $9.90 |
||
|
7
|
7
0641-897 Outlet12v; accessory 12V |
0641-897 |
US $26.21 |
||
|
8
|
8
0505-697 Pod,instrument-black-ptdBlack |
0505-697 |
US $107.02 |
||
|
9
|
9
0420-065 ClampPlastic Black |
0420-065 |
US $6 |
||
|
10
|
10
0423-493 Nut w/washerBlack |
0423-493 |
US $2.15 |
||
|
11
|
11
2506-470 BracketInstrument pod; mounting Instrument Pod |
2506-470 |
US $27.22 |
||
|
12
|
12
0423-535 RivetReinstallable Instrument Pod |
0423-535 |
US $9.05 |
