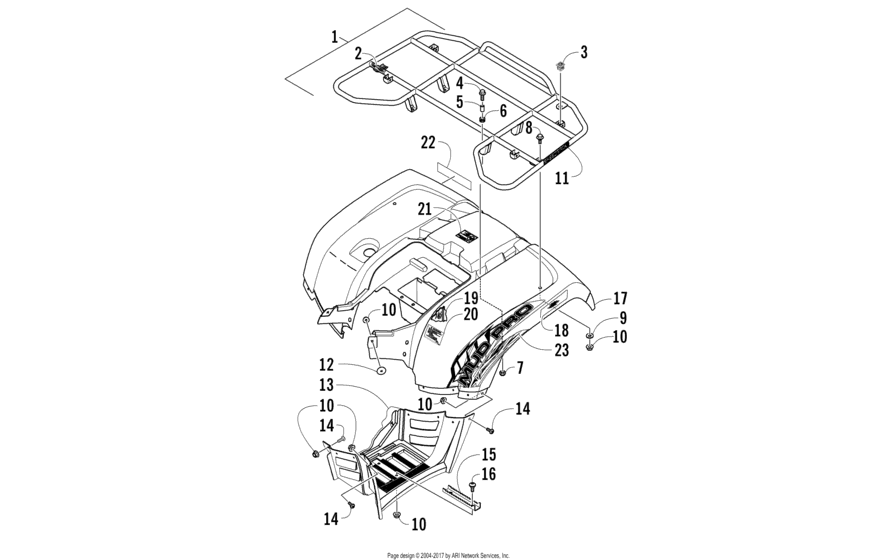

Rear Rack, Body Panel, And Footwell Assemblies (97636) Diagram Arctic Cat MUDPRO MudPro 700 Limited
- Model code
- A2013MLT1PUST
- Engine Capacity
- 700
- Year
- 2013
- Commercial Name
- MudPro 700 Limited
- Sales region
- General
- Colour
- Metallic Cat Green
- Model
- MudPro 700 Limited
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2506-125 RackAssembly; rear Assembly | (inc. 2-3) |
2506-125 |
US $407.07 |
||
|
2
|
2
0411-648 DecalRear rack load; warning Load |
0411-648 |
US $4.19 |
||
|
3
|
3
0441-592 BushingRack Load |
0441-592 |
US $30.60 |
||
|
4
|
4
8410-830 ScrewMachine Load |
8410-830 |
US $6 |
||
|
5
|
5
0423-669 SpacerLoad |
0423-669 |
US $7.24 |
||
|
6
|
6
0423-465 GrommetLoad |
0423-465 |
US $32.88 |
||
|
7
|
7
8432-802 NutLock Load |
8432-802 |
US $7.04 |
||
|
8
|
8
0423-654 ScrewShoulder Load |
0423-654 |
US $7.24 |
||
|
9
|
9
8050-222 WasherLoad |
8050-222 |
US $17.60 |
||
|
10
|
10
8427-602 NutLoad |
8427-602 |
US $1.45 |
||
|
11
|
11
0411-965 DecalLoad |
0411-965 |
US $4.24 |
||
|
12
|
12
0423-101 ScrewBody Load |
0423-101 |
US $14.40 |
||
|
13
|
13
1406-356 FootwellRight Right |
1406-356 |
US $97.14 |
||
|
13
|
13
2406-429 FootwellLeft Left |
2406-429 |
US $105.58 |
||
| replacement | |||||
|
13
|
13
6406-763 FOOTWELL,AUTO-LHLeft |
6406-763 |
US $102.50 |
||
|
14
|
14
0423-419 ScrewMachine Left |
0423-419 |
US $6.70 |
||
|
15
|
15
5506-497 FOOTPEG,BLACKBlack |
5506-497 |
US $17.25 |
||
|
16
|
16
0423-355 ScrewShoulder Black |
0423-355 |
US $5.56 |
||
|
17
|
17
2516-952 Fender,rear m.black-assyAssembly Black | (inc. 18-21) |
2516-952 |
US $839.97 |
||
|
18
|
18
1411-592 DecalRear - right; reflector Right |
1411-592 |
US $6.94 |
||
|
18
|
18
1411-593 DecalRear - left; reflector Left |
1411-593 |
US $6.94 |
||
|
19
|
19
0470-658 ShieldHeat Left |
0470-658 |
US $3.73 |
||
|
20
|
20
2411-143 DecalTire pressure; warning Left |
2411-143 |
US $4.32 |
||
|
21
|
21
1411-809 DecalPassenger Passenger |
1411-809 |
US $6.69 |
||
|
22
|
22
1411-725
Decal
in.Arctic Catin. |
1411-725 |
— | ||
|
23
|
23
3411-110 Decal,fender-rear-rh-agm (mp 700 i)Right |
3411-110 |
US $41.36 |
||
|
23
|
23
3411-111 Decal,fender-rear-lh-agm (mp 700 i)Left |
3411-111 |
US $33.69 |
||
