Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 0823-537 PULLEY,DRIVEN-ASSY(LP3) Assembly \| (inc. 2-9)	0823-537	US $768.74
2	2 0823-554 PULLEY,DRIVEN-ASSY UNCALIBRATED (LP3) Uncalibrated \| (inc. 3-6)	0823-554	US $422.22
3	3 0823-454 SHOE,CAM-DRIVEN PULLEY Uncalibrated \| (inc. 3-6)	0823-454	US $8.34
4	4 0823-177 Screw Machine Uncalibrated \| (inc. 3-6)	0823-177	US $2.66
5	5 0823-383 Key-1/4" Uncalibrated \| (inc. 3-6)	0823-383	US $14.22
6	6 0823-455 SNAP RING,EXTERNAL-35.2 ID External	0823-455	US $6.27
7	7 0823-382 Cam,driven clutch-35? (permold) External	0823-382	US $256.54
8	8 0823-348 Spring-driven clutch External	0823-348	US $43.38
9	9 0823-457 superceded External	0823-457	US $17.25
10	10 0827-073 Nut External	0827-073	US $6.67
11	11 0823-276 Plate,movable drive-z- External	0823-276	US $29.09
12	12 0823-277 Damper,movable drive-z- External	0823-277	US $6.05
13	13 0823-273 Sheave,movable drive-asm-z- External	0823-273	US $209.46
14	14 0823-013 V-belt External	0823-013	US $159.78
15	15 0823-360 Spacer, movable drive sheave 93 -z- External	0823-360	US $55.50
16	16 0823-295 Roller External	0823-295	US $9.74
17	17 0823-272 Sheave,stationary-drive-mach-z- External	0823-272	US $93.89
18	18 0823-015 Spacer Fixed drive face External	0823-015	US $146.43
19	19 0470-531 O-ring External	0470-531	US $4.22
20	20 0823-556 CLUTCH DRUM/SHAFT Assembly	0823-556	US $328.27
21	21 0830-189 Seal Assembly	0830-189	US $11.47
22	22 0827-011 Nut Assembly	0827-011	US $6.05
23	23 0823-484 Clutch centrifical-6 plate-z 2 6 Plate	0823-484	US $256.54
24	24 0828-076 Shim 6 Plate	0828-076	—

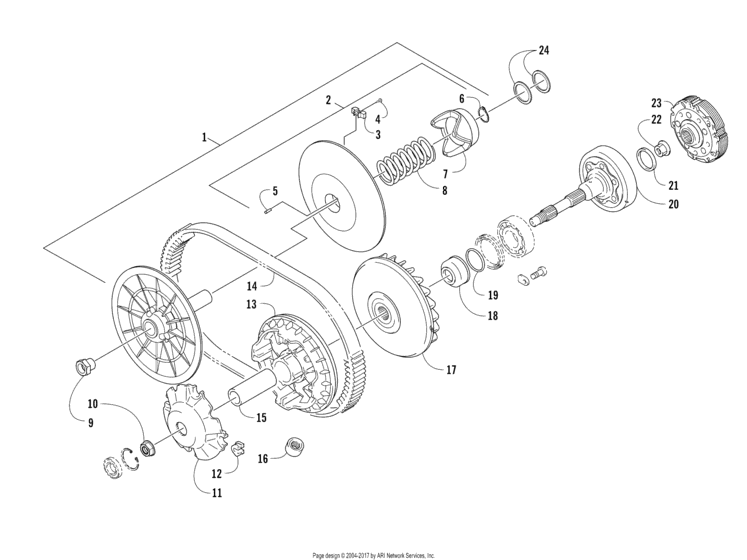

Transmission Assembly (302262) Diagram Arctic Cat MUDPRO ALTERRA MudPro 700 Limited Gray General 16808027-861673
