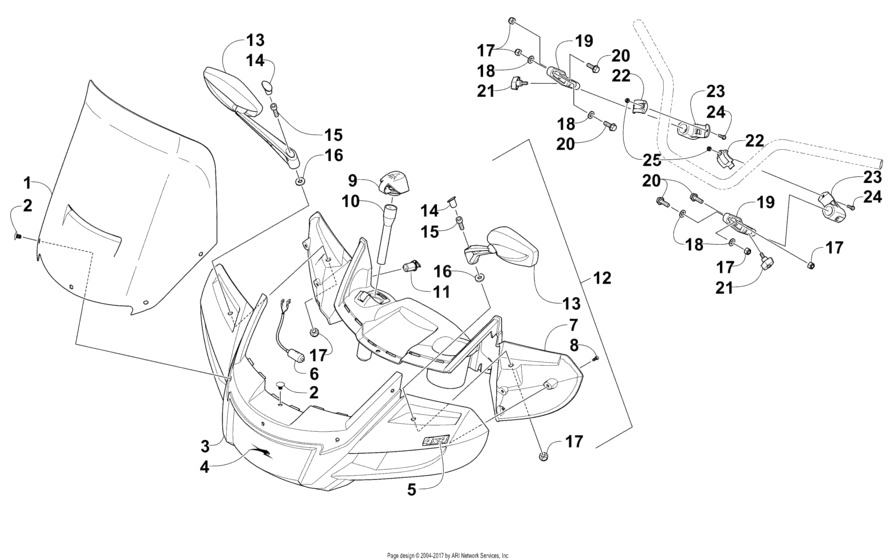

Windshield Assembly (300094) Diagram Arctic Cat TRV 700 TRV 700 Limited
- Model code
- A2015TCT1PUSE
- Engine Capacity
- 700
- Year
- 2015
- Commercial Name
- TRV 700 Limited
- Sales region
- General
- Colour
- Red
- Model
- TRV 700 Limited
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0405-384 WindshieldRed |
0405-384 |
US $264.62 |
||
|
2
|
2
1436-313 KitPlug,christmas tree 8.5 x 13,10 pk 8.5 x 13 (10 pack) |
1436-313 |
US $9.95 |
||
|
3
|
3
0505-797 FAIRING,OUTER-VIBE MET RED-PTDRed |
0505-797 |
US $444.89 |
||
|
4
|
4
4411-479 EMBLEM,AIRCATRed |
4411-479 |
US $9.90 |
||
|
5
|
5
1411-989 DecalBase - in.4x4in. |
1411-989 |
US $19.74 |
||
|
6
|
6
0486-319 AdapterOutlet accessory; harness Outlet Accessory |
0486-319 |
US $41.36 |
||
|
7
|
7
0405-332 ConsoleBlack Black |
0405-332 |
US $308.06 |
||
|
8
|
8
0423-950 ScrewSelf-tapping Black |
0423-950 |
US $28.02 |
||
|
9
|
9
0405-353 CoverFlashlight Black |
0405-353 |
US $37.31 |
||
|
10
|
10
1441-839 FlashlightBlack |
1441-839 |
US $36.30 |
||
|
11
|
11
0641-897 Outlet12v; accessory 12V |
0641-897 |
US $26.21 |
||
|
12
|
12
1436-713 Mirror kit, windguard(inc. 13-16 and two No. 17) |
1436-713 |
US $80.59 |
||
|
14
|
14
0423-952 Plug(inc. 13-16 and two No. 17) |
0423-952 |
US $6.44 |
||
|
15
|
15
8440-835 ScrewCap (inc. 13-16 and two No. 17) |
8440-835 |
US $10.18 |
||
|
16
|
16
0423-951 WasherRubber (inc. 13-16 and two No. 17) |
0423-951 |
US $6.62 |
||
|
17
|
17
8427-805 NutLock (inc. 13-16 and two No. 17) |
8427-805 |
US $5.88 |
||
|
18
|
18
0423-948 Washer(inc. 13-16 and two No. 17) |
0423-948 |
US $5.04 |
||
|
19
|
19
0405-352 PinTapered; mounting Tapered |
0405-352 |
US $119.52 |
||
| replacement | |||||
|
19
|
19
1436-545 Kit,bracket-2 piece cruiser windshieldTapered |
1436-545 |
US $78.74 |
||
|
20
|
20
0423-949 ScrewCap Tapered |
0423-949 |
US $18.68 |
||
|
21
|
21
1441-902 Knob,plastic-blk-10mmTapered |
1441-902 |
US $8.02 |
||
|
22
|
22
0405-351 CapHandlebar clamp Tapered |
0405-351 |
US $58.46 |
||
| replacement | |||||
|
22
|
22
1436-545 Kit,bracket-2 piece cruiser windshieldTapered |
1436-545 |
US $78.74 |
||
|
23
|
23
1436-545 Kit,bracket-2 piece cruiser windshield2-Piece - Cruiser Windshield |
1436-545 |
US $78.74 |
||
|
24
|
24
8471-520 ScrewMachine 2-Piece - Cruiser Windshield |
8471-520 |
US $2.68 |
||
|
25
|
25
8431-503 NutLock 2-Piece - Cruiser Windshield |
8431-503 |
US $2.82 |
||
