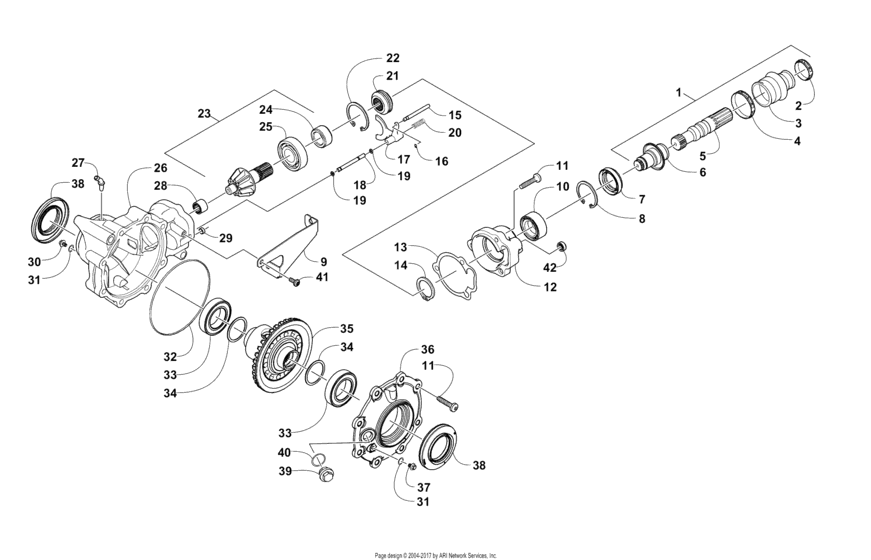

Front Drive Gearcase Assembly (302150) Diagram Arctic Cat VLX 700 VLX 700
- Model code
- A2017IBT4EUSH
- Engine Capacity
- 700
- Year
- 2017
- Commercial Name
- VLX 700
- Sales region
- General
- Colour
- Camo
- Model
- VLX 700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
-
|
-
2502-515 Complete Front Drive Gearcase AssemblyTowing |
2502-515 |
US $2,049.76 |
||
| replacement | |||||
|
-
|
-
2502-658 GEARCASE,FRONT-ASSY 3.1(MECH LOCK)Towing |
2502-658 |
US $2,263.75 |
||
|
1
|
1
1502-083 ShaftAssembly; propeller Assembly | (inc. 2-6) |
1502-083 |
US $158.54 |
||
|
2
|
2
0423-411 ClampBoot Assembly | (inc. 2-6) |
0423-411 |
US $11.04 |
||
|
3
|
3
0402-985 BootAssembly | (inc. 2-6) |
0402-985 |
from US $8.74 |
||
|
4
|
4
0423-393 ClampBoot Assembly | (inc. 2-6) |
0423-393 |
US $5.70 |
||
|
5
|
5
1402-045 ShaftOutput Assembly | (inc. 2-6) |
1402-045 |
US $54.50 |
||
|
6
|
6
1502-085
Shaft
Assembly | (inc. 2-6) |
1502-085 |
— | ||
| replacement | |||||
|
6
|
6
2502-156 SHAFT,INPUT-ASSEMBLYAssembly | (inc. 2-6) |
2502-156 |
US $99.95 |
||
|
7
|
7
1402-011 SealAssembly | (inc. 2-6) |
1402-011 |
US $10.05 |
||
|
8
|
8
0423-423 RingRetaining Assembly | (inc. 2-6) |
0423-423 |
US $5.87 |
||
|
9
|
9
2402-440 Bracket, 4X4 ActuatorAssembly | (inc. 2-6) |
2402-440 |
US $15.82 |
||
|
10
|
10
1402-043 BearingAssembly | (inc. 2-6) |
1402-043 |
US $73.68 |
||
|
11
|
11
0423-118 ScrewSelf-tapping Assembly | (inc. 2-6) |
0423-118 |
US $6.90 |
||
|
12
|
12
2502-520 Housing, PinionAssembly | (inc. 2-6) |
2502-520 |
US $86.82 |
||
|
13
|
13
0402-947 GasketFlange Assembly | (inc. 2-6) |
0402-947 |
US $4.21 |
||
|
14
|
14
0423-417 RingRetaining Assembly | (inc. 2-6) |
0423-417 |
US $9.54 |
||
|
15
|
15
2402-438 Shaft, 4X4 EngageAssembly | (inc. 2-6) |
2402-438 |
US $19.65 |
||
|
16
|
16
1423-491 Ring, RetainingAssembly | (inc. 2-6) |
1423-491 |
US $2.70 |
||
|
17
|
17
2402-437 Fork, SelectorAssembly | (inc. 2-6) |
2402-437 |
US $53.49 |
||
|
18
|
18
2402-439 Shaft, ShuttleAssembly | (inc. 2-6) |
2402-439 |
US $15.82 |
||
|
19
|
19
0423-147 O-ringAssembly | (inc. 2-6) |
0423-147 |
US $1.95 |
||
|
20
|
20
0402-999 SpringReturn Assembly | (inc. 2-6) |
0402-999 |
US $2.30 |
||
|
21
|
21
0402-413 CouplerDrive Assembly | (inc. 2-6) |
0402-413 |
US $66.61 |
||
|
22
|
22
1423-067 Ring,retaining-intl-65mm (dho-62 st zdl)Assembly | (inc. 2-6) |
1423-067 |
US $2.88 |
||
|
23
|
23
1502-851 Gear,pinion (11t) subassemblyAssembly - 11T | (inc. 27-28) |
1502-851 |
US $258.56 |
||
|
24
|
24
1402-977 Collar,retainingAssembly - 11T | (inc. 27-28) |
1402-977 |
US $56.51 |
||
|
25
|
25
0402-327 BearingAssembly - 11T | (inc. 27-28) |
0402-327 |
US $27.22 |
||
|
26
|
26
1502-856 Housing,gearcase-machinedAssembly - 11T | (inc. 27-28) |
1502-856 |
US $329.28 |
||
|
27
|
27
2402-160 FITTING,45 DEG BARBAssembly - 11T | (inc. 27-28) |
2402-160 |
US $49.44 |
||
|
28
|
28
0402-328 BearingNeedle Assembly - 11T | (inc. 27-28) |
0402-328 |
US $18.70 |
||
|
29
|
29
0402-411 PinDowel Assembly - 11T | (inc. 27-28) |
0402-411 |
US $8.34 |
||
|
30
|
30
1402-210 PlugMagnetic (inc. one No. 34) |
1402-210 |
US $21.60 |
||
|
31
|
31
0423-153 O-ringDrain plug (inc. one No. 34) |
0423-153 |
US $10.28 |
||
|
32
|
32
0423-149 O-ring(inc. one No. 34) |
0423-149 |
US $2.54 |
||
|
33
|
33
0402-393 Bearing(inc. one No. 34) |
0402-393 |
US $18.70 |
||
|
34
|
34
0402-407 Shim(inc. one No. 34) |
0402-407 |
US $11.47 |
||
|
35
|
35
2502-547 Gear, Ring - 34T34T |
2502-547 |
US $574.77 |
||
|
36
|
36
1502-897 Cover,gearcase-rear mach34T |
1502-897 |
US $131.78 |
||
|
37
|
37
1402-211 PlugOil level (inc. one No. 31) |
1402-211 |
US $21.60 |
||
|
38
|
38
2402-240 SEAL,48X84X9 FKM(inc. one No. 31) |
2402-240 |
US $18.30 |
||
|
39
|
39
0402-333 PlugFill (inc. 40) |
0402-333 |
US $14.38 |
||
|
40
|
40
0423-154 O-ringFill plug (inc. 40) |
0423-154 |
US $4.11 |
||
|
41
|
41
1423-515 Screw, Machine(inc. 40) |
1423-515 |
US $14.20 |
||
|
42
|
42
2402-453 Seal(inc. 40) |
2402-453 |
US $7.65 |
||
