Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 1505-017 Handlebar - Black Black	1505-017	US $32.27
2	2 0405-106 Grip Handlebar Black	0405-106	US $25.25
3	3 2502-564 Cover, Throttle Case Black	2502-564	US $42.37
4	4 0409-132 Control, Throttle - W/lever w/Lever \| (inc. 5-10)	0409-132	US $51.46
5	5 3007-392 Screw Cap w/Lever \| (inc. 5-10)	3007-392	US $3.46
6	6 3004-447 Washer Lock w/Lever \| (inc. 5-10)	3004-447	US $21.70
7	7 3003-030 Washer w/Lever \| (inc. 5-10)	3003-030	US $18.90
8	8 0409-133 Lever Throttle w/Lever \| (inc. 5-10)	0409-133	US $49.38
9	9 3423-014 Screw Cap w/Lever \| (inc. 5-10)	3423-014	US $13.50
10	10 3423-327 Nut w/Lever \| (inc. 5-10)	3423-327	US $2.37
11	11 1423-540 Screw, Machine w/Lever \| (inc. 5-10)	1423-540	US $2.40
12	12 1411-865 Decal Brake lever lock w/Lever \| (inc. 5-10)	1411-865	US $4.37
13	13 3409-019 Cover Switch housing w/Lever \| (inc. 5-10)	3409-019	US $3.39
14	14 0509-014 Switch Assembly; control Assembly \| (inc. 15-16)	0509-014	US $150.46
15	15 0409-028 Screw Assembly \| (inc. 15-16)	0409-028	US $4.64
16	16 0409-027 Screw Cap Assembly \| (inc. 15-16)	0409-027	US $4.64
17	17 2402-443 Lever, 2X4 Lock Assembly \| (inc. 15-16)	2402-443	US $72.28
	replacement
17	17 240-2553 Lever, 2X4 - Assy Assembly \| (inc. 15-16)	240-2553	US $83.79
18	18 0487-110 Cable, 2X4 Lock Assembly \| (inc. 15-16)	0487-110	US $36.30

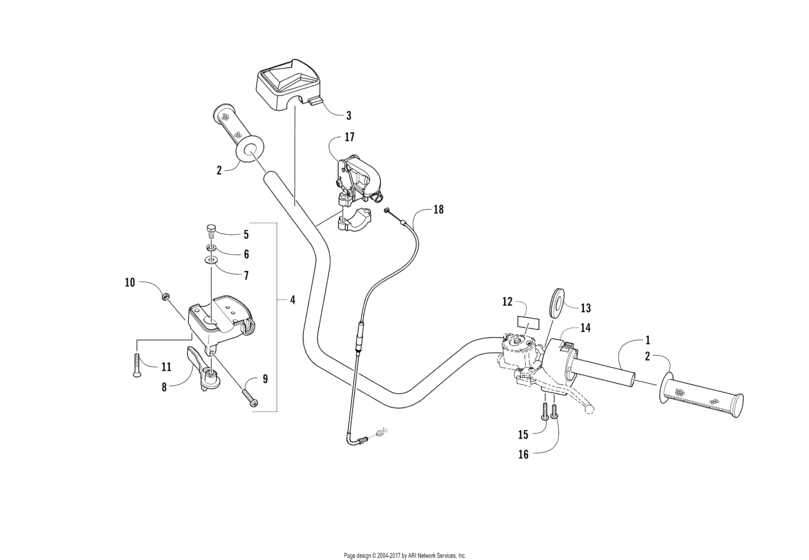

Handlebar Assembly (302139) Diagram Arctic Cat VLX 700 VLX 700 Camo General 16807639-861663
