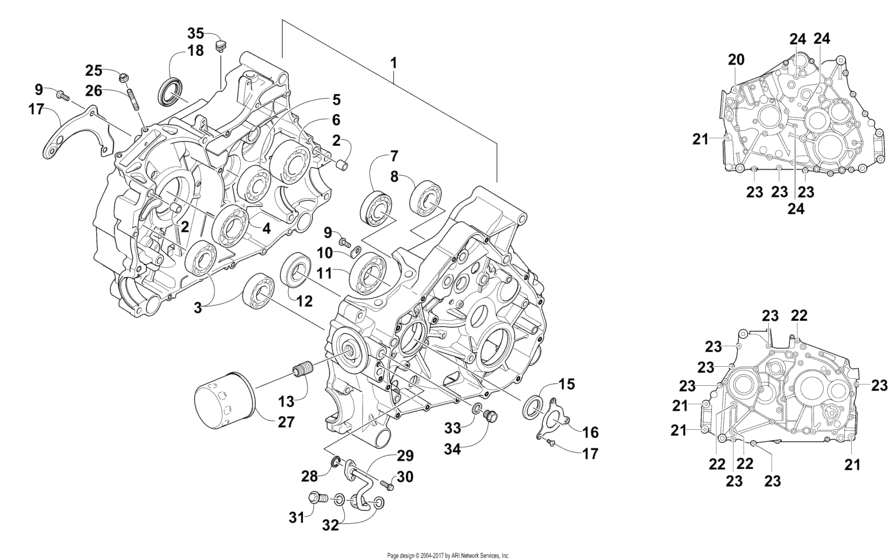

Crankcase assembly (301354) Diagram Arctic Cat XC 450 EFI
- Model code
- A2018KCK4CUSR
- Engine Capacity
- 450
- Year
- 2018
- Colour
- Red
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0801-191 CrankcaseAssembly Assembly | (inc. 2-21) |
0801-191 |
US $4,001.02 |
||
|
2
|
2
0829-050 PinDowel Assembly | (inc. 2-21) |
0829-050 |
US $4.32 |
||
|
3
|
3
3313-745 BearingAssembly | (inc. 2-21) |
3313-745 |
US $75.71 |
||
|
4
|
4
0832-087 BearingAssembly | (inc. 2-21) |
0832-087 |
US $71.66 |
||
|
5
|
5
3304-198 BearingAssembly | (inc. 2-21) |
3304-198 |
US $27.22 |
||
|
6
|
6
0832-074 BearingDriveshaft Assembly | (inc. 2-21) |
0832-074 |
US $147.44 |
||
|
7
|
7
3304-195 BearingAssembly | (inc. 2-21) |
3304-195 |
US $23.76 |
||
|
8
|
8
3304-699 BearingRadial |
3304-699 |
US $23.76 |
||
|
9
|
9
0826-144 ScrewPan-head Radial |
0826-144 |
US $1.95 |
||
|
10
|
10
0822-104 RetainerBearing Radial |
0822-104 |
US $3.73 |
||
|
11
|
11
0832-019 BearingRadial |
0832-019 |
US $125.22 |
||
|
12
|
12
0832-020 BearingCrankshaft Radial |
0832-020 |
US $170.67 |
||
|
13
|
13
0812-066 UnionOil filter Radial |
0812-066 |
US $14.38 |
||
|
14
|
14
0830-058 SealCrankshaft Radial |
0830-058 |
US $32.27 |
||
|
15
|
15
0805-018 RetainerRadial |
0805-018 |
US $18.99 |
||
|
16
|
16
0826-145 ScrewFlat-head Radial |
0826-145 |
US $2.14 |
||
|
17
|
17
0801-018 PlateRight; oil guide Right |
0801-018 |
US $12.62 |
||
|
18
|
18
0830-066 SealDriveshaft Right |
0830-066 |
US $32.27 |
||
|
19
|
19
0801-027 TubeCrankcase; vent Crankcase |
0801-027 |
US $8.61 |
||
|
20
|
20
3307-048 BOLT FLANGE 8*60 (G)Crankcase |
3307-048 |
US $5.70 |
||
|
21
|
21
3304-607 BoltFlange Crankcase |
3304-607 |
US $8.64 |
||
|
22
|
22
0826-064 BoltFlange Crankcase |
0826-064 |
US $8.42 |
||
|
23
|
23
3307-051 BOLT FLANGE 6*45 **07 C.2005.07.01Crankcase |
3307-051 |
US $5.70 |
||
|
24
|
24
3307-052 BOLT FLANGE SH 6*70Crankcase |
3307-052 |
US $7.25 |
||
|
25
|
25
3304-654 NutCrankcase |
3304-654 |
US $7.90 |
||
|
26
|
26
3313-721 BoltStud Crankcase |
3313-721 |
US $2.14 |
||
|
27
|
27
0812-034
Filter
Crankcase |
0812-034 |
— | ||
| replacement | |||||
|
27
|
27
0812-135 FILTER,OIL (UB/BOXED)Crankcase |
0812-135 |
US $19.78 |
||
|
28
|
28
0830-172 O-ringOil fitting Crankcase |
0830-172 |
US $3.39 |
||
|
29
|
29
0812-086 OillineCrankcase |
0812-086 |
US $49.44 |
||
|
30
|
30
3303-617 BoltFlange Crankcase |
3303-617 |
US $2.79 |
||
| replacement | |||||
|
30
|
30
3307-049 BOLT FLANGE SH 6*18Crankcase |
3307-049 |
US $3.92 |
||
|
31
|
31
0812-084 BoltBanjo-fitting Crankcase |
0812-084 |
US $6.46 |
||
|
32
|
32
0812-085 WasherCrankcase |
0812-085 |
US $2.93 |
||
|
33
|
33
0830-143 Gasket14 x 19 x 1.35 |
0830-143 |
US $15.38 |
||
|
34
|
34
0835-004 PlugOil pressure 14 x 19 x 1.35 |
0835-004 |
US $8.61 |
||
|
35
|
35
3313-744 Snowflap, yel w/black decal-'05 m14 x 19 x 1.35 |
3313-744 |
US $4.70 |
||
