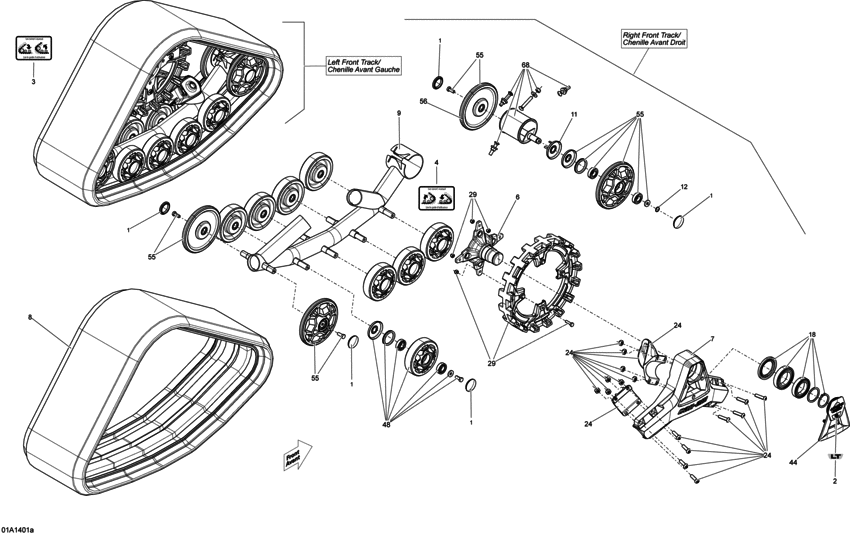

07- Track Kit Front Diagram Bombardier Accessories
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
570063600 Capuchon roue *cap-wheel |
570063600 |
US $43.50 |
||
|
2
|
2
704903595 DECAL, LT |
704903595 |
US $25.31 |
||
|
3
|
3
704903853 DECAL, SEE OWNER S MANUAL |
704903853 |
US $12.46 |
||
|
4
|
4
704903854 DECAL, SEE OWNER S MANUAL |
704903854 |
US $11.17 |
||
|
6
|
6
705401210 MAIN AXLE |
705401210 |
US $480.37 |
||
|
7
|
7
705401212 ALUMINUM LINK |
705401212 |
US $720.77 |
||
|
8
|
8
705401458 TRACK FRONT |
705401458 |
US $906.75 |
||
|
9
|
9
705401459 LH FRONT FRAME |
705401459 |
US $549.73 |
||
|
9
|
9
705401460 RH FRONT FRAME |
705401460 |
US $549.73 |
||
|
11
|
11
705401469 SEAL CAP |
705401469 |
US $8.48 |
||
|
12
|
12
705401489 SNAP RING |
705401489 |
US $11 |
||
|
18
|
18
715001602 BEARING KIT |
715001602 |
US $128.71 |
||
|
24
|
24
715001603 LH CLAMP KIT |
715001603 |
US $541.59 |
||
|
24
|
24
715001608 RH CLAMP KIT |
715001608 |
US $541.59 |
||
|
29
|
29
715001604 SPROCKET KIT |
715001604 |
US $217.46 |
||
|
44
|
44
715002044 COVET KIT |
715002044 |
US $57.51 |
||
|
48
|
48
715002045 WHEEL KIT, 144 MM |
715002045 |
US $97.89 |
||
|
48a
|
48a
503190396 Roulement bille*ball bearing |
503190396 |
US $10.69 |
||
|
55
|
55
715002046 WHEEL KIT, 190 MM |
715002046 |
US $177.45 |
||
|
55a
|
55a
503190396 Roulement bille*ball bearing |
503190396 |
US $10.69 |
||
|
68
|
68
715002058 TENSIONNER KIT |
715002058 |
US $170.65 |
