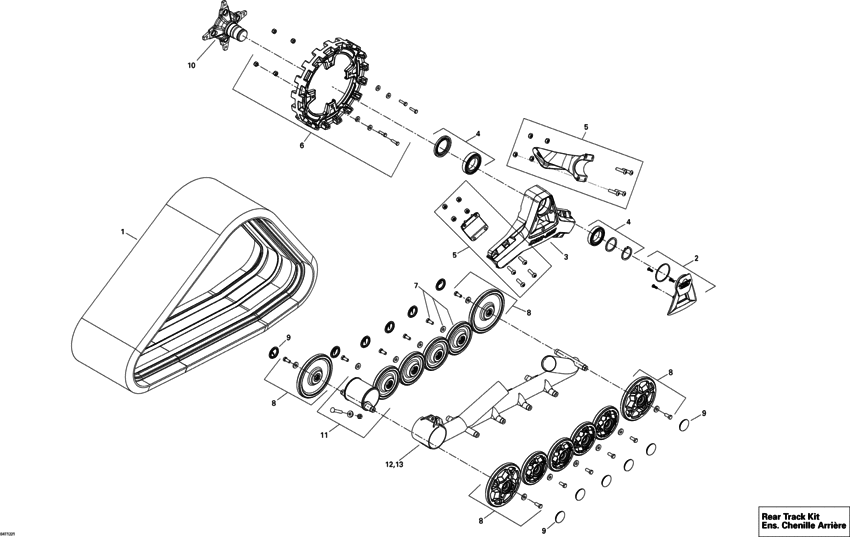

07- Rear Track Kit Diagram Bombardier Accessories
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
705501614 REAR TRACK |
705501614 |
US $916.95 |
||
|
2
|
2
715001611 COUVERCLE *COVER KIT |
715001611 |
US $62.17 |
||
|
3
|
3
705401212 ALUMINUM LINK |
705401212 |
US $720.77 |
||
|
4
|
4
715001602 BEARING KIT |
715001602 |
US $128.71 |
||
|
5
|
5
715001609 LH CLAMP KIT |
715001609 |
US $662.98 |
||
|
5
|
5
715001610 RH CLAMP KIT |
715001610 |
US $662.98 |
||
|
6
|
6
715001604 SPROCKET KIT |
715001604 |
US $217.46 |
||
|
7
|
7
715001605 144MM WHEEL |
715001605 |
US $99.45 |
||
|
8
|
8
715001606
190MM WHEEL
|
715001606 |
— | ||
|
9
|
9
570063600 Capuchon roue *cap-wheel |
570063600 |
US $43.50 |
||
|
10
|
10
705401210 MAIN AXLE |
705401210 |
US $480.37 |
||
|
11
|
11
715001626 TENSIONNER |
715001626 |
US $190.16 |
||
|
12
|
12
705501618 RH REAR FRAME |
705501618 |
US $405.93 |
||
|
13
|
13
705501615 LH REAR FRAME |
705501615 |
US $405.93 |
