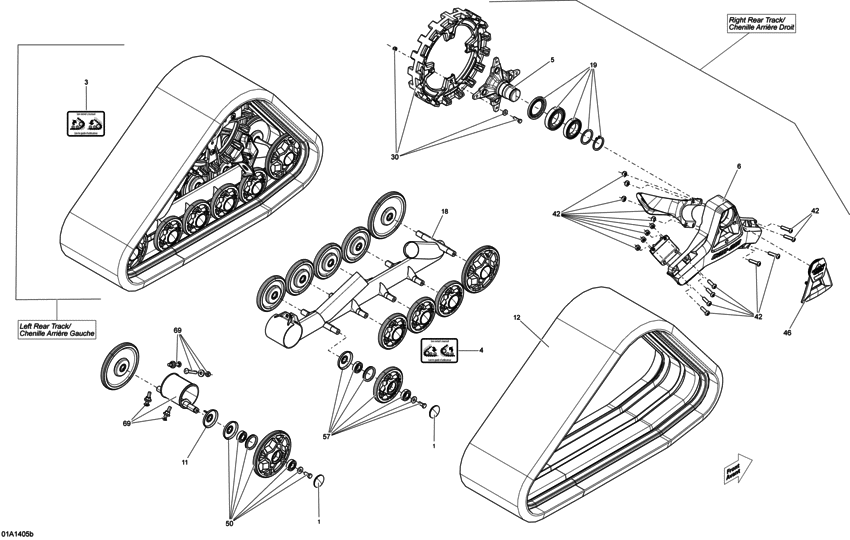

07- Track Kit Rear_01A1405B Diagram Bombardier Accessories
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
570063600 Capuchon roue *cap-wheel |
570063600 |
US $43.50 |
||
|
3
|
3
704903854 DECAL, SEE OWNER S MANUAL |
704903854 |
US $11.17 |
||
|
4
|
4
704903853 DECAL, SEE OWNER S MANUAL |
704903853 |
US $12.46 |
||
|
5
|
5
705401210 MAIN AXLE |
705401210 |
US $480.37 |
||
|
6
|
6
705401212 ALUMINUM LINK |
705401212 |
US $720.77 |
||
|
11
|
11
705401469 SEAL CAP |
705401469 |
US $8.48 |
||
|
12
|
12
705501614 REAR TRACK |
705501614 |
US $916.95 |
||
|
18
|
18
705501954 LH REAR FRAME |
705501954 |
US $400.84 |
||
|
18
|
18
705501955 RH REAR FRAME |
705501955 |
US $400.84 |
||
|
19
|
19
715001602 BEARING KIT |
715001602 |
US $128.71 |
||
|
30
|
30
715001604 SPROCKET KIT |
715001604 |
US $217.46 |
||
|
42
|
42
715001609 LH CLAMP KIT |
715001609 |
US $662.98 |
||
|
42
|
42
715001610 RH CLAMP KIT |
715001610 |
US $662.98 |
||
|
46
|
46
715002044 COVET KIT |
715002044 |
US $57.51 |
||
|
50
|
50
715002046 WHEEL KIT, 190 MM |
715002046 |
US $177.45 |
||
|
50a
|
50a
503190396 Roulement bille*ball bearing |
503190396 |
US $10.69 |
||
|
57
|
57
715002054 WHEEL KIT, 144 MM |
715002054 |
US $97.50 |
||
|
57a
|
57a
503190396 Roulement bille*ball bearing |
503190396 |
US $10.69 |
||
|
69
|
69
715002059 TENSIONNER KIT |
715002059 |
US $177.45 |
