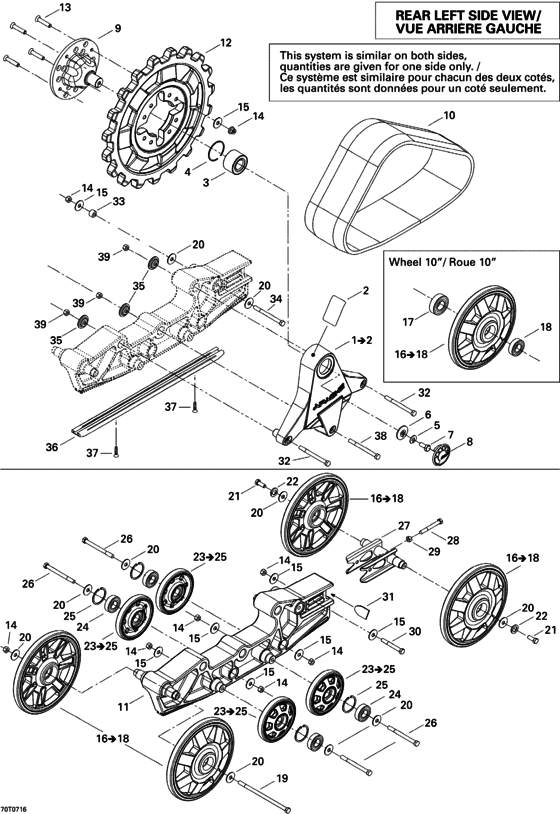

08- Track Rear Diagram Bombardier Accessories
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
705500903 Ens. lien alu *link alum. kit |
705500903 |
US $402.85 |
||
|
2
|
2
715002018
CONE BEARING KIT
|
715002018 |
— | ||
|
3
|
3
293370019 Circlip *circlip |
293370019 |
US $6.92 |
||
|
4
|
4
704901283 Etiquette avert*label-warning |
704901283 |
US $0.02 |
||
|
5
|
5
250200005 Washer-spring conical |
250200005 |
US $21 |
||
|
6
|
6
250200063
Back-up washer
|
250200063 |
— | ||
|
7
|
7
250000268 Screw-hex.cap m12x60 gr.10.9 din.933 |
250000268 |
US $13.21 |
||
|
8
|
8
291002467 Bouchon parecho*plug-bumper |
291002467 |
US $19.33 |
||
|
9
|
9
705400536
013 principal *axle main
|
705400536 |
— | ||
|
9
|
9
705400442
Rh main axle
|
705400442 |
— | ||
|
10
|
10
705500799
Chenille arr. *track rear
|
705500799 |
— | ||
|
10a
|
10a
715900131 CLEAT |
715900131 |
US $20.25 |
||
|
11
|
11
705500800
Chassis arr. *frame rear
|
705500800 |
— | ||
|
11
|
11
705500821 Chassis arr. *frame rear |
705500821 |
US $163.17 |
||
|
12
|
12
705400445
Rh front sprocket
|
705400445 |
— | ||
| replacement | |||||
|
12
|
12
705400537
Barbotin *sprocket
|
705400537 |
— | ||
|
13
|
13
250000269 Screw-socket hd.ctsk. 3/8-16x2 |
250000269 |
US $13.92 |
||
|
14
|
14
250100084 Elastic stop-nut 3/8-16 gr2 |
250100084 |
US $4.05 |
||
|
15
|
15
250200064 Flat washer 3/8 |
250200064 |
US $2.01 |
||
|
16
|
16
705400447
Roue 10" *wheel 10
|
705400447 |
— | ||
|
17
|
17
503190795
Roulement bille*ball bearing
|
503190795 |
— | ||
| replacement | |||||
|
17
|
17
293350115 ROULEMENT BILLE*BALL BEARING |
293350115 |
US $12.85 |
||
|
18
|
18
503190396 Roulement bille*ball bearing |
503190396 |
US $10.69 |
||
|
19
|
19
250000270 Screw-hex.cap 3/8-16x7 1/2 gr5 |
250000270 |
US $13.21 |
||
|
20
|
20
250200065 Flat washer 3/8 id x 1 1/4 od x .120 |
250200065 |
US $7.09 |
||
|
21
|
21
250000271 Screw-hex.cap 3/8-16x1 gr5 |
250000271 |
US $7.09 |
||
|
22
|
22
250200066 Lock washer 3/8 |
250200066 |
US $2.01 |
||
|
23
|
23
705400446 Roue 5.66" *wheel 5.66 |
705400446 |
US $48.93 |
||
|
24
|
24
503190795
Roulement bille*ball bearing
|
503190795 |
— | ||
| replacement | |||||
|
24
|
24
293350115 ROULEMENT BILLE*BALL BEARING |
293350115 |
US $12.85 |
||
|
25
|
25
371901700 Circlip int. *circlip-int. |
371901700 |
US $58.30 |
||
|
26
|
26
250000272 Screw-hex.cap 3/8-16x4 1/4 gr5 |
250000272 |
US $12.19 |
||
|
27
|
27
705400468 Tens. chenille *track tension. |
705400468 |
US $155.01 |
||
|
28
|
28
250000274 Screw-hex.cap f-thread 3/8-16x4 gr5 |
250000274 |
US $13.21 |
||
|
29
|
29
250100086 Hexagonal nut 3/8-16 gr2 |
250100086 |
US $4.05 |
||
|
30
|
30
250000275 Screw-hex.cap 3/8-16x3 gr5 |
250000275 |
US $7.09 |
||
|
31
|
31
705400516 Appui d ajust. *adjus. support |
705400516 |
US $13.21 |
||
|
32
|
32
XXX
Not Sold
|
XXX |
— | ||
|
33
|
33
705400519 Entretoise *spacer |
705400519 |
US $15.27 |
||
|
34
|
34
250000276 Screw-hex.cap 3/8-16x5 gr8 |
250000276 |
US $12.19 |
||
|
35
|
35
250200068 Embossed washer |
250200068 |
US $7.09 |
||
|
36
|
36
705500844 Glissiere arr. *slide rear |
705500844 |
US $26.49 |
||
|
37
|
37
250000277 Woodscrew #12 x 1 1/4 flat head |
250000277 |
US $4.05 |
||
|
38
|
38
XXX
Not Sold
|
XXX |
— | ||
|
39
|
39
XXX
Not Sold
|
XXX |
— | ||
