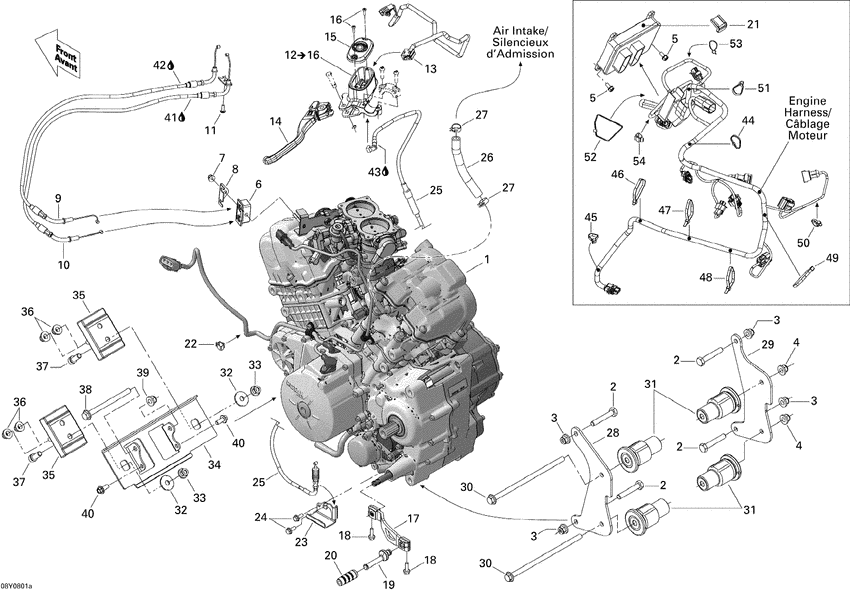

01- engine 1 Diagram Bombardier Spyder
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
707000378 Moteur *engine |
707000378 |
US $12,414.57 |
||
|
2
|
2
207006044 Screw-hex.cap iso.4014 |
207006044 |
US $10.65 |
||
|
3
|
3
233201416 Nut-flange elastic din.6926 |
233201416 |
US $25.30 |
||
|
4
|
4
233201416 Nut-flange elastic din.6926 |
233201416 |
US $25.30 |
||
|
5
|
5
210261280 Screw-forming hex.hd.fl.gm6174m |
210261280 |
US $1.79 |
||
|
6
|
6
707000609 Bloc indexation*block indexing |
707000609 |
US $9.13 |
||
|
7
|
7
233261414 Nut-flange elastic din.6926 |
233261414 |
US $20.10 |
||
|
8
|
8
707000610 Plaque fix. *plate-fix. |
707000610 |
US $6.07 |
||
|
9
|
9
707000607
Cable accelerat*cable-throttle
|
707000607 |
— | ||
|
10
|
10
707000608 Cable accelerat*cable-throttle |
707000608 |
US $80.55 |
||
|
11
|
11
250000145 Torx-truss m/s gm6047m |
250000145 |
US $1.90 |
||
| replacement | |||||
|
11
|
11
250000742 TORX-TRUSS M/S M5 X 14 NYLON |
250000742 |
US $1.89 |
||
|
12
|
12
707000381
Levier *clutch lever.
Includes 12 to 16; |
707000381 |
— | ||
|
13
|
13
219400068
Interrupteur *clutch switch
|
219400068 |
— | ||
|
14
|
14
707000623 Levier ass *lever assy |
707000623 |
US $95.85 |
||
|
15
|
15
707000616 Couv r+servoir *reserv cover |
707000616 |
US $18.33 |
||
|
16
|
16
250000342 Vis 8-32 *screw type 8-32 |
250000342 |
US $3.11 |
||
|
17
|
17
707000386 Lever pt *lever pt |
707000386 |
US $39.73 |
||
|
18
|
18
207662044 Screw-hex.flange din.6921 |
207662044 |
US $65 |
||
|
19
|
19
707000455 Tige ajus *adjus rod |
707000455 |
US $32.15 |
||
|
20
|
20
707000456 Embout *pedal end |
707000456 |
US $9.13 |
||
|
21
|
21
278001166 Protect.module *protect-module |
278001166 |
US $10.47 |
||
|
22
|
22
414227300 Clip - spring |
414227300 |
US $20.70 |
||
|
23
|
23
420251560
Support *support
|
420251560 |
— | ||
|
24
|
24
207661644 Screw-hex.flange din.6921 |
207661644 |
US $23.75 |
||
|
25
|
25
707000400 Cable renverse.*cable-reverse |
707000400 |
US $68.29 |
||
|
26
|
26
707000484 Boyau 11.1mm. *hose-11.1mm. |
707000484 |
US $19.33 |
||
|
27
|
27
707000485 Bride a ressort*clamp-spring |
707000485 |
US $4.05 |
||
|
28
|
28
707000510 Support gauche *lh. support |
707000510 |
US $18.33 |
||
|
29
|
29
707000512 Support droit *rh.support |
707000512 |
US $18.33 |
||
|
30
|
30
250000286 Screw-hex.flange din.6921 |
250000286 |
US $13.87 |
||
|
31
|
31
707000516
Tampon *rubber mount
|
707000516 |
— | ||
|
32
|
32
512056700 Rondelle-frein *washer-lock |
512056700 |
US $20.50 |
||
|
33
|
33
233201416 Nut-flange elastic din.6926 |
233201416 |
US $25.30 |
||
|
34
|
34
707000452 Sup mot av pe *fr eng sup p |
707000452 |
US $13.60 |
||
|
35
|
35
707000441
Tampon ancrage *mount-rubber
|
707000441 |
— | ||
|
36
|
36
233201416 Nut-flange elastic din.6926 |
233201416 |
US $25.30 |
||
|
37
|
37
205002544 Screw-socket hd.din 912 |
205002544 |
US $19.20 |
||
|
38
|
38
230602546 Screw-hex.flange din.6921 |
230602546 |
US $9.40 |
||
|
39
|
39
233201416 Nut-flange elastic din.6926 |
233201416 |
US $25.30 |
||
|
40
|
40
207682044 Screw-hex.flange din.6921 |
207682044 |
US $14.80 |
||
|
41
|
41
293600041
Lubrifiant cabl*lub-cable
|
293600041 |
— | ||
|
42
|
42
293600041
Lubrifiant cabl*lub-cable
|
293600041 |
— | ||
|
43
|
43
293600041
Lubrifiant cabl*lub-cable
|
293600041 |
— | ||
|
44
|
44
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
45
|
45
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
46
|
46
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
47
|
47
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
48
|
48
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
49
|
49
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
50
|
50
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
51
|
51
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
52
|
52
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
53
|
53
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
54
|
54
414227300 Clip - spring |
414227300 |
US $20.70 |
||
