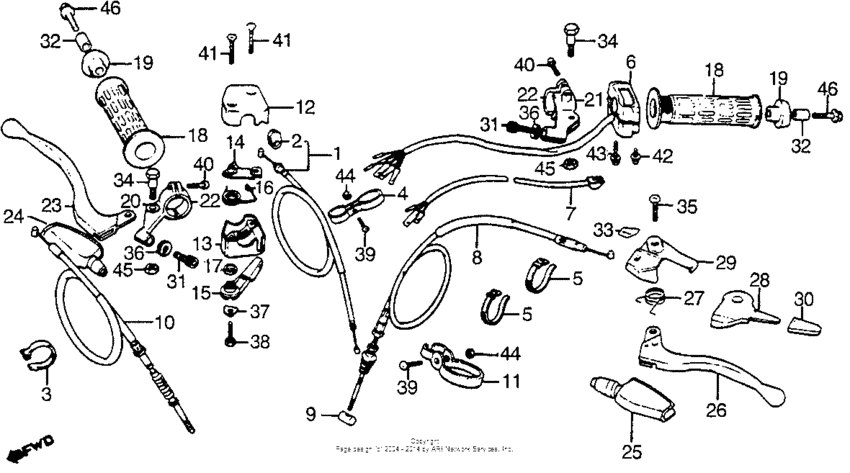

Control levers + cables + swtiches Diagram Honda ATC ATC125
- Model code
- ATC125M A
- Engine Capacity
- 125
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TE010*FC100001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17910-968-000
Cable, throttle
|
17910-968-000 |
— | ||
|
2
|
2
17913-958-300
Grommet
|
17913-958-300 |
— | ||
|
3
|
3
17914-958-010
Band, throttle cable
|
17914-958-010 |
— | ||
|
4
|
4
17916-958-000
Guide
|
17916-958-000 |
— | ||
|
5
|
5
32161-404-000 Band b1, wire |
32161-404-000 |
from US $1.78 |
||
|
6
|
6
35200-VM6-000
Switch assy
|
35200-VM6-000 |
— | ||
|
7
|
7
35250-958-681
Switch, starting
|
35250-958-681 |
— | ||
|
8
|
8
43460-968-000
Cable, brake
|
43460-968-000 |
— | ||
|
9
|
9
43473-918-000
Joint, brake cable
|
43473-918-000 |
— | ||
|
10
|
10
45450-968-000
Cable, fr. brake
|
45450-968-000 |
— | ||
|
11
|
11
45467-968-000
Guide, brake cable
|
45467-968-000 |
— | ||
|
12
|
12
53141-958-000
Cover, throttle
|
53141-958-000 |
— | ||
|
13
|
13
53142-958-000
Case, throttle
|
53142-958-000 |
— | ||
|
14
|
14
53144-943-010
Arm, throttle
|
53144-943-010 |
— | ||
|
15
|
15
53145-957-000
Control lever
|
53145-957-000 |
— | ||
|
16
|
16
53146-943-000
Spring
|
53146-943-000 |
— | ||
|
17
|
17
53148-957-003
Bush, throttle lever
|
53148-957-003 |
— | ||
|
18
|
18
53166-943-000
Grip, handlebar
|
53166-943-000 |
— | ||
|
19
|
19
53167-958-680 Guard, handlebar end |
53167-958-680 |
from US $2.97 |
||
|
20
|
20
53171-VM4-680
Bracket, r
|
53171-VM4-680 |
— | ||
|
21
|
21
53172-969-680
Bracket
|
53172-969-680 |
— | ||
|
22
|
22
53173-958-000 Holder |
53173-958-000 |
from US $10.21 |
||
|
23
|
23
53175-VM6-000
Lever, r. handlebar
|
53175-VM6-000 |
— | ||
|
24
|
24
53176-VM6-000
Cvr, r. handle lever
|
53176-VM6-000 |
— | ||
|
25
|
25
53177-969-680
Cover, l. handlebar
|
53177-969-680 |
— | ||
|
26
|
26
53178-969-680 Lever, l. handlebar |
53178-969-680 |
from US $25.70 |
||
| replacement | |||||
|
26
|
26
53178-HP2-305 Lever, l. handlebar |
53178-HP2-305 |
US $26.61 |
||
|
27
|
27
53191-961-010 Spring |
53191-961-010 |
from US $2.89 |
||
|
28
|
28
53192-HA0-770
Lever, parking lock
|
53192-HA0-770 |
— | ||
|
30
|
30
53193-HA0-770 Cap, parking lever |
53193-HA0-770 |
from US $3.02 |
||
|
31
|
31
53193-968-000 Bolt, wire adjusting |
53193-968-000 |
from US $9.24 |
||
|
32
|
32
84906-118-000 Collar, number bracket setting |
84906-118-000 |
from US $2.66 |
||
|
34
|
34
90113-VM6-000
Bolt
|
90113-VM6-000 |
— | ||
|
35
|
35
90115-961-000 Screw |
90115-961-000 |
from US $2.37 |
||
|
36
|
36
90321-315-670 Nut, fixing |
90321-315-670 |
from US $6.07 |
||
|
37
|
37
90501-957-000
Washer, lock (5mm)
|
90501-957-000 |
— | ||
|
38
|
38
92101-05022-0A Bolt, hex., 5x22 |
92101-05022-0A |
from US $0.44 |
||
|
39
|
39
93500-040200A Screw, pan, 4x20 |
93500-040200A |
from US $0.32 |
||
|
40
|
40
93500-050180A Screw, pan, 5x18 |
93500-050180A |
from US $0.37 |
||
|
41
|
41
93700-050220B Screw, oval (5x22) |
93700-050220B |
from US $0.59 |
||
|
42
|
42
93892-0502007 Screw-washer (5x20) |
93892-0502007 |
from US $0.44 |
||
|
43
|
43
93892-0504007 Screw-washer (5x40) |
93892-0504007 |
US $0.52 |
||
|
44
|
44
94001-040-000-S NutHEX., 4MM |
94001-040-000-S |
from US $0.37 |
||
|
45
|
45
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
46
|
46
95701-060-250-7 BoltFLANGE, 6X25 |
95701-060-250-7 |
from US $0.59 |
||
