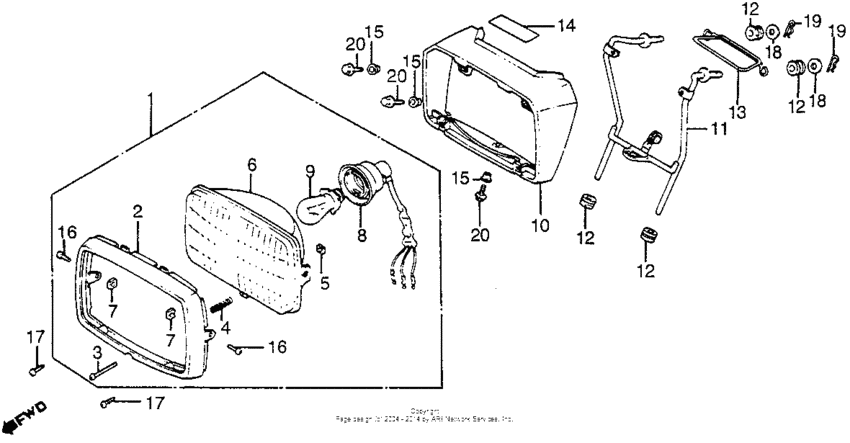

Headlight Diagram Honda ATC ATC125
- Model code
- ATC125M A
- Engine Capacity
- 125
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TE010*FC100001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-943-033
Headlight assy
|
33100-943-033 |
— | ||
|
2
|
2
33101-943-671
Rim, headlight
|
33101-943-671 |
— | ||
|
3
|
3
33103-346-670 Screw |
33103-346-670 |
US $10.06 |
||
| replacement | |||||
|
3
|
3
33103-MW3-610 Screw,beam adjust |
33103-MW3-610 |
from US $9.98 |
||
|
4
|
4
33107-300-003 Spring |
33107-300-003 |
from US $3.40 |
||
|
5
|
5
33117-001-023 Nut, headlight beam adjusting |
33117-001-023 |
from US $2.59 |
||
|
6
|
6
33120-943-671
Headlight unit
|
33120-943-671 |
— | ||
|
7
|
7
33128-471-003 Nut, unit holder |
33128-471-003 |
from US $2.22 |
||
|
8
|
8
33130-943-013
Socket, headlight
|
33130-943-013 |
— | ||
|
9
|
9
34901-HC3-003 Bulb (12v45/45w) |
34901-HC3-003 |
from US $6.94 |
||
|
10
|
10
61301-968-003ZA
Case *r109*
|
61301-968-003ZA |
— | ||
|
11
|
11
61310-968-680
Brkt, headlight case
|
61310-968-680 |
— | ||
|
12
|
12
61315-958-000
Rubber
|
61315-958-000 |
— | ||
|
13
|
13
61321-943-000
Holder, wire
|
61321-943-000 |
— | ||
|
14
|
14
87560-VM5-000
Mark, drive caution
|
87560-VM5-000 |
— | ||
|
15
|
15
90522-170-700 Collar, gearshift lever setting |
90522-170-700 |
from US $2.29 |
||
|
16
|
16
93500-050-100-H ScrewPAN, 5X10 |
93500-050-100-H |
from US $0.37 |
||
|
17
|
17
93901-24380 ScrewTAPPING, 4X12 |
93901-24380 |
from US $0.37 |
||
|
18
|
18
94101-08800 WasherPLAIN, 8MM |
94101-08800 |
from US $0.37 |
||
|
19
|
19
94251-08000 PinLOCK, 8MM |
94251-08000 |
from US $0.59 |
||
|
20
|
20
95701-060-160-0 BoltFLANGE, 6X16 |
95701-060-160-0 |
from US $0.52 |
||
