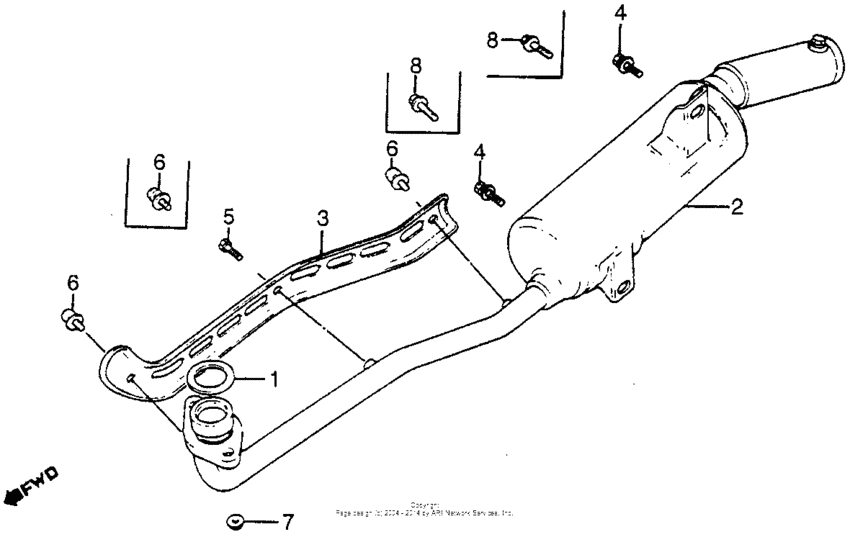

Muffler Diagram Honda ATC ATC125
- Model code
- ATC125M A
- Engine Capacity
- 125
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TE010*FC100001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18291-HB2-900 Gasket, ex. pipe |
18291-HB2-900 |
from US $5.48 |
||
|
2
|
2
18300-968-682
Muffler
Use up to Frame SN FC142190 |
18300-968-682 |
— | ||
|
3
|
3
18321-VM6-003
Protector, ex. pipe
|
18321-VM6-003 |
— | ||
|
4
|
4
90156-964-670
Bolt-washer (8x12)
|
90156-964-670 |
— | ||
|
5
|
5
92000-06008-08 BoltHEX., 6X8 |
92000-06008-08 |
from US $0.44 |
||
|
6
|
6
93893-060-100-8 Screw-washer6X10 |
93893-060-100-8 |
US $0.59 |
||
|
7
|
7
94001-060-800-S NutHEX., 6MM |
94001-060-800-S |
from US $0.44 |
