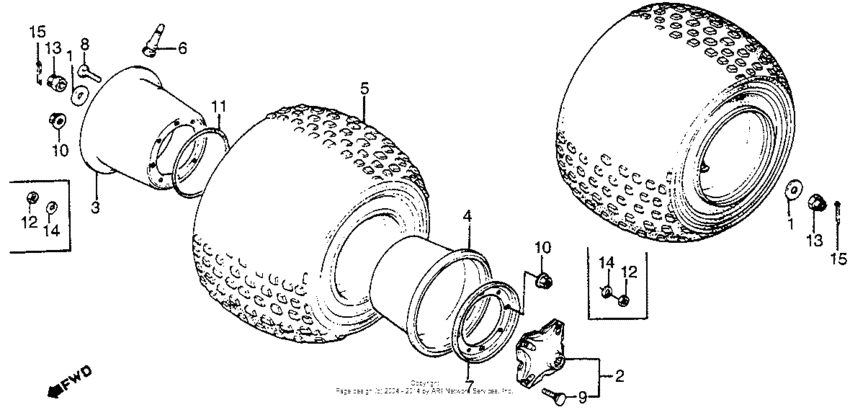

Rear wheel Diagram Honda ATC ATC125
- Model code
- ATC125M A
- Engine Capacity
- 125
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TE010*FC100001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42322-950-000 Washer, 14mm |
42322-950-000 |
US $6.68 |
||
|
2
|
2
42410-958-671
Hub, rr. wheel
|
42410-958-671 |
— | ||
|
3
|
3
42712-968-000
Rim (outer)
|
42712-968-000 |
— | ||
|
4
|
4
42713-968-000
Rim (inner)
|
42713-968-000 |
— | ||
|
5
|
5
42750-VM6-681
Tire (22x11-8 pa-3)
|
42750-VM6-681 |
— | ||
|
5
|
5
42751-961-811
Tire (22x11-8)
(Optional). |
42751-961-811 |
— | ||
|
6
|
6
42753-SB8-661 ValveRIM (SCHRADER) |
42753-SB8-661 |
US $27.50 |
||
|
7
|
7
44714-968-000
Patch, support plate
|
44714-968-000 |
— | ||
|
8
|
8
90101-942-000
Bolt, wheel
|
90101-942-000 |
— | ||
|
9
|
9
90103-943-300 Bolt, hub (8x25) |
90103-943-300 |
from US $6.79 |
||
|
10
|
10
90309-428-731 Nut, flange (self-lock) (m8x1.25) |
90309-428-731 |
from US $4.29 |
||
|
11
|
11
91351-958-670 O-ring (160x4.2) |
91351-958-670 |
from US $13.72 |
||
|
13
|
13
94011-140000S Nut, castle, 14mm |
94011-140000S |
from US $1.33 |
||
|
15
|
15
94201-30250 PinSPLIT, 3.0X25 |
94201-30250 |
from US $0.44 |
||
| replacement | |||||
|
15
|
15
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
15
|
15
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
