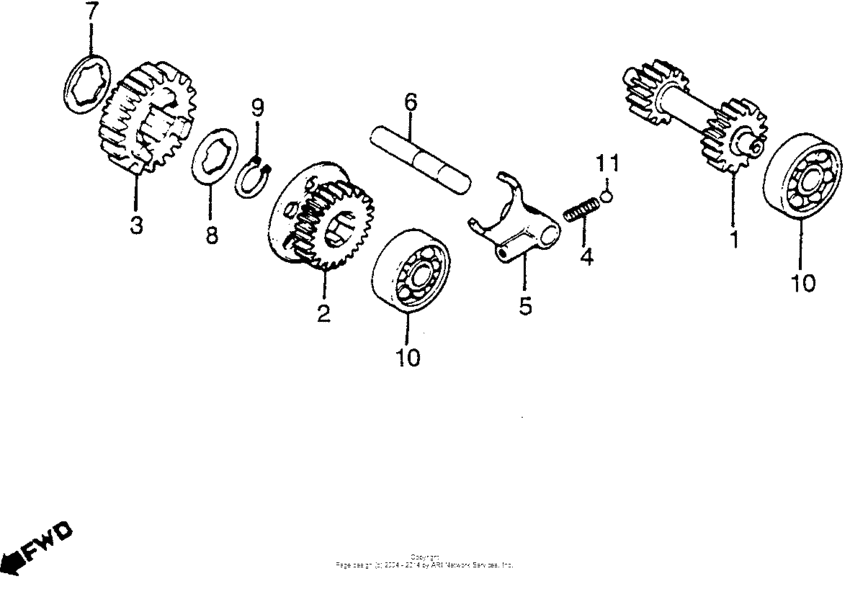

Sub-transmission Diagram Honda ATC ATC125
- Model code
- ATC125M A
- Engine Capacity
- 125
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TE010*FC100001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23911-968-000 Countershaft |
23911-968-000 |
US $82.16 |
||
|
2
|
2
23921-968-010
Gear, sub-trans low
|
23921-968-010 |
— | ||
|
3
|
3
23931-968-000
Gear
|
23931-968-000 |
— | ||
|
4
|
4
24271-968-000
Spring, ball setting
|
24271-968-000 |
— | ||
|
5
|
5
24801-459-770 Fork |
24801-459-770 |
US $30.55 |
||
|
6
|
6
24811-968-000 Shaft |
24811-968-000 |
US $9.83 |
||
|
7
|
7
90401-968-000 Washer (30mm) |
90401-968-000 |
US $7.67 |
||
|
8
|
8
90456-053-000 Washer (20mm) |
90456-053-000 |
US $2.22 |
||
|
9
|
9
94510-20000 CirclipEXTERNAL, 20MM |
94510-20000 |
from US $0.55 |
||
|
10
|
10
96100-6202000 Bearing, radial ball, 6202 |
96100-6202000 |
from US $4.88 |
||
|
11
|
11
96211-08000 Ball |
96211-08000 |
from US $0.13 |
