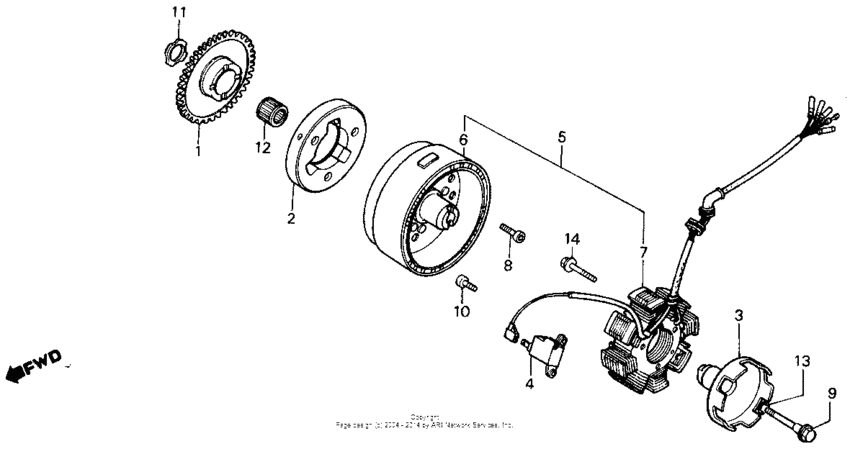

Alternator Diagram Honda ATC ATC125
- Model code
- ATC125M A
- Engine Capacity
- 125
- Year
- 1986
- Sales region
- USA
- Frame
- JH3TE010*GK200032 - JH3TE010*GK208552
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28110-HB6-000
Gr comp,strg div
|
28110-HB6-000 |
— | ||
|
2
|
2
28120-HB3-010
Clutch outer
|
28120-HB3-010 |
— | ||
|
3
|
3
28430-HB6-000
Pulley, recoil
|
28430-HB6-000 |
— | ||
|
4
|
4
30300-HA0-033 Generator assy., pulse (tec) |
30300-HA0-033 |
from US $22.45 |
||
|
5
|
5
31100-HB6-003
Ac gen assy
|
31100-HB6-003 |
— | ||
|
5
|
5
31100-HB6-004
Alternator assy.
|
31100-HB6-004 |
— | ||
|
6
|
6
31110-HB6-003
Flywheel
|
31110-HB6-003 |
— | ||
|
6
|
6
31110-HB6-004
Flywheel
|
31110-HB6-004 |
— | ||
|
7
|
7
31120-HB6-003
Stator Comp
|
31120-HB6-003 |
— | ||
|
7
|
7
31120-HB6-004
Stator
|
31120-HB6-004 |
— | ||
|
8
|
8
90010-KM1-000 Bolt, socket (8x18) |
90010-KM1-000 |
from US $3.48 |
||
|
9
|
9
90081-HB3-000 Bolt, special (8mm) |
90081-HB3-000 |
US $5.87 |
||
|
10
|
10
90089-HB3-000 Bolt, socket (5x14) |
90089-HB3-000 |
from US $1.92 |
||
|
11
|
11
90403-HB6-000
Washer,thrust
|
90403-HB6-000 |
— | ||
|
12
|
12
91021-689-902
Bearing (20x26x17)
|
91021-689-902 |
— | ||
|
13
|
13
91301-PC9-003 O-ring7.7X2.3 (ARAI) |
91301-PC9-003 |
from US $2.07 |
||
|
14
|
14
96001-060-280-0 BoltFLANGE, 6X28 |
96001-060-280-0 |
from US $0.74 |
