Crankcase Diagram Honda ATC ATC125
- Model code
- ATC125M A
- Engine Capacity
- 125
- Year
- 1986
- Sales region
- USA
- Frame
- JH3TE010*GK200032 - JH3TE010*GK208552
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC125
Difficulties in parts search?
Parts list
Difficulties in parts search?

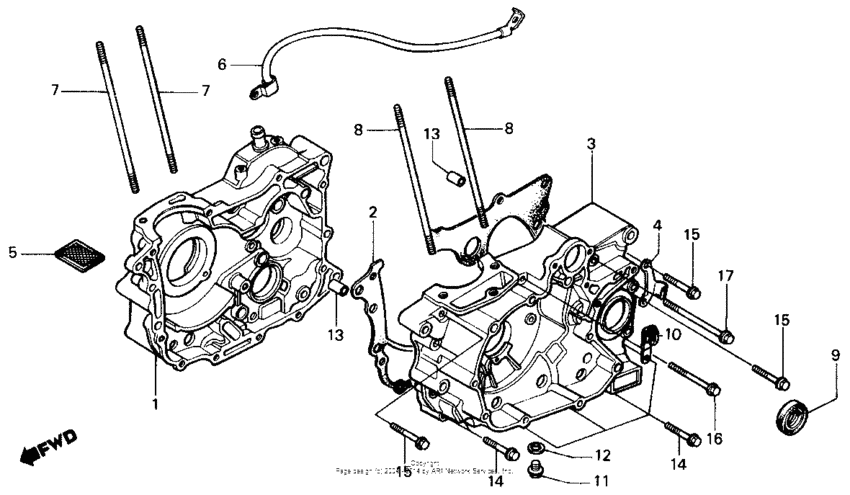

| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11100-HB6-010
Crankcase, r.
|
11100-HB6-010 |
— | ||
|
2
|
2
11191-HB6-306
Gasket, crankcase
|
11191-HB6-306 |
— | ||
|
3
|
3
11200-HB6-000
Crankcase, l.
|
11200-HB6-000 |
— | ||
|
4
|
4
11207-HC3-000
Clip, breather tube
Use up to Engine SN 2205202 |
11207-HC3-000 |
— | ||
|
5
|
5
15421-HB6-000
Screen,oil filter
|
15421-HB6-000 |
— | ||
|
6
|
6
32601-HB6-000
Cable
|
32601-HB6-000 |
— | ||
|
7
|
7
90031-427-010
Bolt a, cyl stud
|
90031-427-010 |
— | ||
|
8
|
8
90032-427-010 Bolt b, cyl stud |
90032-427-010 |
US $12.58 |
||
|
9
|
9
91206-HB3-003 Oil seal, 22x36x6 |
91206-HB3-003 |
from US $6.81 |
||
|
10
|
10
91405-671-000 ClipWIRE |
91405-671-000 |
from US $2.44 |
||
|
11
|
11
92800-12000 BoltDRAIN PLUG, 12MM |
92800-12000 |
from US $1.26 |
||
|
12
|
12
94109-12000 Washer, DRAIN PLUG, 12MM |
94109-12000 |
from US $0.98 |
||
|
13
|
13
94301-10140 Pin aDOWEL, 10X14 |
94301-10140 |
from US $1.04 |
||
|
14
|
14
96300-0604000 Bolt, flange (6x40) |
96300-0604000 |
from US $0.74 |
||
|
15
|
15
96300-060-500-0 Bolt,flange,dr 6x |
96300-060-500-0 |
US $0.81 |
||
|
16
|
16
96300-060-800-0
Bolt,flange,6x80
|
96300-060-800-0 |
— | ||
|
17
|
17
96300-061-100-0
Bolt, flange (6x110)
|
96300-061-100-0 |
— |
