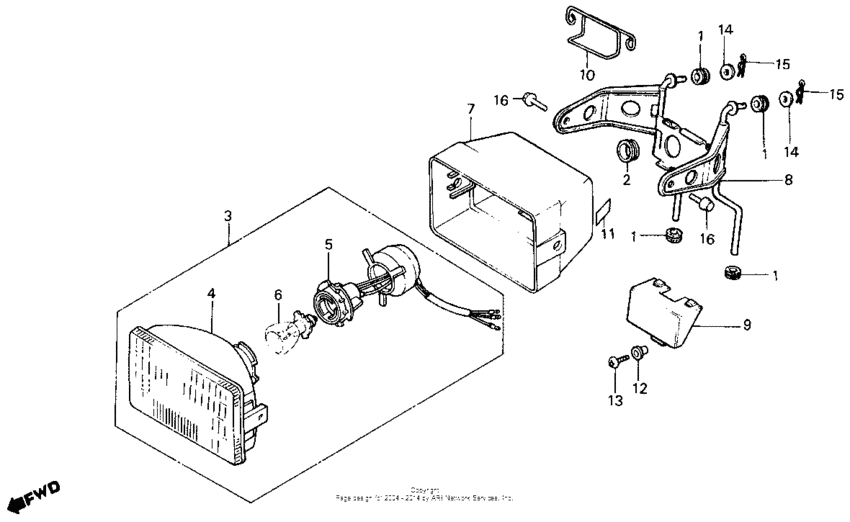

Headlight Diagram Honda ATC ATC125
- Model code
- ATC125M A
- Engine Capacity
- 125
- Year
- 1986
- Sales region
- USA
- Frame
- JH3TE010*GK200032 - JH3TE010*GK208552
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19038-ME9-000 Rubber |
19038-ME9-000 |
from US $2.44 |
||
|
2
|
2
32176-SA0-000
Grommet
|
32176-SA0-000 |
— | ||
|
3
|
3
33100-HB6-010
Light assy,head
Use up to Frame SN GK205386 |
33100-HB6-010 |
— | ||
|
4
|
4
33120-HB3-003
Unit comp head li
|
33120-HB3-003 |
— | ||
|
5
|
5
33130-HB6-000
Socket assy.,head
|
33130-HB6-000 |
— | ||
|
6
|
6
34901-HC3-003 Bulb (12v45/45w) |
34901-HC3-003 |
from US $6.94 |
||
|
7
|
7
61301-HB3-003ZA
Case,headl*r-109*
|
61301-HB3-003ZA |
— | ||
|
8
|
8
61311-HB6-670
Bracket comp.,hea
|
61311-HB6-670 |
— | ||
|
9
|
9
61314-HB6-000
Case,coupler
|
61314-HB6-000 |
— | ||
|
10
|
10
61321-HB6-000
Holder, wire
|
61321-HB6-000 |
— | ||
|
12
|
12
90402-GB0-900 Washer |
90402-GB0-900 |
from US $2.66 |
||
|
13
|
13
93500-060-120-A ScrewPAN, 6X12 |
93500-060-120-A |
from US $0.44 |
||
|
14
|
14
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
15
|
15
94251-06000 PinLOCK, 6MM |
94251-06000 |
from US $0.44 |
||
|
16
|
16
95700-0801600 Bolt, flange, 8x16 |
95700-0801600 |
US $1.80 |
||
| replacement | |||||
|
16
|
16
95701-0801600 Bolt, flange, 8x16 |
95701-0801600 |
from US $0.59 |
||
|
16
|
16
95701-0801600 Bolt, flange, 8x16 |
95701-0801600 |
from US $0.59 |
||
