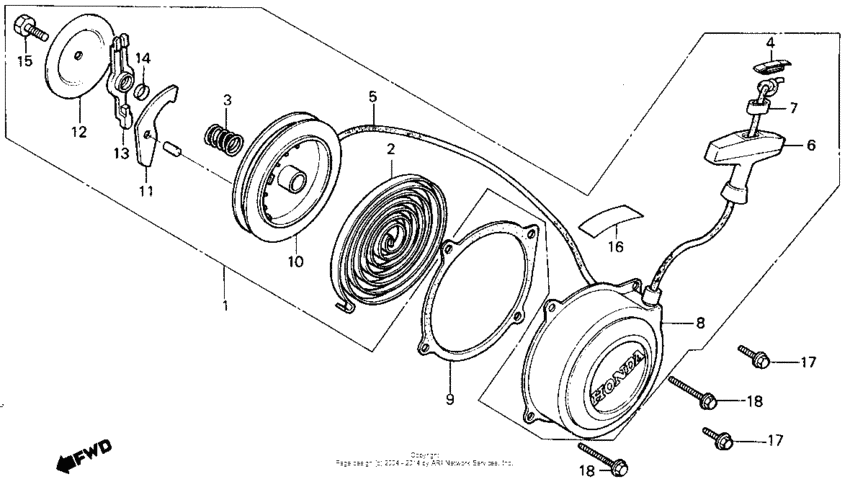

Recoil starter Diagram Honda ATC ATC125
- Model code
- ATC125M A
- Engine Capacity
- 125
- Year
- 1986
- Sales region
- USA
- Frame
- JH3TE010*GK200032 - JH3TE010*GK208552
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28400-HB6-024
Starter assy,reco
Use up to Engine SN 2201206 |
28400-HB6-024 |
— | ||
|
2
|
2
28402-HB6-004 Spring |
28402-HB6-004 |
from US $25.70 |
||
|
3
|
3
28404-968-004 Spring, friction |
28404-968-004 |
from US $3.18 |
||
|
4
|
4
28405-HB2-010
Knob cap
Use up to Engine SN 2201206 |
28405-HB2-010 |
— | ||
|
5
|
5
28407-HB6-004 Rope, recoil starter |
28407-HB6-004 |
US $19.87 |
||
|
6
|
6
28408-HB2-010
Knob starter
Use up to Engine SN 2201206 |
28408-HB2-010 |
— | ||
|
7
|
7
28409-918-000
Stopper,rope
|
28409-918-000 |
— | ||
|
8
|
8
28410-HB6-004
Case comp,rcil st
|
28410-HB6-004 |
— | ||
|
9
|
9
28411-HB6-306
Gasket, recoil start
|
28411-HB6-306 |
— | ||
|
10
|
10
28420-HB6-004
Reel, recoil starter
|
28420-HB6-004 |
— | ||
|
11
|
11
28422-ZE1-003 Ratchet, starter |
28422-ZE1-003 |
from US $4.14 |
||
|
12
|
12
28431-ZE1-003 Plate, friction |
28431-ZE1-003 |
US $8.16 |
||
|
13
|
13
28433-968-004
Guide, ratchet
|
28433-968-004 |
— | ||
|
14
|
14
28446-968-004 Cover, spring |
28446-968-004 |
from US $3.32 |
||
|
15
|
15
28448-HB6-004 Bolt |
28448-HB6-004 |
US $2.79 |
||
|
16
|
16
87103-VM5-000
Mark
|
87103-VM5-000 |
— | ||
|
17
|
17
96001-060-140-0 BoltFLANGE, 6X14 |
96001-060-140-0 |
from US $0.59 |
||
|
18
|
18
96001-060-650-0 BoltFLANGE, 6X65 |
96001-060-650-0 |
from US $0.89 |
